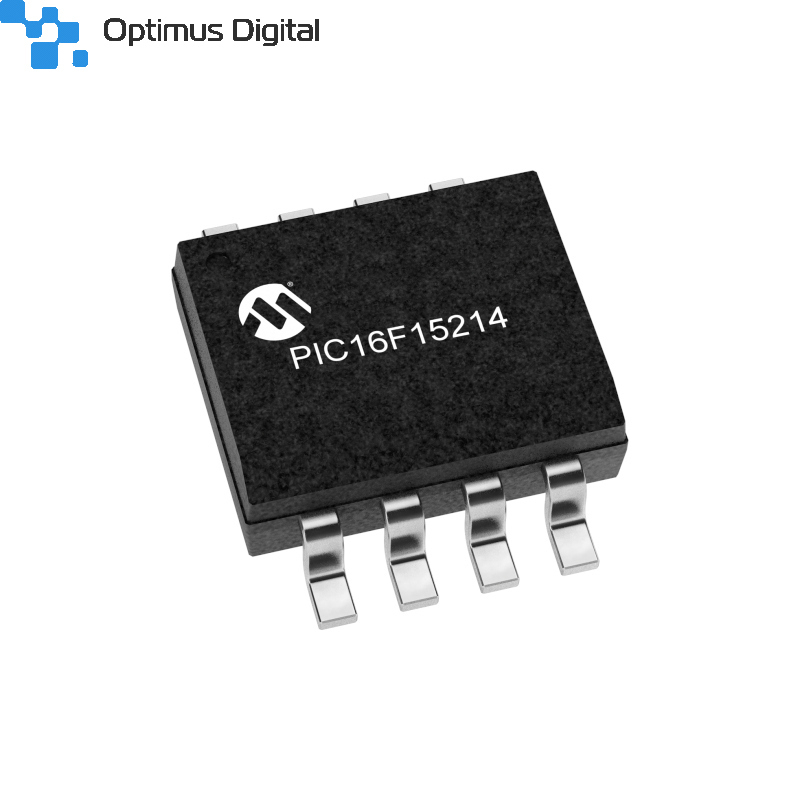

PIC16F15214-I/SN

Description

Code Examples on GitHub

The PIC16F152xx 8-bit product family features an essential peripheral set including key Core Independent Peripherals (CIPs), Intelligent Analog, and standard communication modules. Paired with it's ability for eXtreme Low-Power, this family is particularly well-suited for a wide range of low-power applications. Included in the feature set are multiple PWMs, various communication peripherals, an internal temperature sensor, and memory features like a Memory Access Partition (MAP) and Device Information Area (DIA). These product will be offered in a broad selection of packages and pin counts from 8 to 44(40)-pins, to support customers in a variety of applications.

Additional Features

Enhanced Mid-range Core with 49 Instructions, 16 Stack Levels

Flash Program Memory with Self Read/Write Capability

Low Power and System Flexibility

• eXtreme Low Power (XLP)
• Peripheral Pin Select (PPS)

Communication

• EUSART(UART)
• MSSP(SPI/I2C)

Intelligent Analog

• 12 Channel 10-bit ADC with Voltage Reference (ADC)

Timing and Measurement

• 1x 8/16-bit Timer (TMR0)
• 1x 16-bit Timer (TMR1)
• 1x 8-bit Timer (TMR2)

Waveform Control

• 2x 10-bit PWMs
• 2x Capture, Compare, PWM (CCP)

Safety and Monitoring

• Watchdog Timer (WDT)
• Enhanced Power-On/Off-Reset
• Programmable Brown-Out Reset (BOR) with fast recovery

Parametrics
