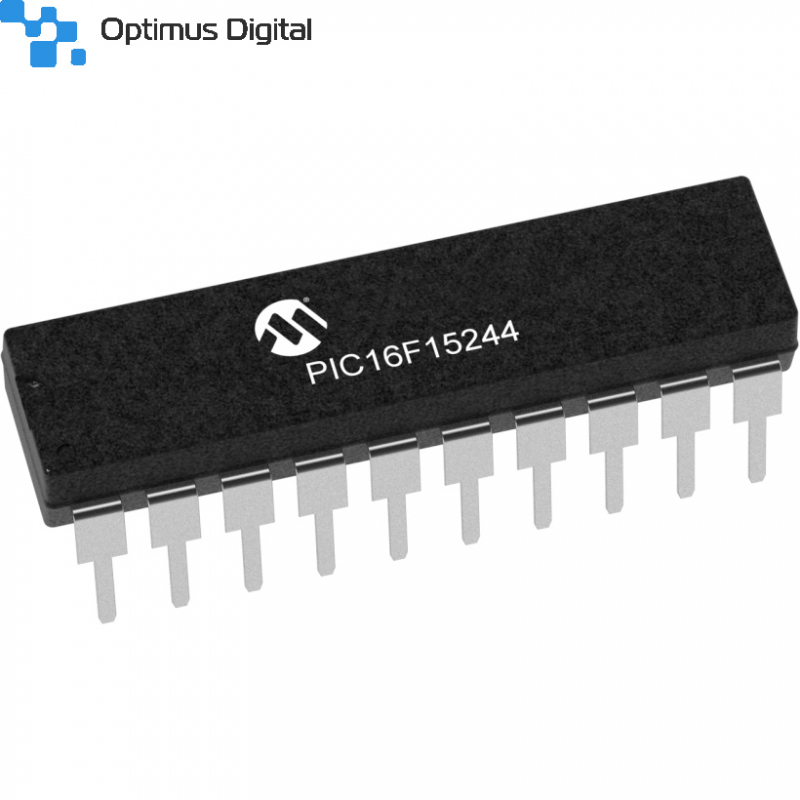

The PIC16F152xx 8-bit product family features an essential peripheral set including key Core Independent Peripherals (CIPs), Intelligent Analog, and standard communication modules. Paired with it's ability for eXtreme Low-Power, this family is particularly well-suited for a wide range of low-power applications. Included in the feature set are multiple PWMs, various communication peripherals, an internal temperature sensor, and memory features like a Memory Access Partition (MAP) and Device Information Area (DIA). These product will be offered in a broad selection of packages and pin counts from 8 to 44(40)-pins, to support customers in a variety of applications.
Enhanced Mid-range Core with 49 Instructions, 16 Stack Levels
Flash Program Memory with Self Read/Write Capability
Low Power and System Flexibility
Name | Value |
---|---|
Program Memory Type | Flash |
Program Memory Size (KB) | 7 |
CPU Speed (MIPS/DMIPS) | 8 |
SRAM (B) | 512 |
Digital Communication Peripherals | 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C) |
Capture/Compare/PWM Peripherals | 2 CCP, |
Timers | 1 x 8-bit, 2 x 16-bit |
ADC Input | 12 ch, 10-bit |
Temperature Range (°C) | -40 to 125 |
Operating Voltage Range (V) | 1.8 to 5.5 |
Pin Count | 20 |
Low Power | Yes |
