> >PCT-223-12 Stationary Type, Quick Connection Terminal
PCT-223-12 Stationary Type, Quick Connection Terminal View larger
Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

PCT-223-12 Stationary Type, Quick Connection Terminal

0104110000084385

New product

  1. Model: PCT-223-12
  2. Rated Voltage: 600V
  3. Rated Impulse Voltage: 4KV
  4. Material of Insulation: Modified Nylon (PA66)
  5. Color: Grey+Orange
  6. Rated Current: 32A
  7. Gauge: 28~12AWG


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$7.20
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description

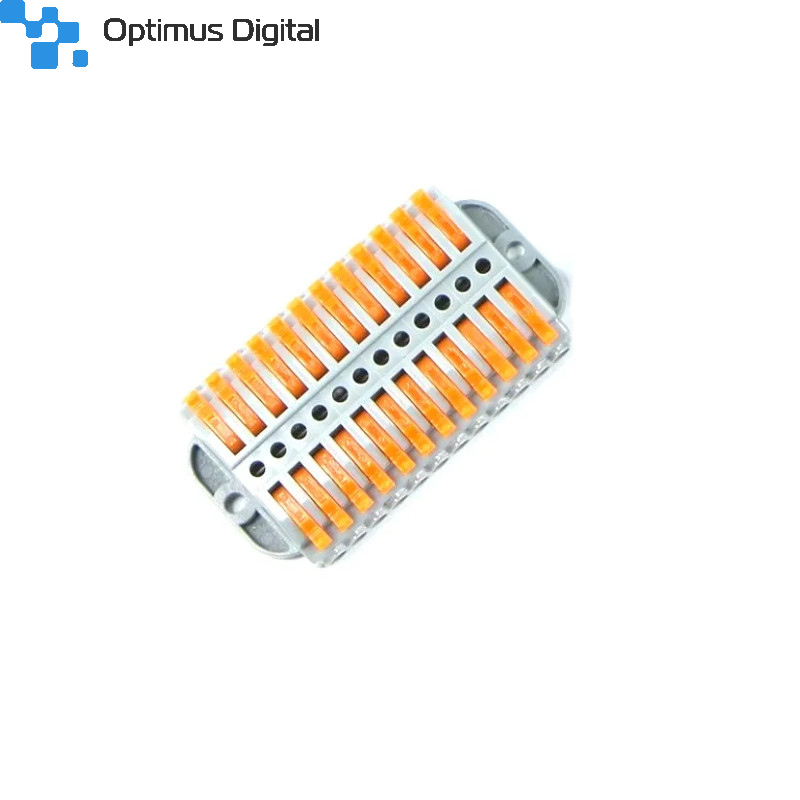

This is a PCT-223-12 0.08-2.5mm2 12 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 4mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 600V with an electric current peak of 32A.


Features

  1. High-grade Insulative Nylon Material
  2. Strong Spring Locking Lever
  3. Nickel Plated Metal Point Inside
  4. Good Temperature Resistance
  5. Compact Splicing Connector
  6. 12-Conductor Terminal Block
  7. With Operating Levers
  8. Max. Continuous Service Temperature 85oC


Specifications

  1. Rated voltage: 400V
  2. Rated current: 32A
  3. Number of poles: 12
  4. Wire section: 0.08~4.0mm2
  5. Number of clamps: 24


Package Includes

1 x PCT-223-12 Stationary Type, Quick Connection Terminal
