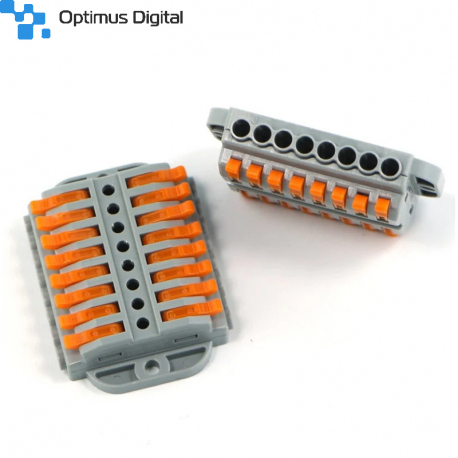

PCT-223-8 Stationary Type, Quick Connection Terminal

Description

This is a PCT-223-8 0.08-2.5mm2 8 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection. PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 4mm² area or soft wire with 0.08mm to 4.0mm² area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 600V with an electric current peak of 32A.

Features

1. High-grade Insulative Nylon Material
2. Strong Spring Locking Lever
3. Nickel Plated Metal Point Inside
4. Good Temperature Resistance
5. Compact Splicing Connector
6. 8-Conductor Terminal Block
7. With Operating Levers
8. Max. Continuous Service Temperature 85^oC

Specifications

• Model: PCT-223-8
• Rated Voltage (V): 600
• Rated Current (A): 32
• Body Material: Modified Nylon (PA66)
• Contact Material: Stainless Steel
• No. of Contact Points: 8
• Allowed Wire Size (AWG): 28 ~ 12
• Color: Grey+Orange
• Operating Temperature Range (^oC): -20 to 80

Package Includes

1 x PCT-223-8 Stationary Type Quick Connection Terminal
