> >>>Neodymium Disc Magnet 16X8 Thick N38
Sale! Neodymium Disc Magnet 16X8 Thick N38 View larger
Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

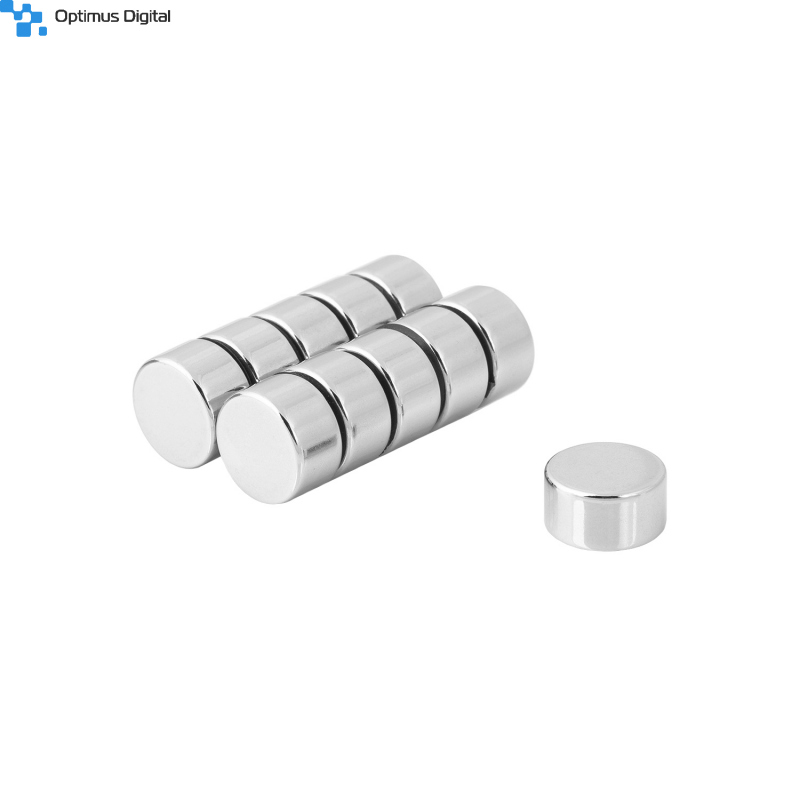

Neodymium Disc Magnet 16X8 Thick N38

0104210000066869

New product

Neodymium Disc Magnet 16X8 Thick N38


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$2.16
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Magnet parameters:

• diameter: 16 mm (±0.1 mm)

• height: 8 mm (±0.1 mm)

• weight of the magnet: ~11.8 g

• material: Neodym

• direction of magnetisation: axial, along the height

• max. working temperature: 80oC.

• coating: Ni + Cu + Ni

• strength: ~6.1 kg

Magnetic properties of N38 material:

• remanence Br: 1.22-1.25 [T]; 12.2-12.5 [kGs]

• coercivity Hcb: ≥899 [kA/m]; ≥11.3[kOe]

• coercivity HcJ: ≥955 [kA/m]; ≥12 [kOe]

• energy density (BH) max: ≥287-310 [kJ/m3]; 36-39 [MGOe]

• magnetic induction on the surface of the magnet is: ~0.418 [T]


Don't delay. Buy today.
