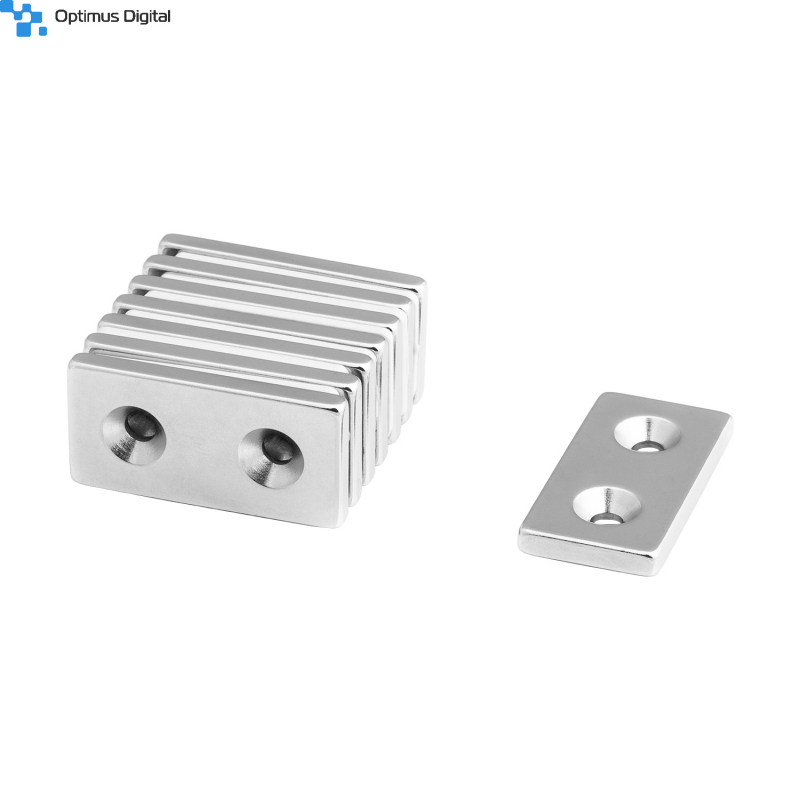

Block Magnet 40x20x4 with Countersunk Borehole
See description for more details about the product.
Add to cart now!
3 Item Items
Warning: Last items in stock!
Availability date:
• length: 40 mm (±0.1 mm)
• width: 20 mm (±0.1 mm)
• height: 4 mm (±0.1 mm)
• countersink: 8 mm (±0.1 mm)
• borehole: 4 mm (±0.1 mm)
• phase angle: 90o
• material: Neodym NdFeB
• direction of magnetization: along the height
• maximum temperature: 80oC.
• coating: Ni + Cu + Ni
• remanence Br: 1.22-1.25 [T]; 12.2-12.5 [kGs]
• coercivity Hcb: ≥899 [kA/m]; ≥11.3[kOe]
• coercivity HcJ: ≥955 [kA/m]; ≥12 [kOe]
• energy density (BH) max: ≥287-310 [kJ/m3]; 36-39 [MGOe]
