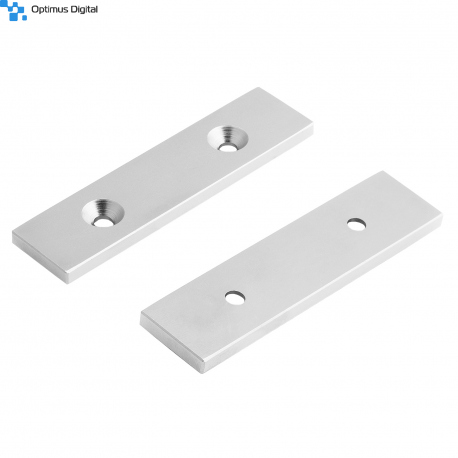

Block Magnet 80x20x4 with Countersunk Borehole

Magnet parameters:

• length: 80 mm (±0.1 mm)

• width: 20 mm (±0.1 mm)

• height: 4 mm (±0.1 mm)

• countersink: 9 mm (±0.1 mm)

• borehole: 4.5 mm (±0.1 mm)

• phase angle: 90°

• material: Neodym NdFeB

• direction of magnetization: along the height

• maximum temperature: 80^oC.

• coating: Ni + Cu + Ni

Magnetic properties of N38 material:

• remanence Br: 1.22-1.25 [T]; 12.2-12.5 [kGs]

• coercivity Hcb: ≥899 [kA/m]; ≥11.3[kOe]

• coercivity HcJ: ≥955 [kA/m]; ≥12 [kOe]

• energy density (BH) max: ≥287-310 [kJ/m3]; 36-39 [MGOe]
