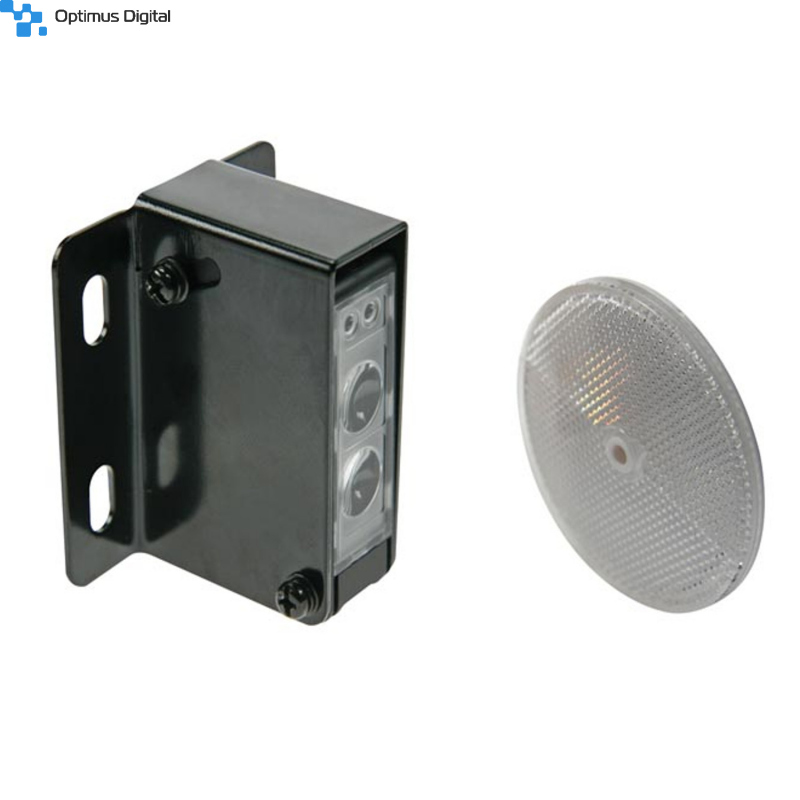

Photoelectric Beam Sensor, Retro Reflection - PEM10D

Features

• Universal AC/DC input voltage
• N.O. output
• ±1.8m of cable
• Mounting bracket/screws included

Specifications

• Detection method: retro-reflection
• Sensing range: 10m
• Input voltage: AC/DC 12~250V ± 10%
• Response time: 5 - 100ms
• Emitting element: IR LED
• Operation indicator: yellow LED (turn on when beam is broken)
• Dimensions: 20 x 39 x 63mm
• Current consumption: ±50mA
• Output method: relay output
• Contact current: 1A/250VAC
• Illumination:
  • lamplight: < 10000lux
  • sunlight: < 30000lux
• Connection method: multicore cable (brown/blue/white/black/grey)
• Noise resistance: 1500Vpp/1µs
• Housing material:
  • case: PC
  • lens: PC
• Operating temperature: -10^o to +55^oC
• IP rating: IP44
