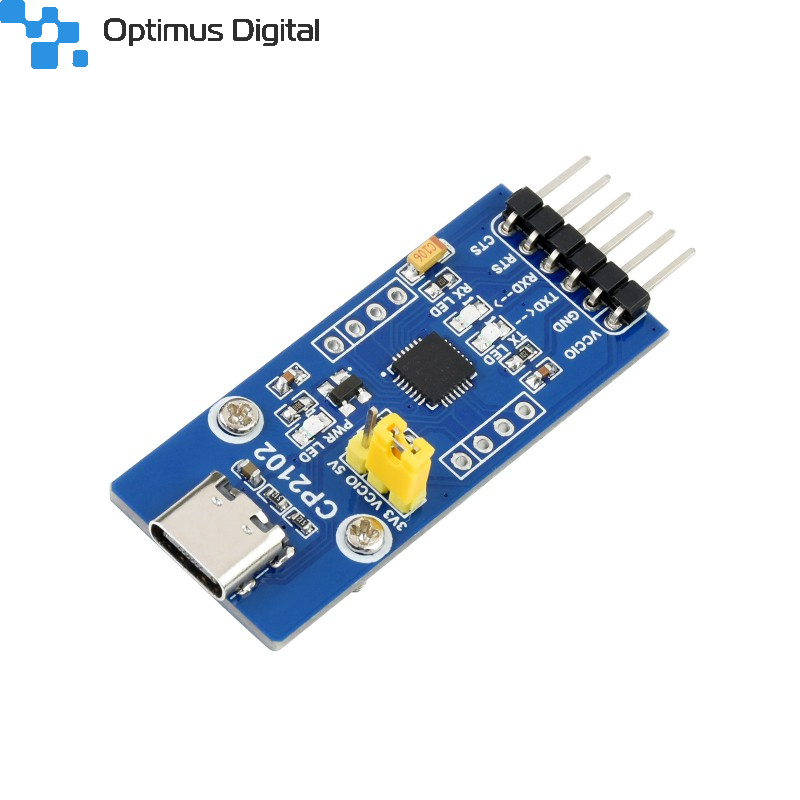

CP2102 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector

DESCRIPTION

CP2102 USB-C To UART Module

Adopts CP2102, Compatible With 3.3V Logic Level

Features At A Glance

• Supports Mac OS, Linux, Android, WinCE, Windows 7/8/10/11...
• Voltage output support: 5V or 3.3V
• Integrated USB protection device: SP0503

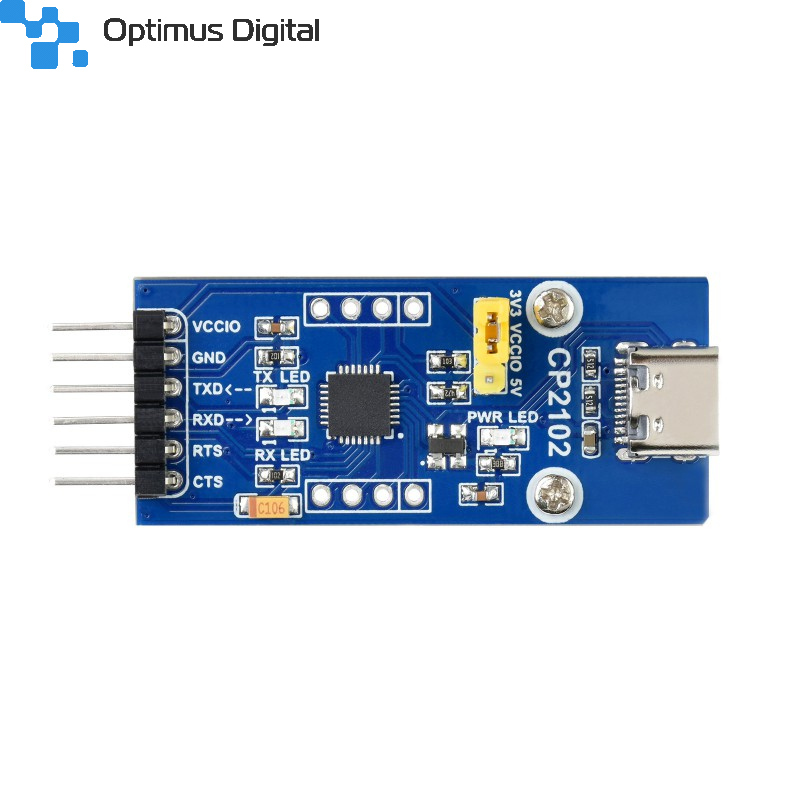

• 3x LED indicators: TXD LED, RXD LED, POWER LED
• Pins accessible on pinheaders: TXD, RXD, RTS, CTS

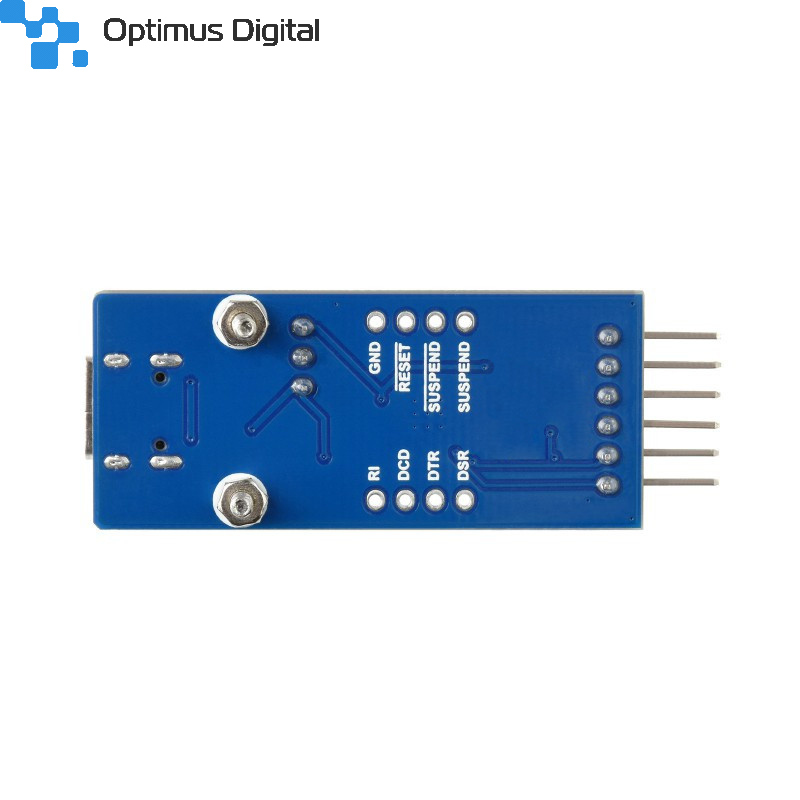

• Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)

CP2102 Solution

• Single-Chip USB to UART Data Transfer
• No external resistors required, no external crystal required
• On-chip power-on reset circuit and voltage regulator
• Integrated 1024-Byte EEPROM
• USB Function Controller
• USB Specification 2.0 compliant; full-speed (12 Mbps)
• USB suspend state, supported via SUSPEND pins
• UART
• All handshaking and modem interface signals
• Data formats:
• Data bits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: odd, even, no parity
• Baudrates: 300bps to 1Mbps
• 576 byte receiving buffer; 640 byte transmitting buffer
• Hardware or X-On/X-Off handshaking support
• Event character support
• Virtual COM Port Device Drivers
• Windows 8/7/Vista/Server 2003/XP/2000
• MAC OS-X/OS-9
• Linux 2.40 or higher
• USBXpress Direct Driver Support
• Windows 7/Vista/Server 2003/XP/2000
• Windows CE
• Temperature Range
• -40 to +85^oC

Hardware Connection

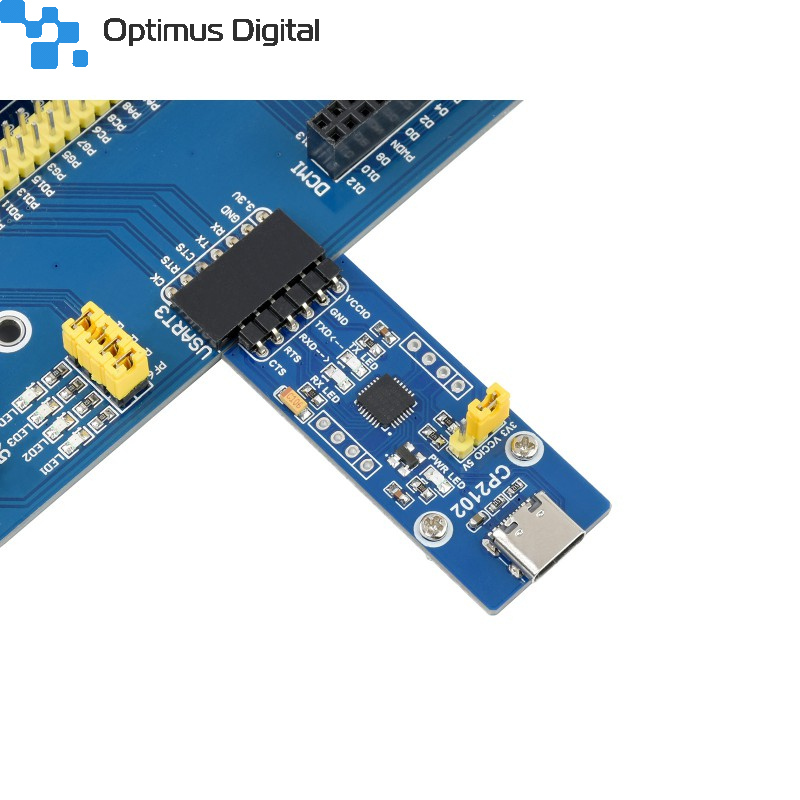

In The Case Of Working With MCU

• VCCIO: 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
• GND: connects to GND
• TXD: connects to MCU.RX (signal direction: MCU.RX << CP2102 << PC.TX)
• RXD: connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)
• RTS: connects to MCU.CTS (signal direction: MCU.CTS << CP2102 << PC.RTS)
• CTS: connects to MCU.RTS (signal direction: MCU.RTS >> CP2102 >> PC.CTS)

CAUTION: the module is compatible with TTL level ONLY, to avoiding any damage, please DON'T direct connect it to RS232 circuit.

Outline Dimensions

PACKAGE CONTENT

Weight: 0.011 kg

1. CP2102 USB UART Board (Type C) x1
2. 6-pin custom connector jumper wire x1
3. 4-pin male pinheader & 4-pin female pinheader x2
