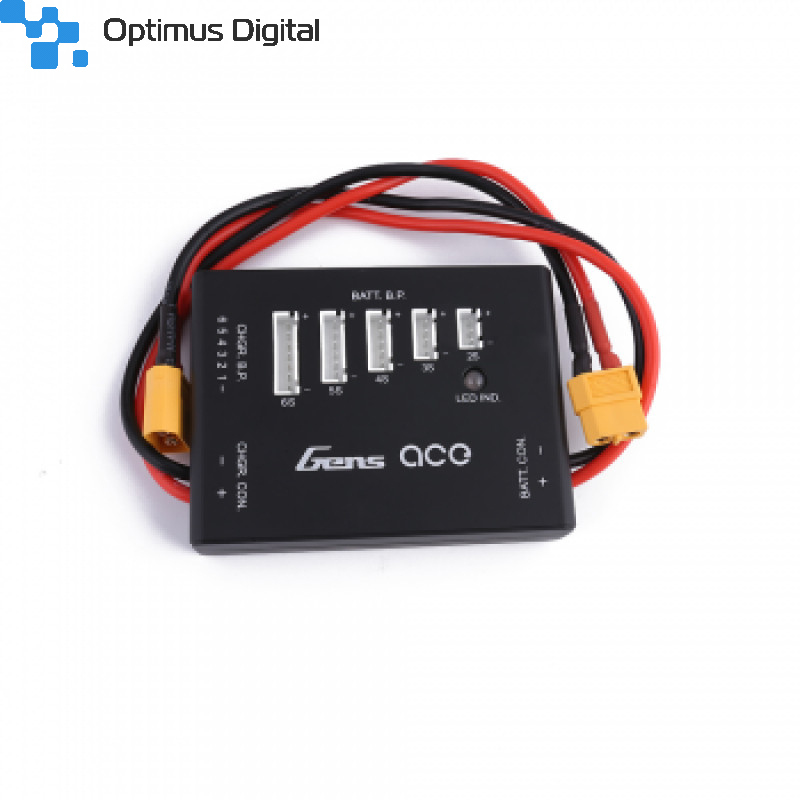

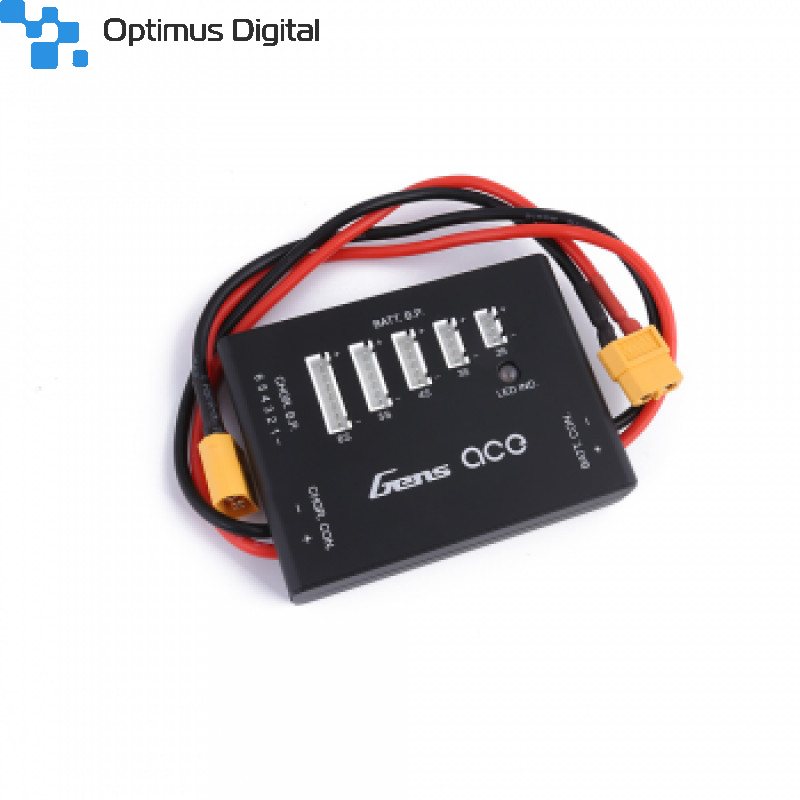

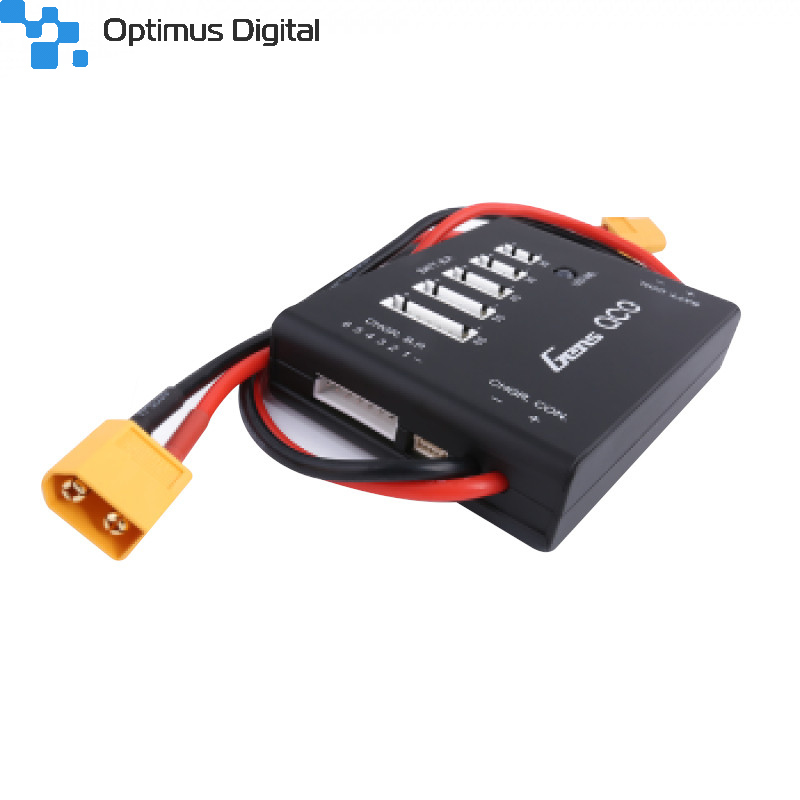

Gens ace Charging Safeguard for 2S-6S Lipo Battery Charger Protector

6928493356845

New product

Gens Ace Charging Safeguard 6S Charger Protector features auto shut-off safety charger adapter connector is designed for 2S-6S (nominal voltage 3.7V/cell) Lithium Polymer battery pack. It has several functions that allow for safe charging of a LiPo battery pack.


See Description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$35.76
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description




Gens ace Charging Safeguard for 2S-6S Lipo Battery Charger Protector

Gens Ace Charging Safeguard 6S Charger Protector features auto shut-off safety charger adapter connector is designed for 2S-6S (nominal voltage 3.7V/cell) Lithium Polymer battery pack. It has several functions that allow for safe charging of a LiPo battery pack.


Spec

  • Net Weight: 88g;
  • Dimensions: 88mm Length x 65mm Width x 20mm Height
  • Input Volatge: DC5V-30V
  • Input Current: Max 30A
  • Output Volatge: DC5V-25.8V
  • Output Current: Max 30A


Features

  1. Over-voltage Protection:
    When charging, if the Charging Safeguard detects that the voltage of a single cell is 4.3V or over and the voltage lasts more than 2 seconds, it will automatically stop charging and the Yellow LED will activate. Please disconnect and reconnect to resume use of the Charging Safeguard.
  2. Over-current Protection:
    When charging, if the Charging Safeguard detects that the charging current is over 30A and the current lasts more than 1 second, it will automatically stop charging and Yellow LED will activate. Please disconnect and reconnect to resume use of the Charging Safeguard.
  3. High Temperature Protection:
    When charging, if the internal temperature of the Charging Safeguard is over 70℃, it will automatically stop charging and the yellow LED will activate. To resume charging, please cool down the Charging Safeguard and battery if required. Please disconnect and reconnect the battery to resume charging.
  4. Battery Checking:
    When charging, if the voltage of any single cell is lower than 2.5V. The Red LED will start blinking and the charging will be stopped. The voltage of the battery is dangerously low. DO NOT use this battery pack under any circumstances. Safely and properly dispose of this damaged battery pack immediately.
  5. Abnormal Detection:
    If the Safeguard detects anything abnormal, the Red LED will activate which means the Safeguard is malfunctioning. Please contact info@gensace.com for assistance.
  6. Auto Sleep Mode:
    When connecting the Charging Safeguard to the battery, the indicator LED will deactivate and the Safeguard will automatically start Sleep Mode if charging does not begin within 30 minutes. Please disconnect and reconnect the battery to exit Sleep Mode./li>
  7. LED Indicator:
    If the Green LED is active, the Charging Safeguard works properly.
    If the Yellow LED is active, the protection feature is activated.
    If the Red LED is active, the Charging Safeguard is malfunctioning
    If the Red Led is blinking, the battery pack is defective and unable to be charged.


HOW TO USE

Connect the main lead and balance connector of the BATTERY to the output of Safeguard. If the Green LED is active, then connect the main lead and balance connector of the CHARGER to the input of the Safeguard. Make sure the connections and indicator LED are correct then begin charging the battery. If there are any abnormalities please stop charging immediately. To resume charging, please troubleshoot all problems and restart the charging procedure.


ATTENTION

Don't reverse connector polarity.
Don't short any connectors together.
Don't leave this product unattended while charging. Stop using the Safeguard if you find anything abnormal.
Don't charge any battery that is not in the correct voltage range.
USE with Lithium polymer batteries ONLY. DO NOT use any other battery chemistry with Charging Safeguard.
Keep Charging Safeguard away from dust, humidity, rain and heat sources. Avoid direct sunlight and strong vibrations.
