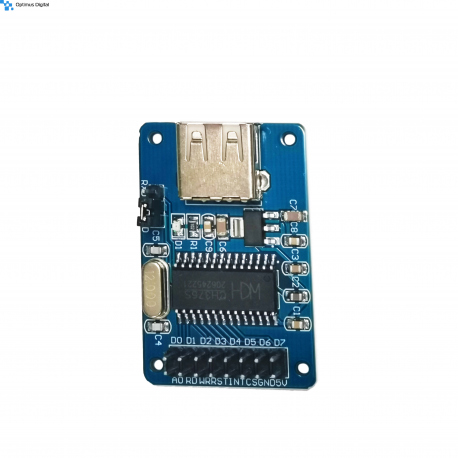

CH376S USB Module U Disk Read Write Module

Description

CH376S is used as a file manage control chip, used to MCU system read/write a file in USB Flash Drive or SD card. It supports USB-Device Mode and USB-HOST Mode. It also sets firmware of special communication protocol to deal with Mass-Storage devices, communication interface firmware of SD card, FAT16, FAT32, and FAT12 file system manage firmware in the inner. CH376S supports three communication interfaces: an 8-bit parallel, SPI interface or asynchronism serial interface.

Features

1. Internal curing CH376S chip FAT file system, file operations simple and fast
2. Support including USB thumb drives, USB hard drives, USB flash drives and USB storage devices, USB card reader
3. Support standard size SD card, HC-SD card, and compatible high capacity MMC, TF card
4. Supports a variety of communication interfaces: 8-bit parallel, SPI interface, and asynchronous serial ports
5. Compatibility: device is compatible with CH372, host compatible with CH375

Specifications

• Model: CH376S
• Operating Voltage (VDC): 5
• Interface: SPI
• Supported Formats: FAT12, FAT16, FAT32
• Maximum Data Transfer Speed: 2MBPS
• Length (mm): 43
• Width (mm): 22
• Height (mm): 10
• Weight (gm): 10

Package Includes

1 x CH376S USB Module U Disk Read Write Module
