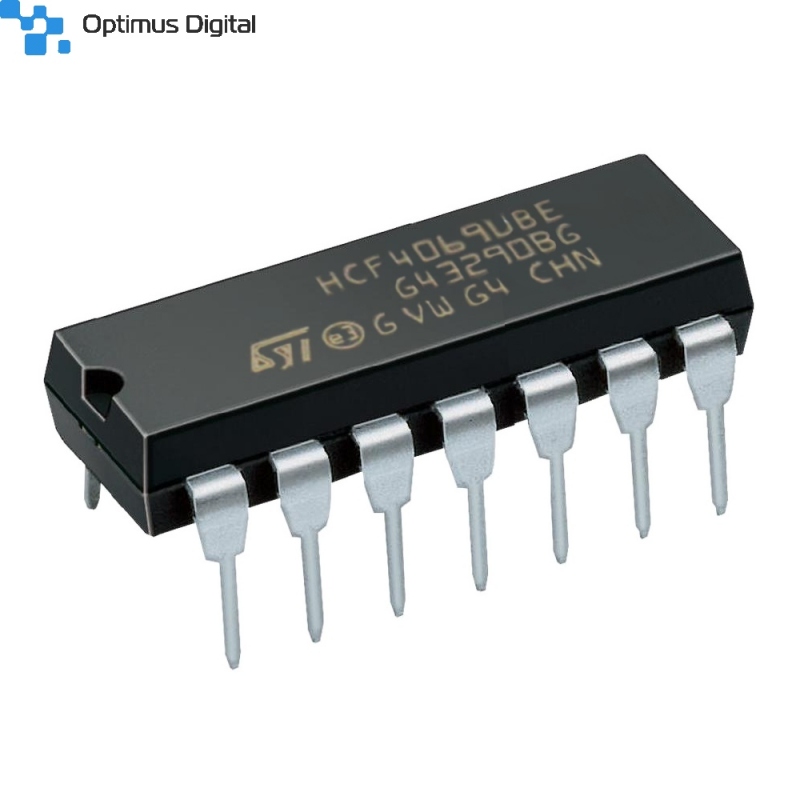

> >>CD4069 Inverter IC
CD4069 Inverter IC View larger
Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

CD4069 Inverter IC

0104110000025845

New product

CD4069 Inverter IC


See description for more details about the product.

Add to cart now!

More details

585 Items

$0.24
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Specifications

  • Logic type: INVERTER / NOR / NAND
  • Output current: 6.8mA
  • Number of inputs: 1
  • Power supply voltage range: 3V to 18V
  • Package type: DIP
  • Number of pins: 14
  • Operating temperature range: -55 oC to +125 oC
  • SVHC (Substances of Very High Concern): No SVHC (20-Jun-2011)
  • Device label: 4069
  • Package type: DIP
  • Working temperature sensitivity: -55 oC
  • Maximum working temperature: 125 oC
  • Power supply voltage: 18V
  • Maximum power supply voltage: 18V
  • Minimum power supply voltage: 3V
  • Chip label: 4069
  • Surface mount device: through-hole mounting
  • Maximum output current: 6.8mA
  • Logical function number: 4069
  • Logic chip function: six inverters
  • Logic chip basic number: 4069
  • Logic chip series: 4000 CMOS
  • Number of gates: 6
