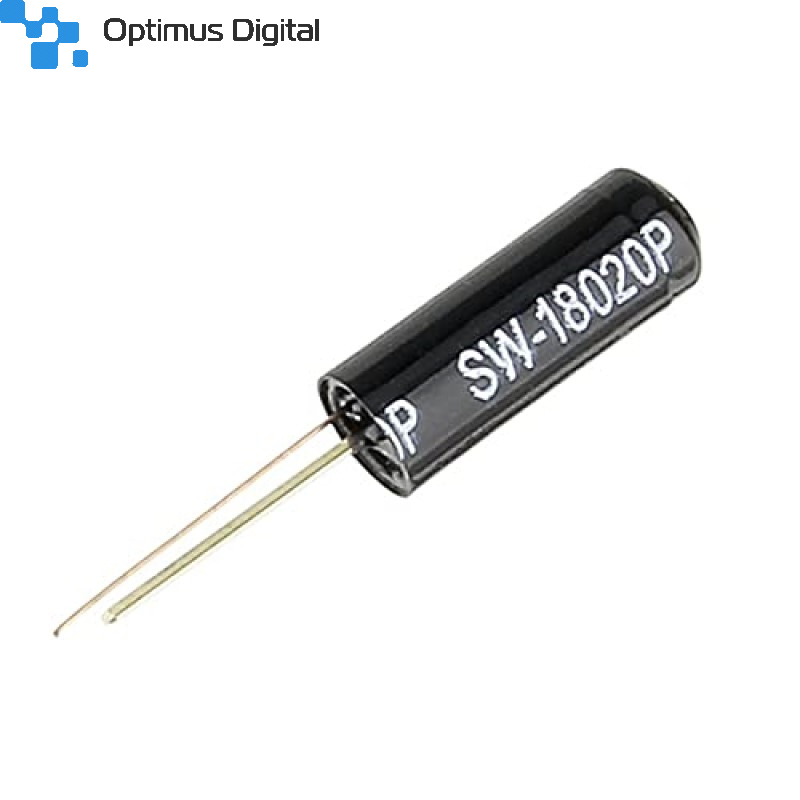

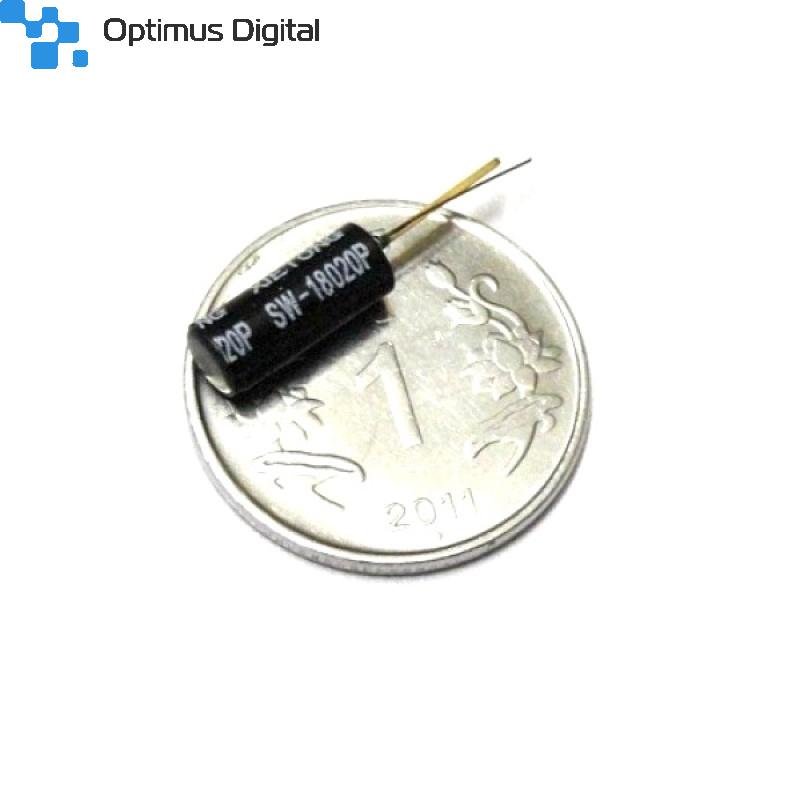

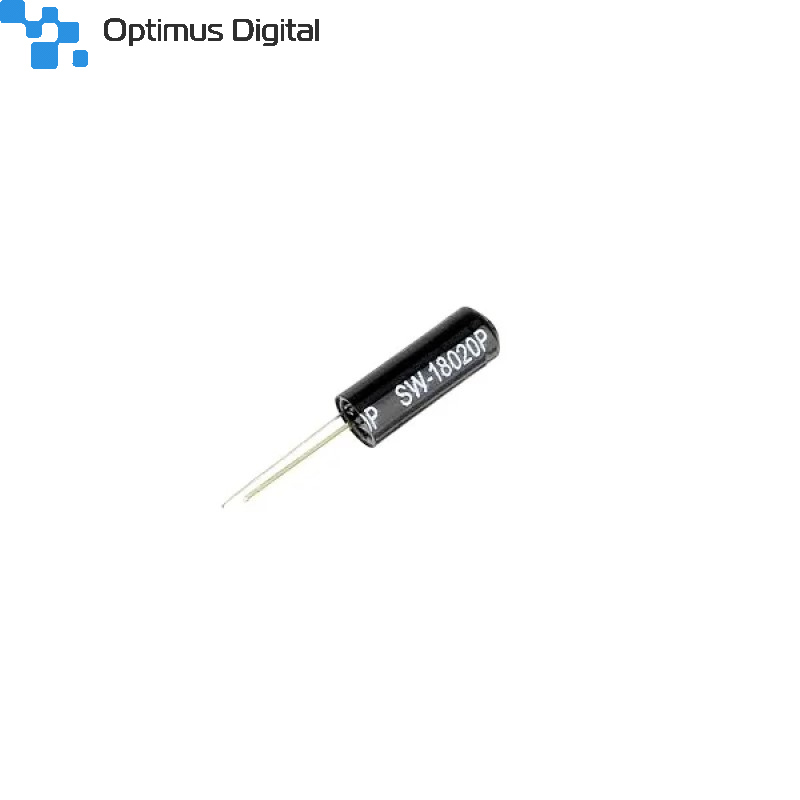

SW-18020P Vibration Sensor Mărește

Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

Senzor de Vibratii SW-18020P

0104210000088182

Produs nou

  1. Vibration sensor SW-18020P
  2. Can detect the vibration of the surrounding environment
  3. Max voltage 12V
  4. Max current 50mA


See description for more details about the product.

Add to cart now!

More details

814 bucati in stoc

$0.31
cu toate taxele incluse

Valabil în limita stocului disponibil

Prețul include costurile colectării, tratării și eliminării DEEE și DBAT

Informații

Description

SW-18020P Vibration Sensor is a really simple vibration switch, it is used commonly in electronic toys, alarms, domestic appliances, electronic devices, and smart home systems. SW-18020 series is a spring-type, Non-direction vibration-induced trigger switch, at any angle that can be triggered.


Applications

  • Anti-theft alarm
  • Smart Home systems
  • Automotive devices
  • Home electrical devices
  • Air condition / Air warm blower fall prevention protection switches
  • Communication devices
  • Electronic Scale
  • Instruments / Toys
  • Meters / Lamps
  • Digital Shoes
  • Sport Equipment

Features:

  1. Using the company’s high-sensitivity vibration switch, the default with SW-18020P vibration sensor.
  2. The comparator output, the signal clean, good waveform, driving ability, and more than 15mA
  3. With a fixed bolt hole, easy to install.
  4. The use of a wide voltage LM393 comparator.

Specification

  • Product : SW-18020P Vibration Sensor
  • Model : 18020P
  • Vibration sensor : SW-18020P
  • Max voltage : 12V
  • Max current : 50mA
  • Conductive time : ~2ms
  • Closed resistance : <10 ohm
  • Open resistance : >10M ohm
  • Operating temperature range : -40 to 80 C

Package Includes:

1 x SW-18020P Vibration Sensor
