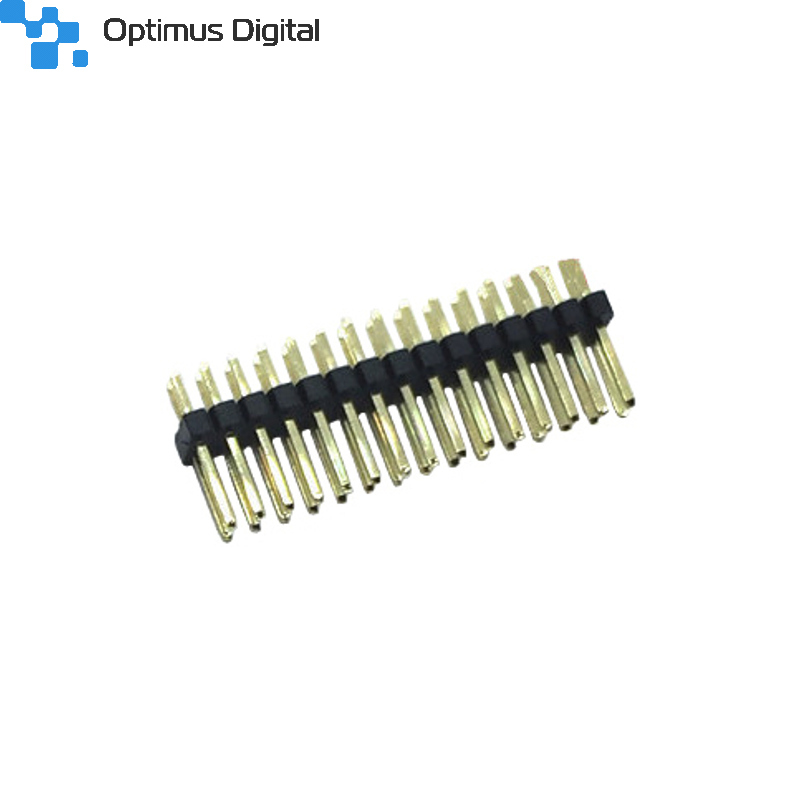

2 x 15p 1.27 mm Male Pin Header

Reference: 0104210000058796

Condition: New product

See description for more details about the product.

Add to cart now!

More details

92 Item Items

Remove this product from my favorite's list.

Add this product to my list of favorites.

• Pin: Copper plated

• Abutment: Copper plated

• Straight needle: Copper plated

• Straight female: Copper plated

• Rated current: 1.0AMP

• Contact Resistance: 20mΩ Max

• Withstand Voltage: 500V AC/DC

• Insulation Resistance: 1000MΩ Min

• Operation Temperature: -40 ^oc to +105 ^oc

• Contact Material: Brass

• Contact Plating: Au or Sn Over Ni

• Insulator Material: Polyester(UL94V-0)

• Standard: PA6T

• Max. Processing Temp: 230 ^oc for 30-60 seconds (260 ^oc for 10 seconds)
