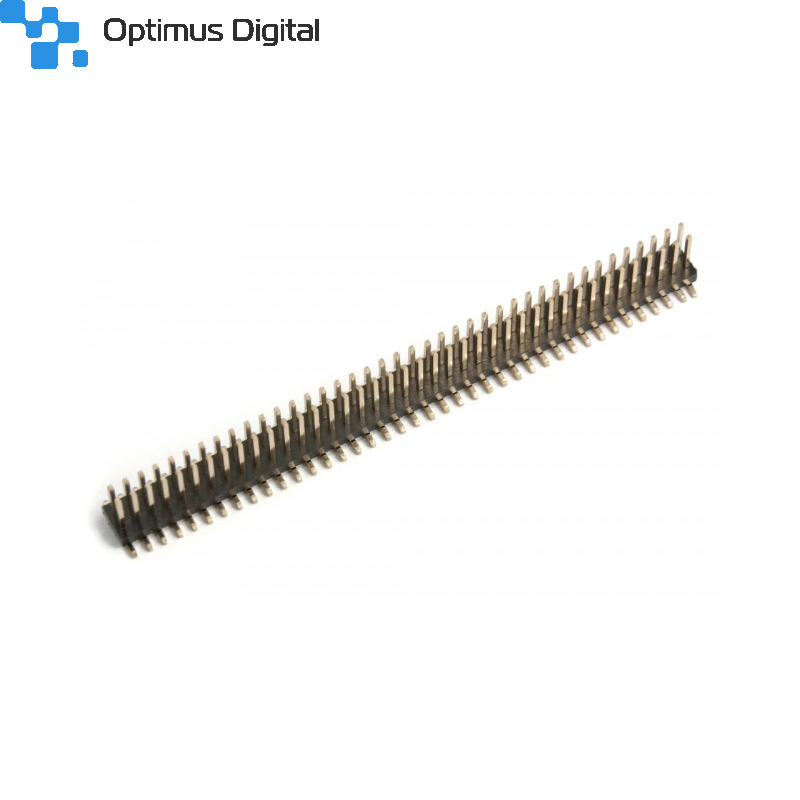

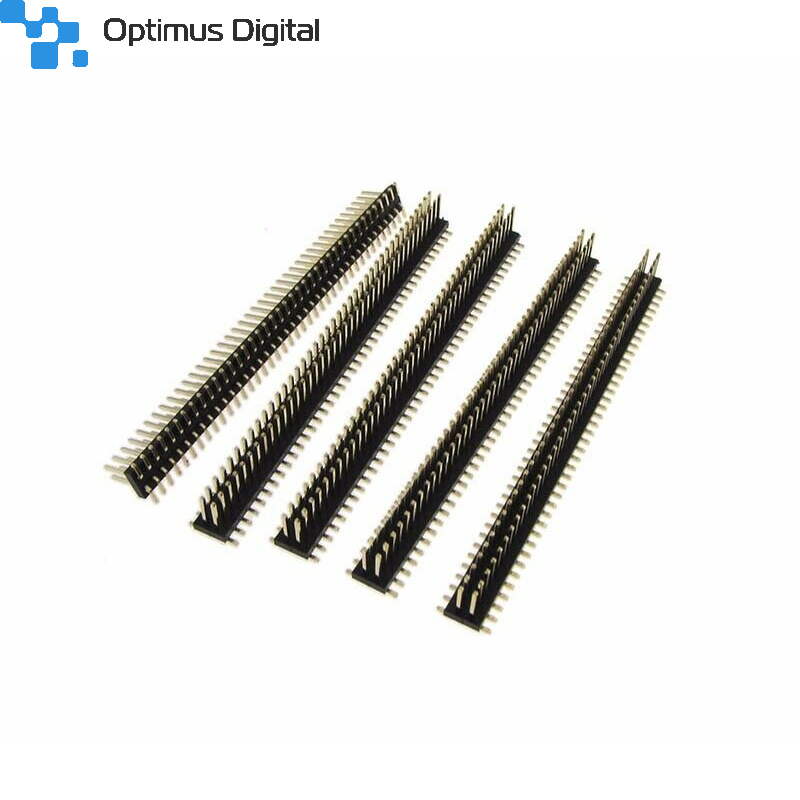

2 x 40p 1.27 mm SMD Male Pin Header

0104210000058994

New product

2 x 40p 1.27 mm SMD Male Pin Header


See description for more details about the product.

Add to cart now!

More details

19 Items

$0.48
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

-$0.24

$0.72 tax incl.

Add to wishlist

More info

Materials

• Pin: Copper plated

• Abutment: Copper plated

• Straight needle: Copper plated

• Straight female: Copper plated


Specifications

• Rated current: 1.0AMP

• Contact Resistance: 20mΩ Max

• Withstand Voltage: 500V AC/DC

• Insulation Resistance: 1000MΩ Min

• Operation Temperature: -40 oc to +105 oc

• Contact Material: Brass

• Contact Plating: Au or Sn Over Ni

• Insulator Material: Polyester(UL94V-0)

• Standard: PA6T

• Max. Processing Temp: 230 oc for 30-60 seconds (260 oc for 10 seconds)
