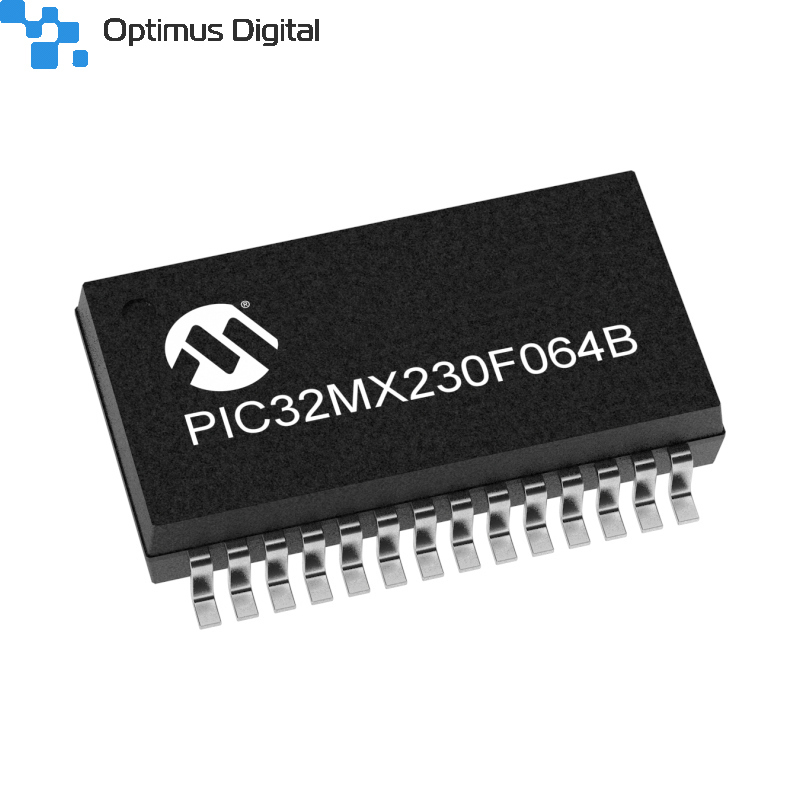

PIC32MX230F064B-I/SS View larger
Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

PIC32MX230F064B-I/SS

0104110000079268

New product

Features

  • 40 MHz/66DMIPS, 32-bit RISC CPU with less than 0.5 mA/MHz current consumption
  • Two I2S/SPI modules for Codec and serial communications
  • Peripheral Pin Select (PPS) functionality
  • Parallel Master Port (PMP) for graphics interfaces
  • Supports mTouchTM Capacitive touch buttons and sliders
  • Provides high-resolution time measurement (1 ns)


See description for more details about the product.

Add to cart now!

More details

22 Items

22,99 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Additional Features

Key Features

  • 40 MHz/66DMIPS, 32-bit RISC CPU with less than 0.5 mA/MHz current consumption
  • Two I2S/SPI modules for Codec and serial communications
  • Peripheral Pin Select (PPS) functionality
  • Parallel Master Port (PMP) for graphics interfaces
  • Charge Time Measurement Unit (CTMU) :
    • Supports mTouchTM Capacitive touch buttons and sliders
    • Provides high-resolution time measurement (1 ns)
    • On-chip temperature measurement capability
  • Temperature Range - 40oC to 105oC


Microcontroller Features

  • Operating voltage range of 2.3V to 3.6V
  • Up to 128KB Flash memory (plus an additional 3 KB of Boot Flash)
  • Up to 32K SRAM memory
  • 1.56 DMIPS/MHz (Dhrystone 2.1) performance
  • MIPS32® M4K® core with MIPS16e® mode for up to 40% smaller code size
  • Pin-compatible with most Microchip 16-bit devices
  • Multiple power management modes
  • Configurable WDT with on-chip Low-Power RC oscillator for reliable operation


Peripheral Features

  • Peripheral Pin Select (PPS) functionality
  • Up to 4 channels of hardware DMA with automatic data size detection
  • Two UART and I2C™ modules
  • Separate PLLs for CPU and USB clocks
  • Hardware Real-Time Clock and Calendar (RTCC)
  • Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)
  • Five Capture inputs and Five Compare/PWM outputs


Audio Interface Features

  • Data communication: I2S, LJ, RJ, DSP modes
  • Control interface: SPI and I2C™
  • Master clock:
  • Generation of fractional clock frequencies
  • Can be synchronized with USB clock
  • Can be tuned in run-time


Analog Features

  • Up to 13-channel, 10-bit ADC
  • Three Analog Comparators
  • Charge Time Measurement Unit (CTMU)


Debug Features

  • Four programming and debugging Interfaces
  • IEEE Standard 1149.2 compatible (JTAG) boundary scan


Parametrics

NameValue
Temperature Range -40C to +85C
Part Family PIC32MX2xx
Max CPU Speed MHz 40
Program Memory Size (KB) 64
SRAM (KB) 16
Auxiliary Flash (KB) 3
Temperature Range (C) -40 to 105
Operating Voltage Range (V) 2.3 to 3.6
Direct Memory Access Channels 4
SPI 2
I2C 1
CODEC Interface (I2S,AC97) Yes
Peripheral Pin Select / Pin Muxing Yes
CTMU test Yes
Number of USB Modules 1
USB Interface FS Device/Host/OTG
ADC Input 9
Max ADC Resolution (Bits 10
Max ADC Sampling Rate (ksps) 1100
Input Capture 5
Standalone Output Compare/Standard PWM 5
Max 16-bit Digital Timers 5
Parallel Port PMP
Number of Comparators 3
Internal Oscillator 8 MHz, 32 kHz
Hardware RTCC/RTC Yes
Max I/O Pins 19
Pincount 28
