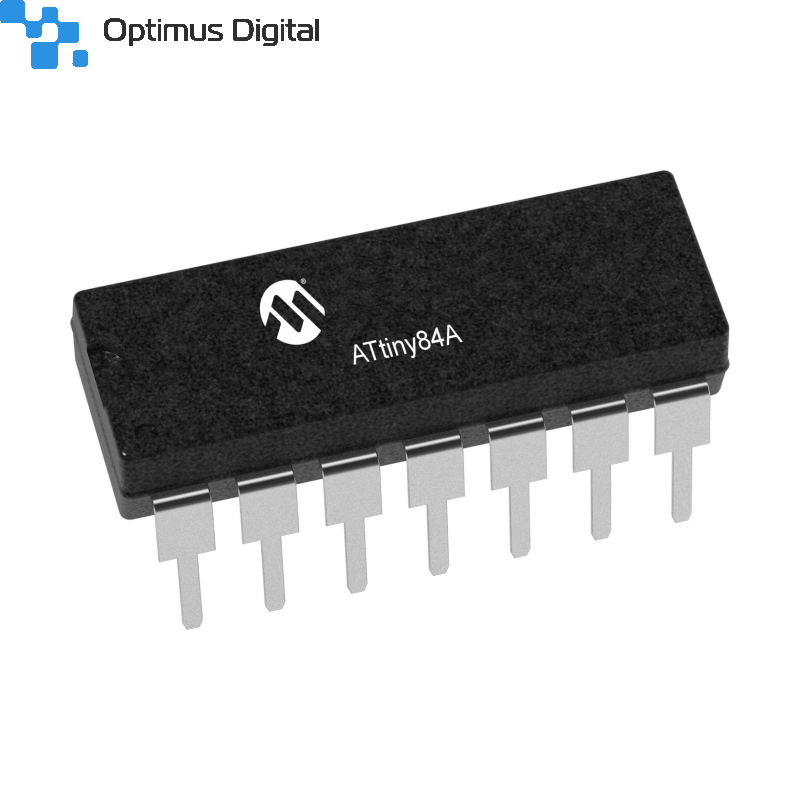

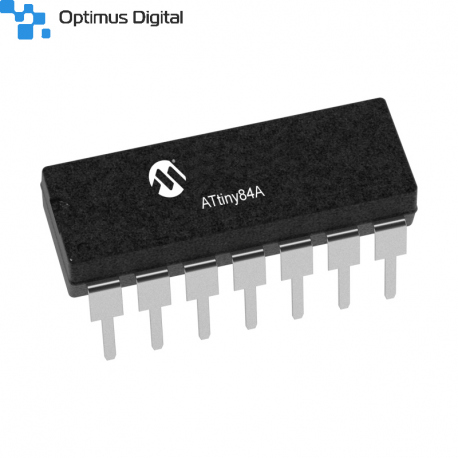

> >>ATTINY84A-PU
ATTINY84A-PU View larger
Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

ATTINY84A-PU

0104110000079527

New product

The device operates between 1.8-5.5 volts.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$4.80
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description

The high-performance, Microchip's picoPower® 8-bit AVR® RISC-based microcontroller combines 8 KB ISP Flash memory, 512B EEPROM, 512B SRAM, 12 general purpose I/O lines, 32 general purpose working registers, two timer/counters (8-bit/16-bit) with two PWM channels each, internal and external interrupts, 8-channel 10-bit A/D converter, programmable gain stage (1x, 20x) for 12 differential ADC channel pairs, programmable watchdog timer with internal oscillator, internal calibrated oscillator, and four software selectable power saving modes. The device operates between 1.8-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching one MIPS per MHz, balancing power consumption and processor speed.


Parametrics

NameValue
Program Memory Type Flash
Program Memory Size (KB) 8
CPU Speed (MIPS/DMIPS) 20
SRAM (B) 512
Data EEPROM/HEF (bytes) 512
Digital Communication Peripherals 1-SPI, 1-I2C
Capture/Compare/PWM Peripherals 1 Input Capture, 1 CCP, 4PWM
Timers 1 x 8-bit, 1 x 16-bit
Number of Comparators 1
Temperature Range (°C) -40 to 85
Operating Voltage Range (V) 1.8 to 5.5
Pin Count 14
