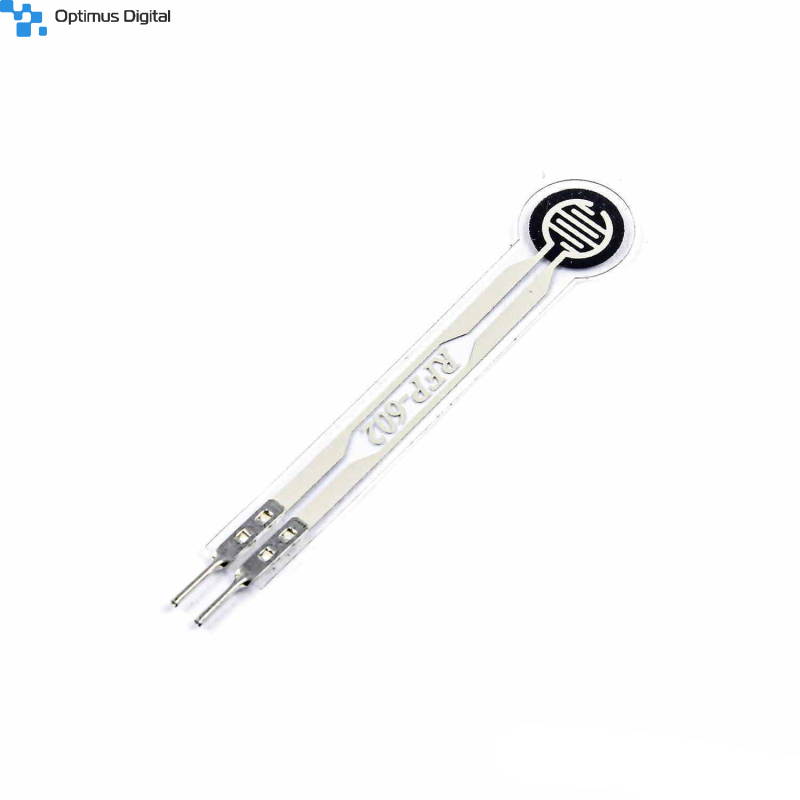

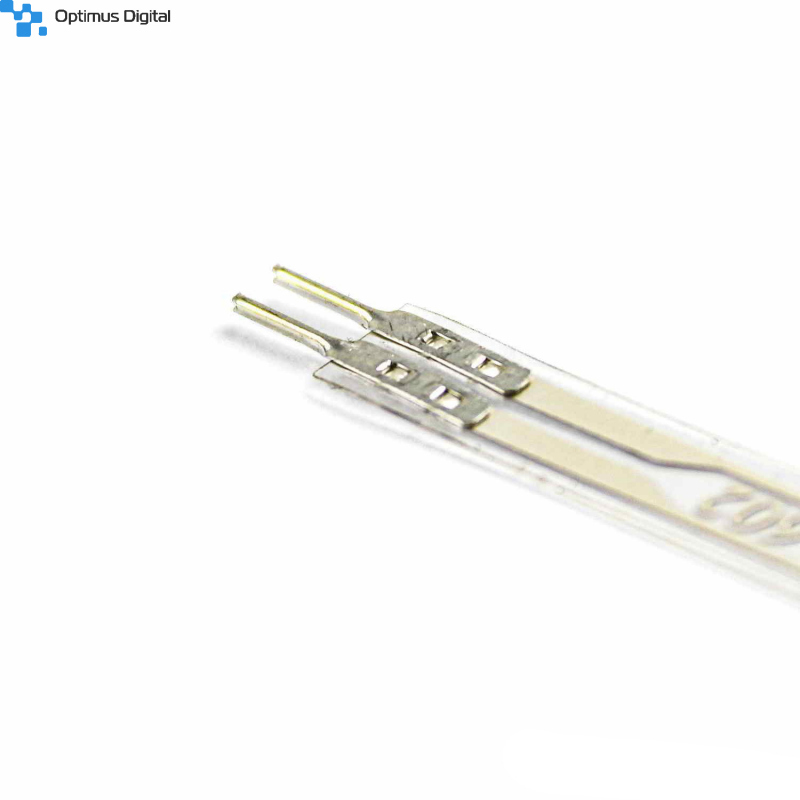

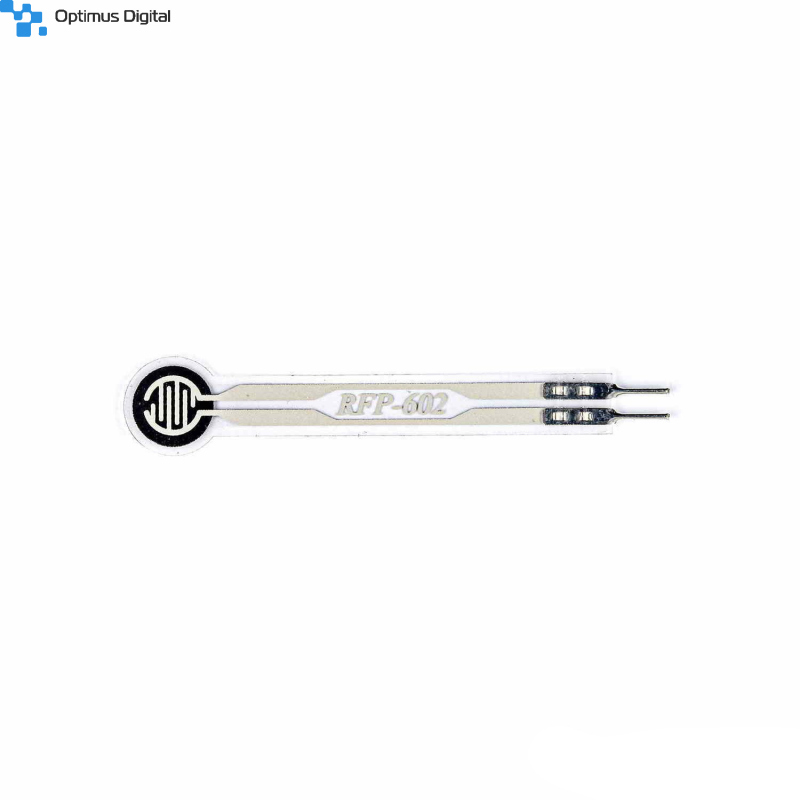

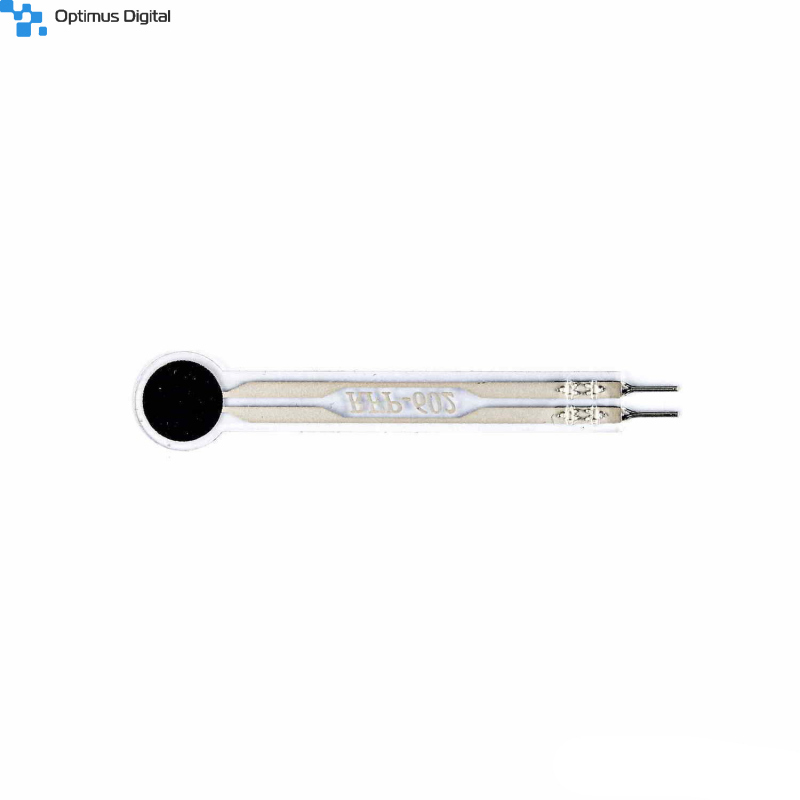

RFP602 Force Sensitive Resistor

0104110000029799

New product

This sensor detects pressure, pressure or weight. It is easy to use, it changes its resistance to pressure. Note that it detects variations in applied pressure rather than exact values.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$9.60
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description & Specifications

Model: RFP602CW04GD 2 KG

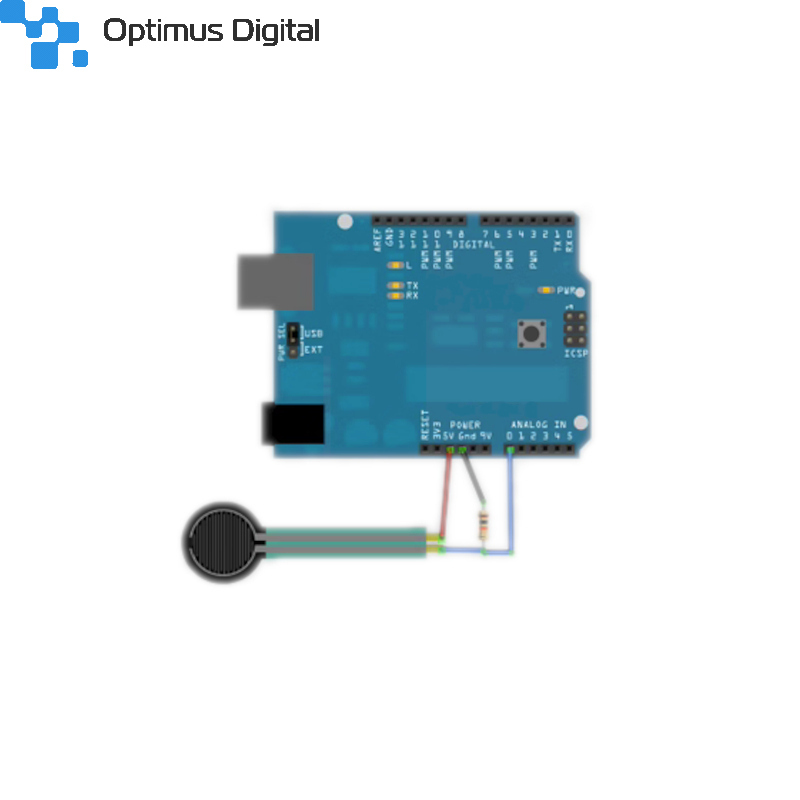

Connect the sensor directly into a breadboard, in a parent header or it can be glued carefully and quickly because you can melt the material from which it is built.

Output voltage calculation formula:

Force (N)
Resistance (Ω)
Current
tension
0
Infinite!
0 mA
0V
0.2 N
40 KΩ
0.13 mA
1.3 V
1 N
16 KΩ
0.31 mA
3.1 V
10 N
11 KΩ
0.45 mA
4.5 V

Strength-Strength Chart:

You can use this sensor in different projects. It is useful to avoid accidental actuations of some switches (check the push, not the simple touch).

It is resistant - up to 10 million pressures.
