New product

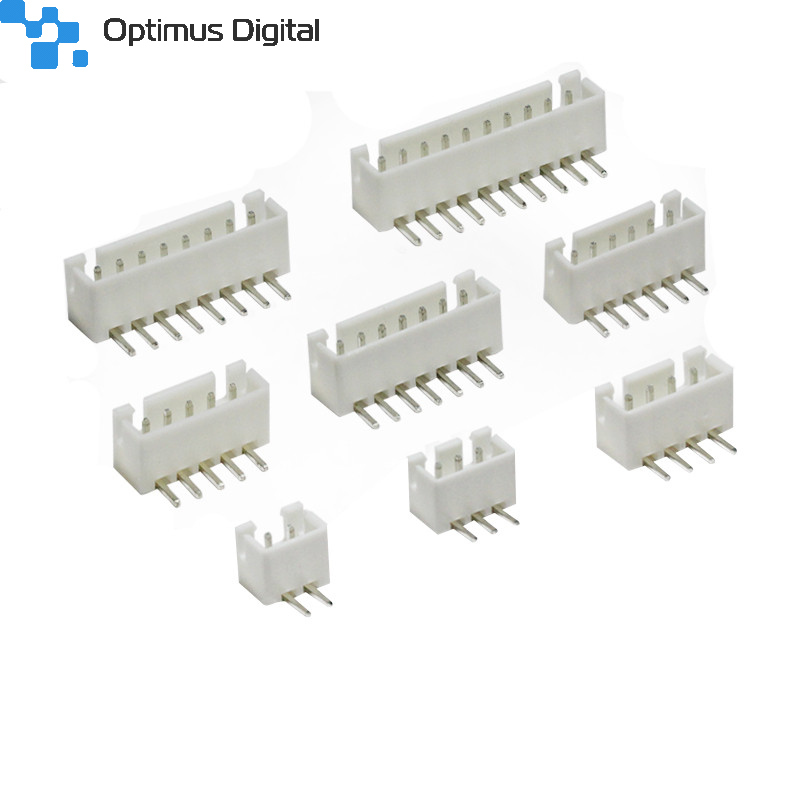

7p Bent Female XH2.54 Connector
See description for more details about the product.
Add to cart now!
185 Item Items
Warning: Last items in stock!
Availability date:
• Pitch: 2.5 mm
• Poles: 2 ~ 16
• Useable wire range: AWG30# ~ 22#
• Applicable printed board thickness: 0.8 ~ 1.6mm
• Voltage rating: 250v AC/DC
• Current rating: 3A AC/DC
• Working temperature: -25°c ~ +85°c
• Withstand voltage: 1000v/min
• Contact resistance: ⩽0.02
• Insulation resistance: ≥1000mΩ
• Housing: Nylon66
• Water: Nylon66
• Pin: Brass
• Terminal: Phosphor bronze
Poles | Part No. 2.5mm | Dimensions (mm) | ||
A | B | C | ||
2 | YX-XH-2 | 2.5 | 7.5 | 1 |
3 | YX-XH-3 | 5 | 10 | 3.5 |
4 | YX-XH-4 | 7.5 | 12.5 | 6 |
5 | YX-XH-5 | 10 | 15 | 8.5 |
6 | YX-XH-6 | 12.5 | 17.5 | 11 |
7 | YX-XH-7 | 15 | 20 | 13.5 |
8 | YX-XH-8 | 17.5 | 22.5 | 16 |
9 | YX-XH-9 | 20 | 25 | 18.5 |
10 | YX-XH-10 | 22.5 | 27.5 | 21 |
11 | YX-XH-11 | 25 | 30 | 23.56 |
12 | YX-XH-12 | 27.5 | 32.5 | 26 |
13 | YX-XH-13 | 30 | 35 | 28.5 |
14 | YX-XH-14 | 32.5 | 37.5 | 31 |
15 | YX-XH-15 | 35 | 4 | 33.5 |
16 | YX-XH-16 | 37.5 | 42.5 | 36 |
