W2023 PID Temperature Controller (24 V)

Reference: 0104110000055606

Condition: New product

Main Performance

NTC measurement input (B3950/10K T=25" 10KR)
PID self-tunning function; it can automatically adapt to various control objects
DC 24V low voltage power supply, safer for high-end precision ocassions
Direct solid state output, no mechanical action, quieter and longer life

See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

Remove this product from my favorite's list.

Add this product to my list of favorites.

• Control range: -55 ~ 120 ^oC

• Temperature control accuracy: +/- 0.1 - 0.2 ^oC

• Refresh rate: 4 times/sec

• Input voltage: DC 24V

• Output current: MAX 15A

• Maximum power: 360W

• Display size: 0.56 inch

• Size: 75x35x85 mm

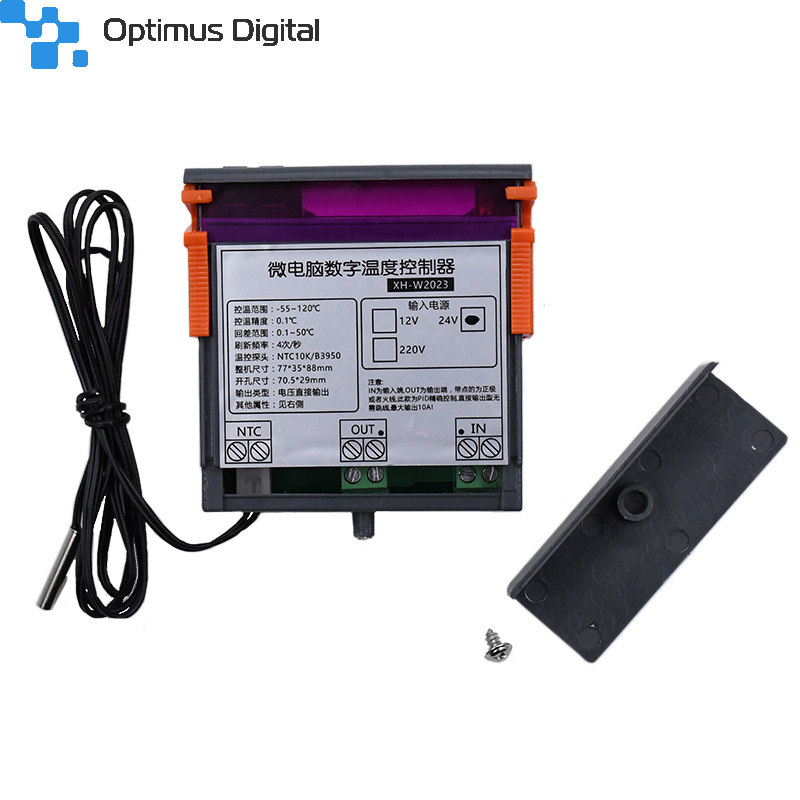

Connect the power supply to the input terminal and the heating device to the output.

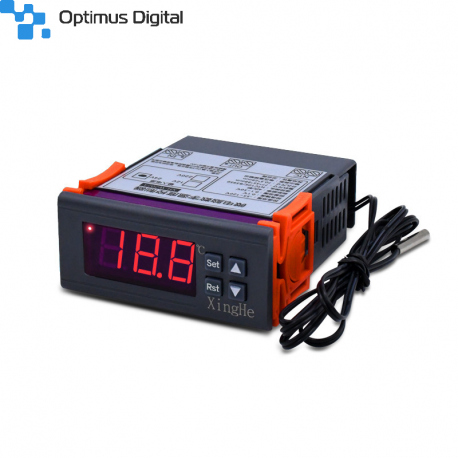

The screen will display the real-time temperature after powering on. Press SET once to set the desired temperature and press RST to confirm.
Long press RST can power off the controller without pulling the cable off the switch. Settings are automatically saved.
Press and hold the SET button in order to enter in the internal settings
