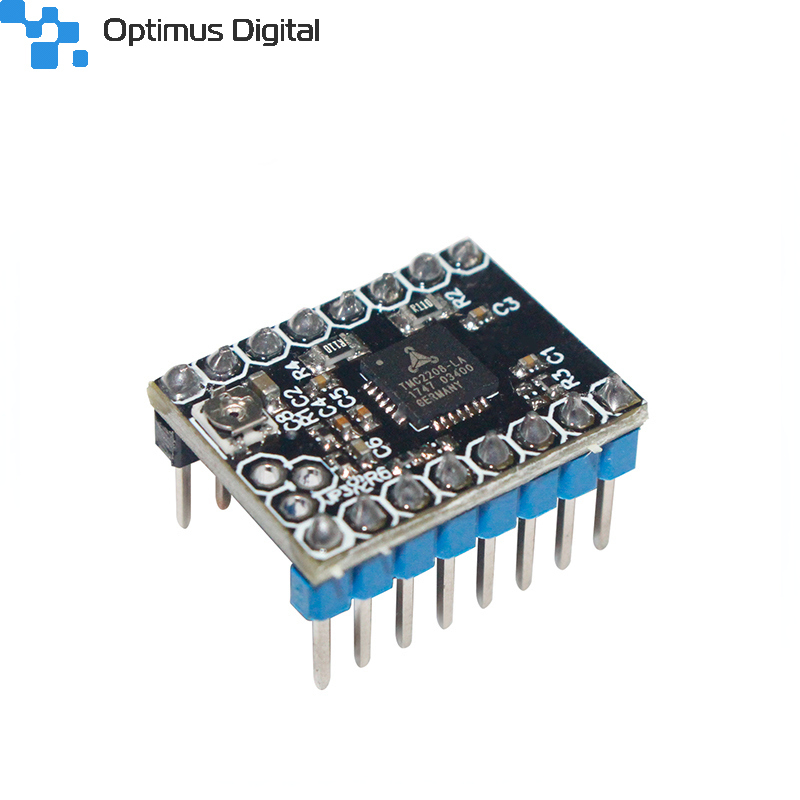

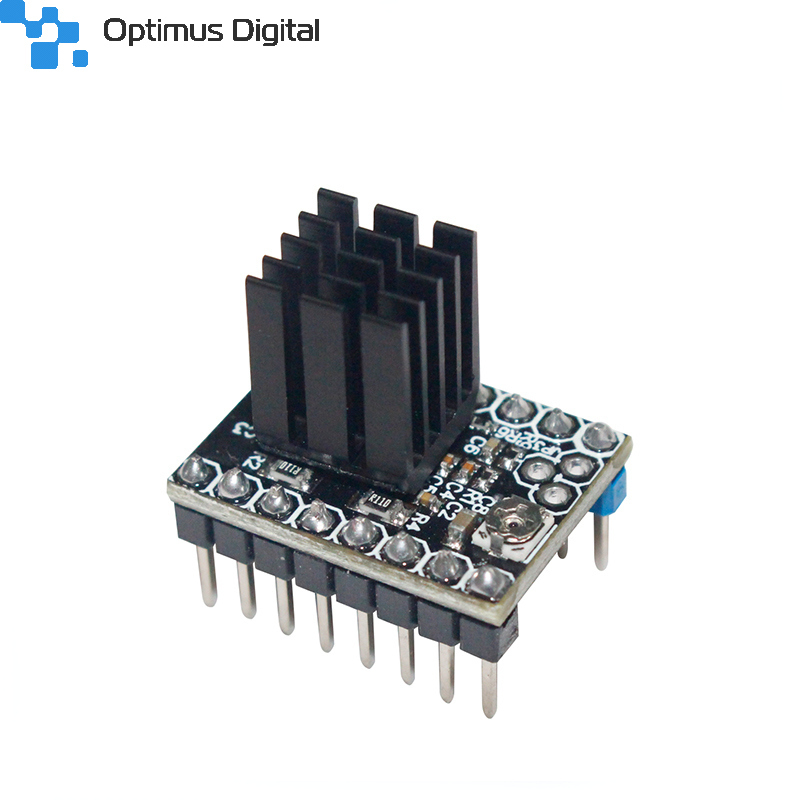

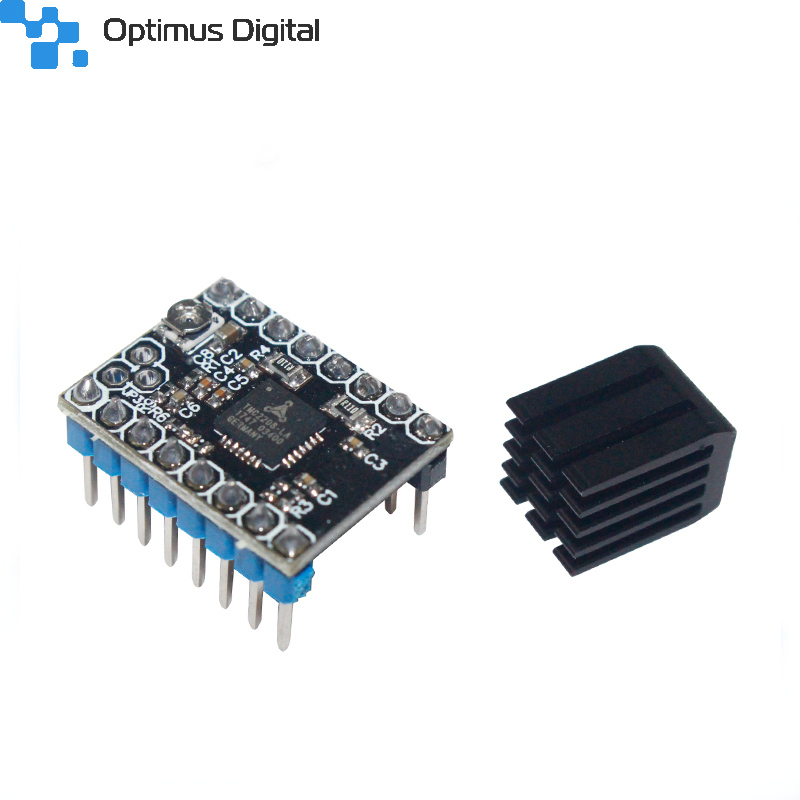

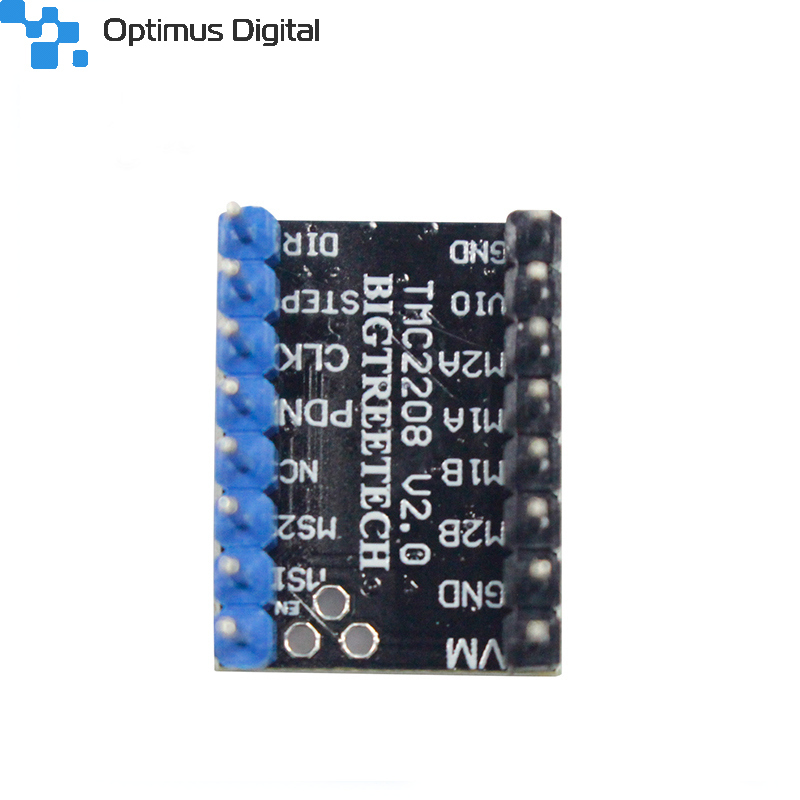

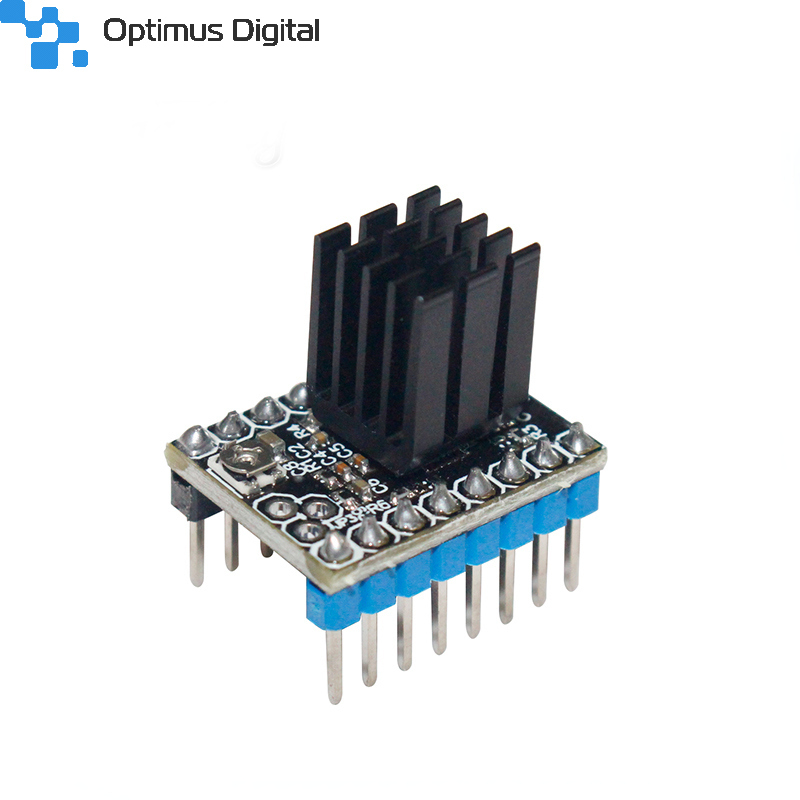

TMC2208 Stepper Motor Driver

Description

• TMC2208 is an ultra-quiet two-phase stepper motor driver chip, continuous drive current 1.4A, peak current 2A, voltage range 4.75V-36V, 256 subdivision; with patented technology spreadCycle" (high dynamic cut Wave device) stealthChop2" (ultra-quiet technology), microPlyert" (subdivision control).
• Flexible microplyer interpolation unit, which can provide up to 256 subdivisions, even in a system with limited pulse frequency, it can still achieve perfect sine Control; because stealthChop2 ultra-quiet technology is widely used in 3D printing, the design of these components is also compatible with the existing 3D printer electronics, eliminating the costly cost of redesign. It has a standard step/dir interface, using It's simple and convenient.

Features

• The subdivision is up to 256
• It will not lose step when driving with high load
• The logic interface level is: 3-5V
• The input voltage range: 4.75-36V DC
