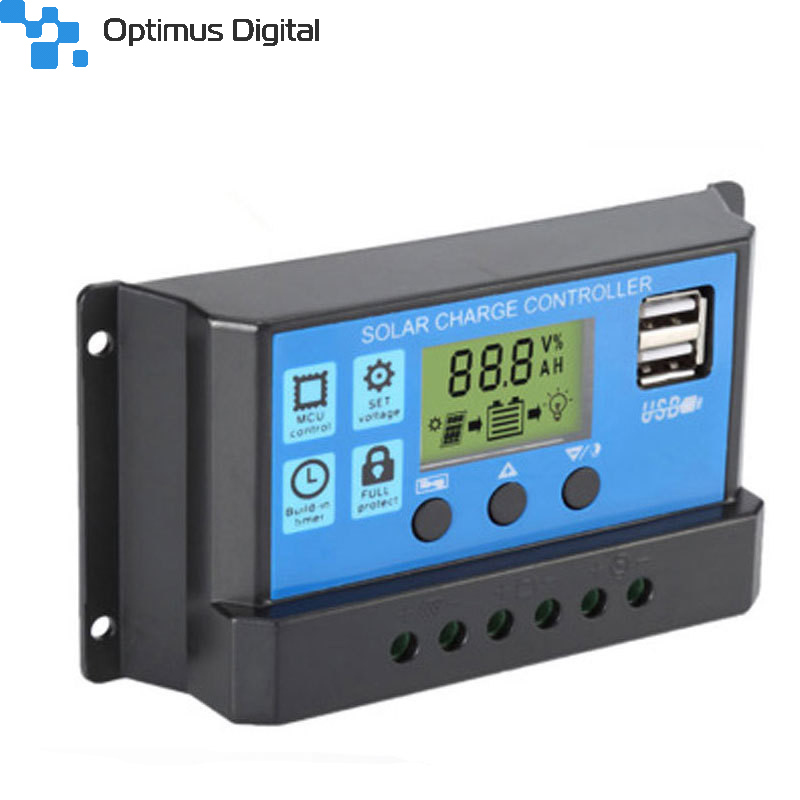

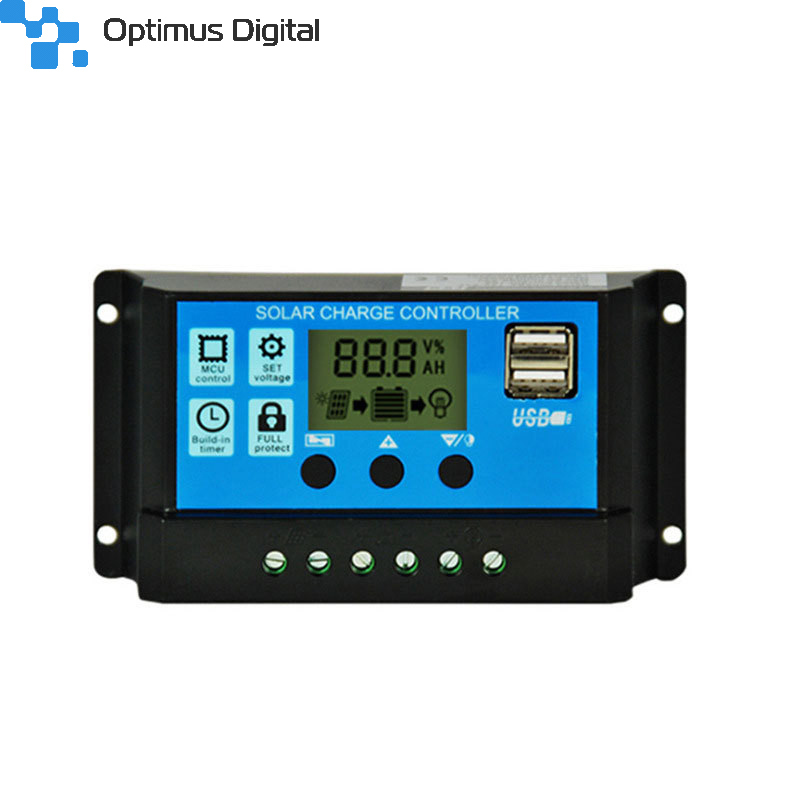

10A Intelligent LCD Solar Controller

Description

This is a Digital PWM Solar Charge Controller for the lead-acid batteries connected to a solar power system. When connected to the battery, this charge controller automatically detects the battery voltage from 12V-24V. This charge controller has some advanced features like built-in short circuit protection, open-circuit protection, reverse voltage protection, overload protection, etc which makes it ideal for grid power systems.

Note : Product is available two different color.

Features

1. Built-In Industrial Micro Controller
2. Big LCD Display
3. Full 4 Stage PWM Charge Management
4. Dual MOSFET Reverse Current Protection
5. Low Heat Production

Specifiations

• Battery Input: 12-24V Auto
• Charging Current (A): 10
• Discharge Current (A): 10
• Max. Solar Input (V): <50
• USB: 3A@5V
• Operating Temperature (^oC): -35 to 60
• Length (mm): 150
• Width (mm): 78
• Height (mm): 35
• Weight (gm): 150

Package Includes

1 x 10A Intelligent LCD Solar Controller
