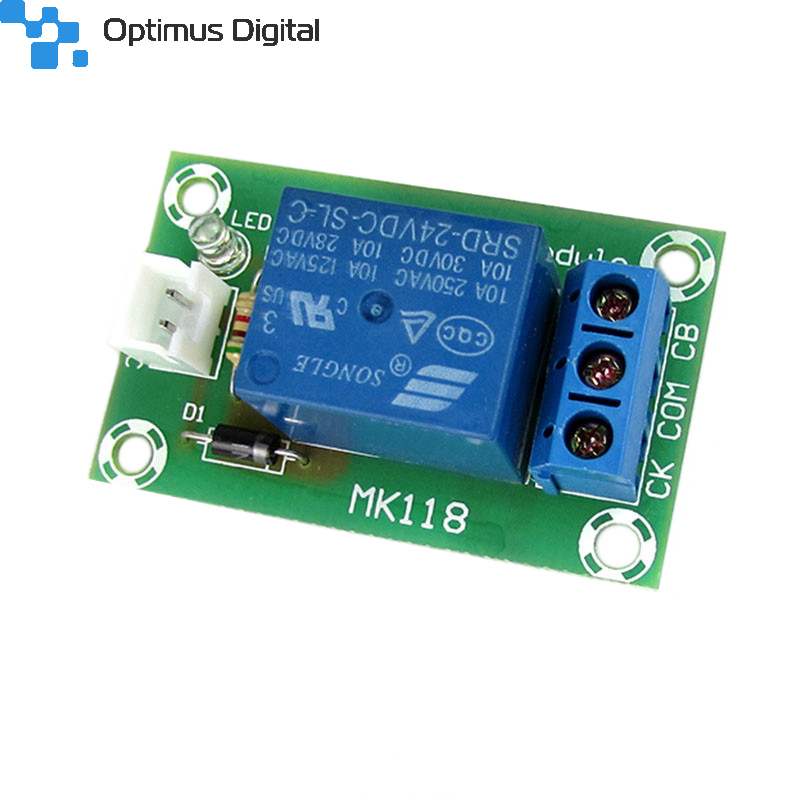

M118 Relay Module (5 V)
See description for more details about the product.
Add to cart now!
51 Item Items
Warning: Last items in stock!
Availability date:
The M118 Relay Module is a simple and practical relay module that has high-temperature resistance and environmental protection. The input terminal is provided with a lead wire. The relay can be directly connected to the power supply that way there will be no complicated circuit.
• Product name: M118 Relay Module (5 V)
• Product model: XH-M118
• Control voltage: 5v, 12v, or 24v (Optional)
• Maximum control capacity: AC 10A at 250VAC or DC 10A at 30VDC
• Output: 5.08-3P Terminal
• Socket line length: 150 mm
• Reverse Protection: Yes
• Ck normally open port
• Cb normally closed port
• Com public
Reverse protection/ reverse connection will not damage the module. When the power supply is connected, the relay is closed and the indicator light is on. When the power is turned on, the common end is normally closed. After the power is turned on, the common end is connected to the normally open end.
