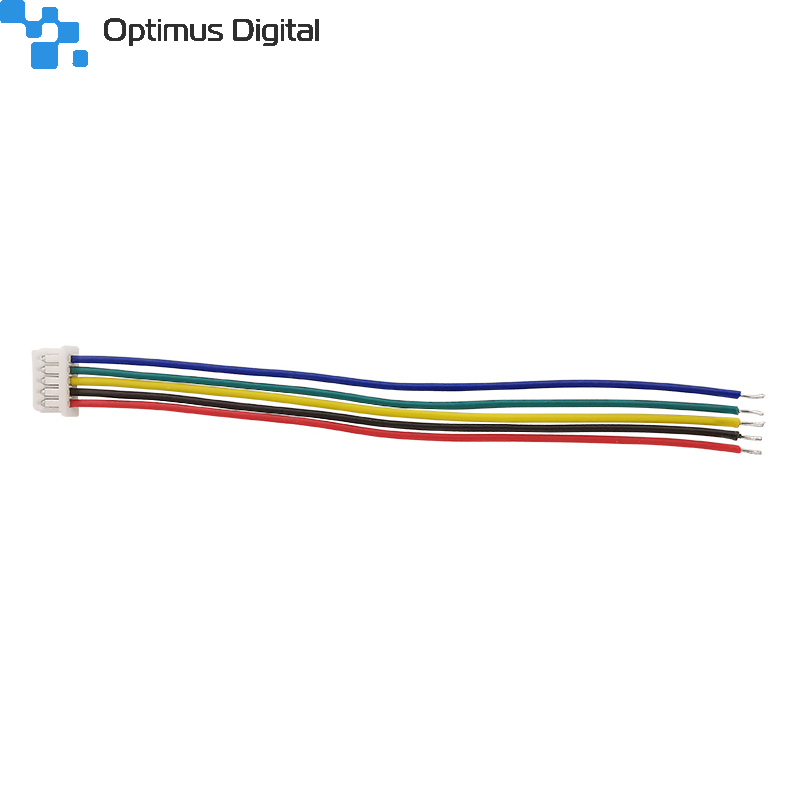

5p 1.25 mm Single Head Cable (20 cm)

0104210000057676

New product

• 1.0 1571-28 line: Each copper wire 0.12 temperature 80 degrees pressure 300V.

• 1.25 1571-28 line 7 copper wire: Each copper wire 0.12 is resistant to temperature 80 degrees withstand voltage 300V.

• 1.5 7th copper wire of 1007-28.: Each copper wire 0.12 is resistant to temperature 105 degrees withstand voltage 600V.


See description for more details about the product.

Add to cart now!

More details

56 Items

$0.60
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Specifications

• 1.0 1571-28 line: Each copper wire 0.12 temperature 80 degrees pressure 300V.

• 1.25 1571-28 line 7 copper wire: Each copper wire 0.12 is resistant to temperature 80 degrees withstand voltage 300V.

• 1.5 7th copper wire of 1007-28.: Each copper wire 0.12 is resistant to temperature 105 degrees withstand voltage 600V.

• PH2.0 is 7 copper wires of line 1007-26: Each copper wire is 0.12, the outer diameter is 1.3, the temperature is 80 degrees, and the pressure is 300V.

• XH2.54 is 7 copper wires of line 1007-26: Each copper wire is 0.12, the outer diameter is 1.3, the temperature is 80 degrees, and the pressure is 300V.

• VH3.96 1015-22 No. 7 copper wire: Each copper wire is 0.12. Temperature resistance 105 degrees withstand voltage 600V.

• CH3.96 1015-22 No. 7 copper wire: Each copper wire is 0.12. Temperature resistance 105 degrees withstand voltage 600V.

• KF2510 1007-26 7 copper wires: Each copper wire is 0.12. Temperature resistant 80 degrees withstand voltage 300V.

• 5557 1007-18 7 copper wires: Each copper wire is 0.12. Temperature resistant 80 degrees withstand voltage 300V.



Serial Number Model Size
A B
2 1.25-2Y 1.25 4.25
3 1.25-3Y 2.50 5.50
4 1.25-4Y 3.75 6.75
5 1.25-5Y 5.00 8.00
6 1.25-6Y 6.25 9.25
7 1.25-7Y 7.5 10.50
8 1.25-8Y 8.75 11.75
9 1.25-9Y 10.50 13.00
10 1.25-10Y 11.25 14.25
11 1.25-11Y 12.50 15.50
12 1.25-12Y 13.75 16.75
13 1.25-13Y 15.00 18.00
14 1.25-14Y 16.25 19.25
15 1.25-15Y 17.50 20.50
16 1.25-16Y 18.75 21.75



Serial Number Model Size
A B
2 1.25-2A 1.25 4.40
3 1.25-3A 2.50 5.65
4 1.25-4A 3.75 6.90
5 1.25-5A 5.00 8.15
6 1.25-6A 6.25 9.40
7 1.25-7A 7.5 10.65
8 1.25-8A 8.75 11.90
9 1.25-9A 10.50 13.15
10 1.25-10A 11.25 14.40
11 1.25-11A 12.50 15.65
12 1.25-12A 13.75 16.90
13 1.25-13A 15.00 18.15
14 1.25-14A 16.25 19.40
15 1.25-15A 17.50 20.60
16 1.25-16A 18.75 21.85



Serial Number Model Size
A B
2 1.25-2AW 1.25 4.40
3 1.25-3AW 2.50 5.65
4 1.25-4AW 3.75 6.90
5 1.25-5AW 5.00 8.15
6 1.25-6AW 6.25 9.40
7 1.25-7AW 7.5 10.65
8 1.25-8AW 8.75 11.90
9 1.25-9AW 10.50 13.15
10 1.25-10AW 11.25 14.40
11 1.25-11AW 12.50 15.65
12 1.25-12AW 13.75 16.90
13 1.25-13AW 15.00 18.15
14 1.25-14AW 16.25 19.40
15 1.25-15AW 17.50 20.65
16 1.25-16AW 18.75 21.85
