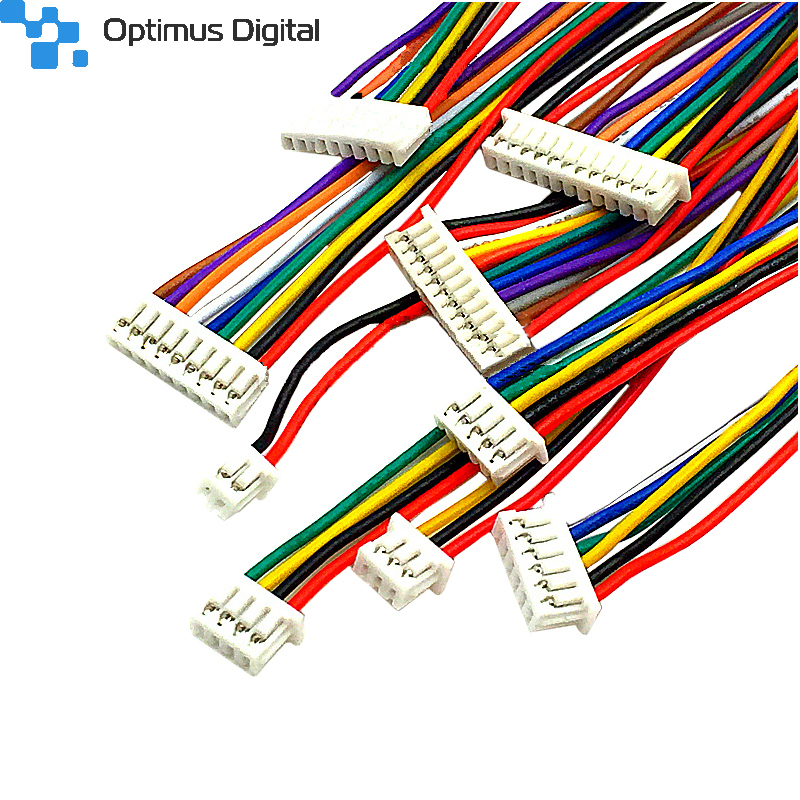

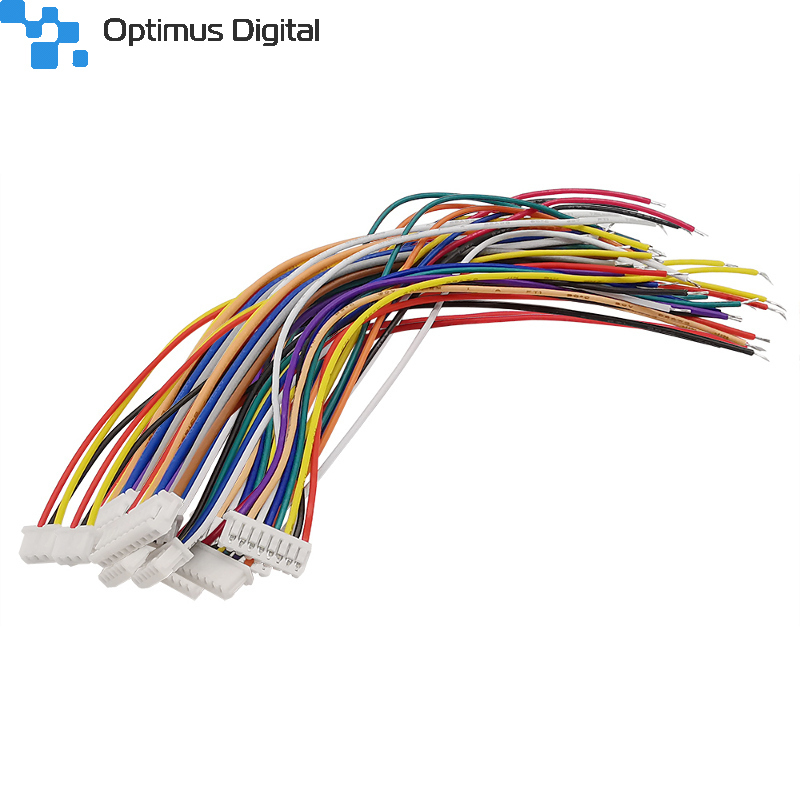

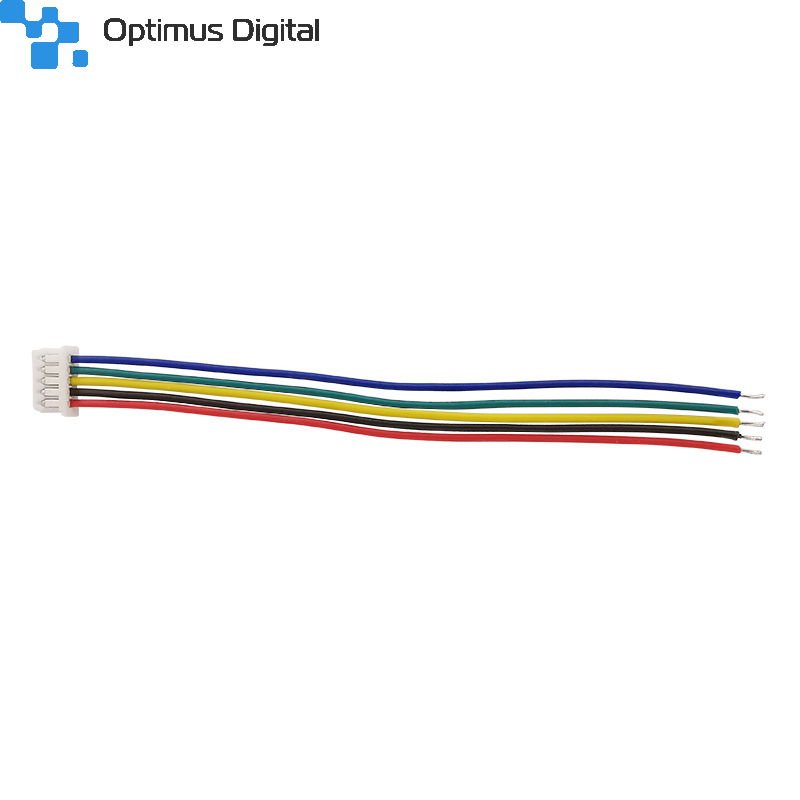

5p 1.25 mm Single Head Cable (30 cm)

Reference: 0104210000057782

Condition: New product

• 1.0 1571-28 line: Each copper wire 0.12 temperature 80 degrees pressure 300V.

• 1.25 1571-28 line 7 copper wire: Each copper wire 0.12 is resistant to temperature 80 degrees withstand voltage 300V.

• 1.5 7th copper wire of 1007-28.: Each copper wire 0.12 is resistant to temperature 105 degrees withstand voltage 600V.

See description for more details about the product.

Add to cart now!

More details

42 Item Items

Write a review

Remove this product from my favorite's list.

Add this product to my list of favorites.

More info

Specifications

• 1.0 1571-28 line: Each copper wire 0.12 temperature 80 degrees pressure 300V.

• 1.25 1571-28 line 7 copper wire: Each copper wire 0.12 is resistant to temperature 80 degrees withstand voltage 300V.

• 1.5 7th copper wire of 1007-28.: Each copper wire 0.12 is resistant to temperature 105 degrees withstand voltage 600V.

• PH2.0 is 7 copper wires of line 1007-26: Each copper wire is 0.12, the outer diameter is 1.3, the temperature is 80 degrees, and the pressure is 300V.

• XH2.54 is 7 copper wires of line 1007-26: Each copper wire is 0.12, the outer diameter is 1.3, the temperature is 80 degrees, and the pressure is 300V.

• VH3.96 1015-22 No. 7 copper wire: Each copper wire is 0.12. Temperature resistance 105 degrees withstand voltage 600V.

• CH3.96 1015-22 No. 7 copper wire: Each copper wire is 0.12. Temperature resistance 105 degrees withstand voltage 600V.

• KF2510 1007-26 7 copper wires: Each copper wire is 0.12. Temperature resistant 80 degrees withstand voltage 300V.

• 5557 1007-18 7 copper wires: Each copper wire is 0.12. Temperature resistant 80 degrees withstand voltage 300V.

Serial Number	Model	Size
Serial Number	Model	A	B
2	1.25-2Y	1.25	4.25
3	1.25-3Y	2.50	5.50
4	1.25-4Y	3.75	6.75
5	1.25-5Y	5.00	8.00
6	1.25-6Y	6.25	9.25
7	1.25-7Y	7.5	10.50
8	1.25-8Y	8.75	11.75
9	1.25-9Y	10.50	13.00
10	1.25-10Y	11.25	14.25
11	1.25-11Y	12.50	15.50
12	1.25-12Y	13.75	16.75
13	1.25-13Y	15.00	18.00
14	1.25-14Y	16.25	19.25
15	1.25-15Y	17.50	20.50
16	1.25-16Y	18.75	21.75

Serial Number	Model	Size
Serial Number	Model	A	B
2	1.25-2A	1.25	4.40
3	1.25-3A	2.50	5.65
4	1.25-4A	3.75	6.90
5	1.25-5A	5.00	8.15
6	1.25-6A	6.25	9.40
7	1.25-7A	7.5	10.65
8	1.25-8A	8.75	11.90
9	1.25-9A	10.50	13.15
10	1.25-10A	11.25	14.40
11	1.25-11A	12.50	15.65
12	1.25-12A	13.75	16.90
13	1.25-13A	15.00	18.15
14	1.25-14A	16.25	19.40
15	1.25-15A	17.50	20.60
16	1.25-16A	18.75	21.85

Serial Number	Model	Size
Serial Number	Model	A	B
2	1.25-2AW	1.25	4.40
3	1.25-3AW	2.50	5.65
4	1.25-4AW	3.75	6.90
5	1.25-5AW	5.00	8.15
6	1.25-6AW	6.25	9.40
7	1.25-7AW	7.5	10.65
8	1.25-8AW	8.75	11.90
9	1.25-9AW	10.50	13.15
10	1.25-10AW	11.25	14.40
11	1.25-11AW	12.50	15.65
12	1.25-12AW	13.75	16.90
13	1.25-13AW	15.00	18.15
14	1.25-14AW	16.25	19.40
15	1.25-15AW	17.50	20.65
16	1.25-16AW	18.75	21.85
