New product

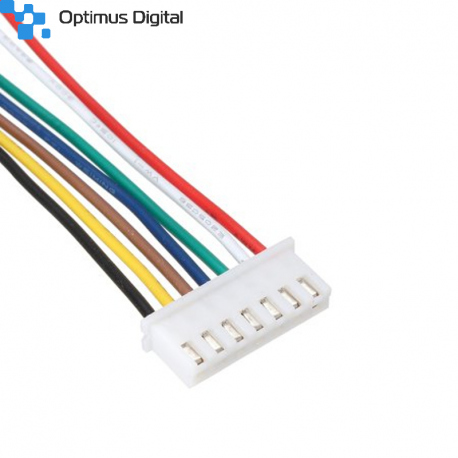

7p XH2.54 Colored Single Head Cable (20 cm)
See description for more details about the product.
Add to cart now!
31 Item Items
Warning: Last items in stock!
Availability date:
• Pitch: 2.5mm
• Poles: 2-16
• Usable wire range: AWG30 # -22 #
• Applicable printed board thickness: 0.8-1.6mm
• Voltage rating: 250V AC / DC
• Current rating: 3A AC / DC
• Working temperature: -25 ° C- + 85 ° C
• Withstand voltage: 1000V / min
• Contact resistance: <0.02O
• Insulation resistance:> 1000MO
Housing: Nylon 66
Pin header:
1. Water: Nylon 66
2. Pin: Brass
Terminal: Phosphor bronze
Poles | Part No 2.5 mm | Dimensions (mm) | ||
A | B | C | ||
2 | YX-XH-2 | 2.5 | 7.5 | 1 |
3 | YX-XH-3 | 5 | 10 | 3.5 |
4 | YX-XH-4 | 7.5 | 12.5 | 6 |
5 | YX-XH-5 | 10 | 15 | 8.5 |
6 | YX-XH-6 | 12.5 | 17.5 | 11 |
7 | YX-XH-7 | 15 | 20 | 13.5 |
8 | YX-XH-8 | 17.5 | 22.5 | 16 |
9 | YX-XH-9 | 20 | 25 | 18.5 |
10 | YX-XH-10 | 22.5 | 27.5 | 21 |
11 | YX-XH-11 | 25 | 30 | 23.56 |
12 | YX-XH-12 | 27.5 | 32.5 | 26 |
13 | YX-XH-13 | 30 | 35 | 28.5 |
14 | YX-XH-14 | 32.5 | 37.5 | 31 |
15 | YX-XH-15 | 35 | 4 | 33.5 |
16 | YX-XH-16 | 37.5 | 42.5 | 36 |
