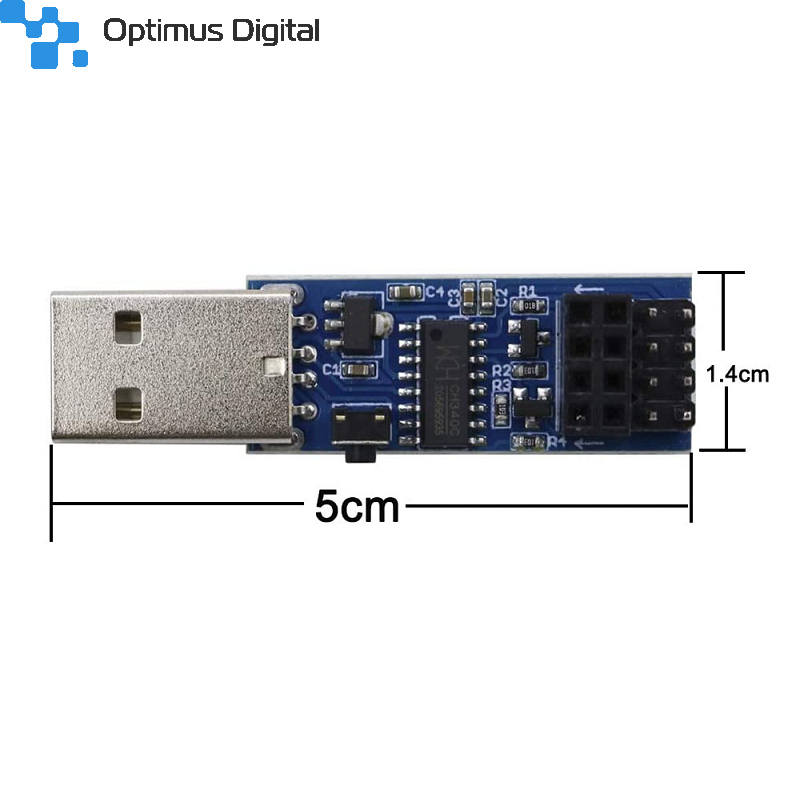

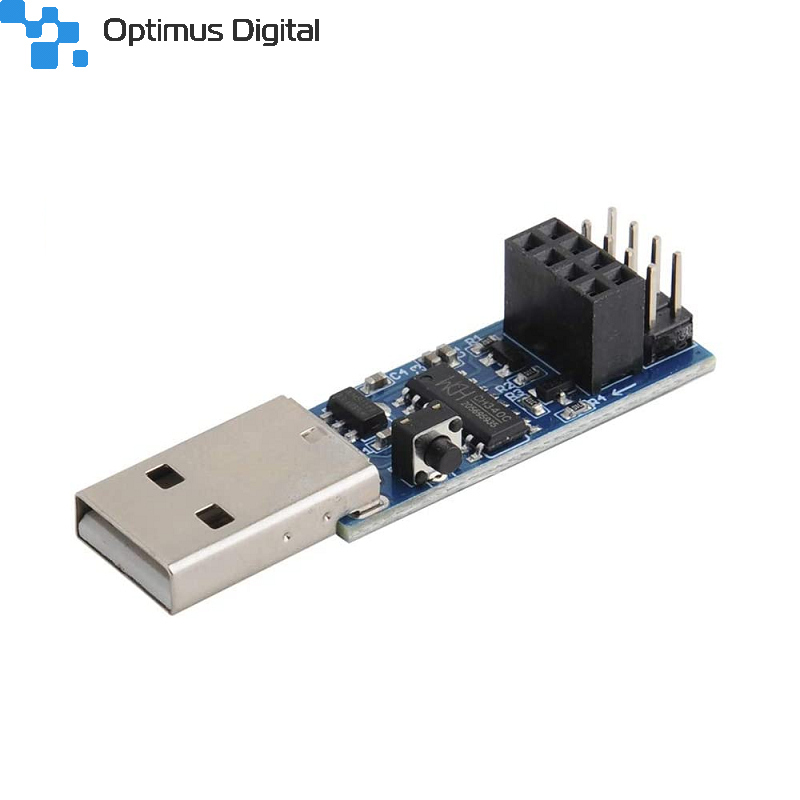

CH340C WIFI Module Adapter Download Debug for ESP8266 ESP-01/01S

0104110000088338

New product

  1. Operating Voltage: 5VDC
  2. USB to Serial Converter: CH340C
  3. Compatible With:ESP8266 ESP-01/01S
  4. Comes With Onboard Reset Switch
  5. Has Female Headers for Connecting the Wifi Module.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$2.40
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description

This is a downloader which adopts CH340G USB to Serial Chip and adds 8 self help download circuits, which is very convenient for users to download programs to ESP-01/01S wifi module, upgrade firmware, serial port AT command debugging, etc.

This module supports Arduino IDE, Anxin ESP8266 Flasher, and music One-Click download of software such as Xin Flash Download.

Features:

  1. No need to press any button
  2. The wifi module will automatically enter into download mode.
  3. Low cost and low price solution for rapid prototyping.
  4. Compact size, easy to embed in any product

Specification

  • Compatible With : ESP8266 ESP-01/01S
  • Operating Voltage : 5 VDC
  • USB to Serial Chip : CH340C
  • Length (mm) : 50
  • Width (mm) : 14
  • Height (mm) : 12
  • Weight (gm) : 6

Package Includes:

1 x CH340C WIFI Module Adapter Download Debug for ESP8266 ESP-01/01S
