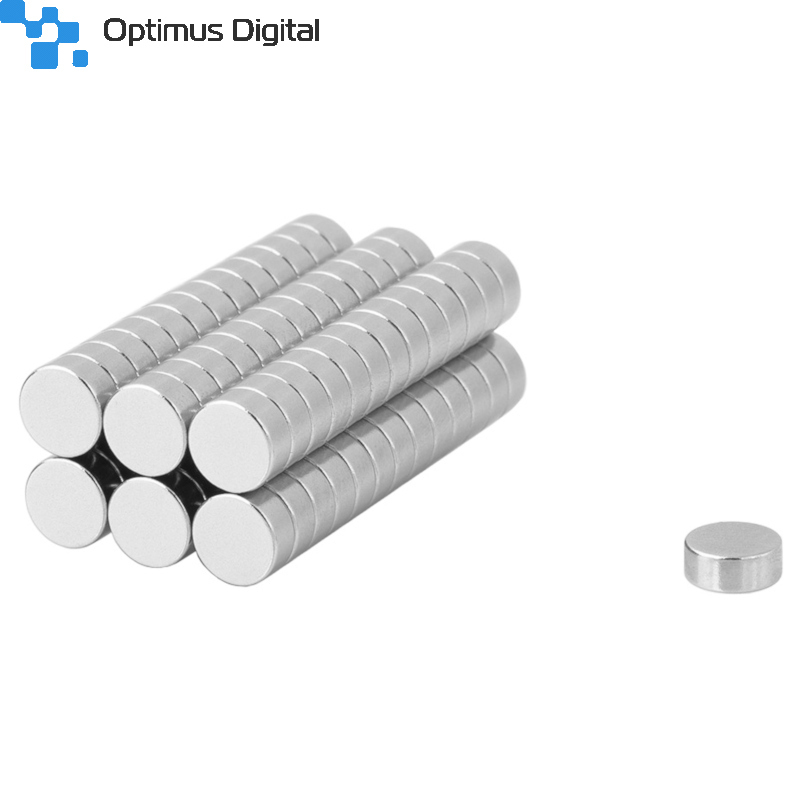

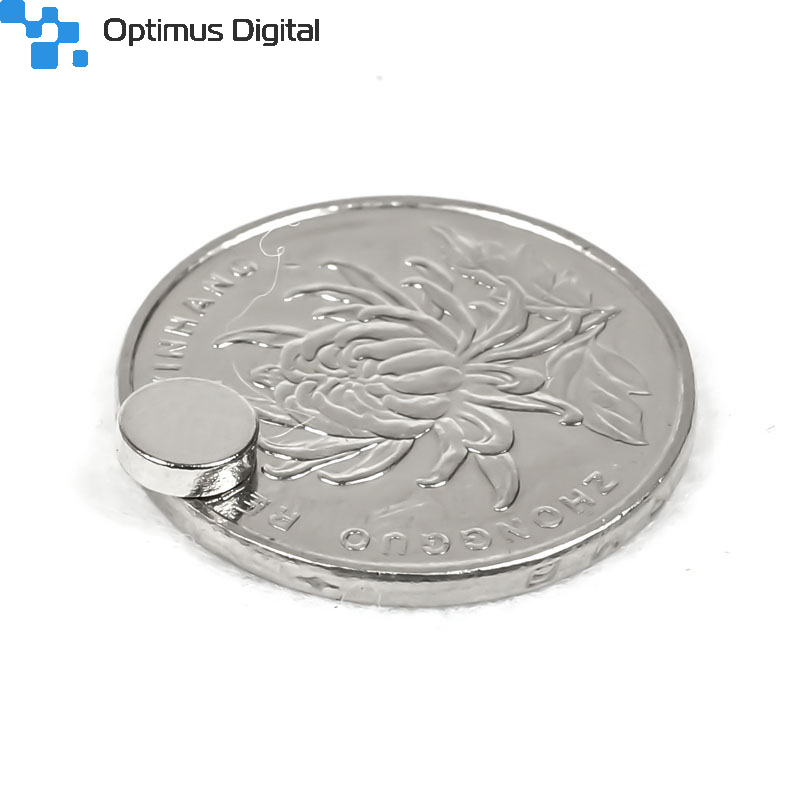

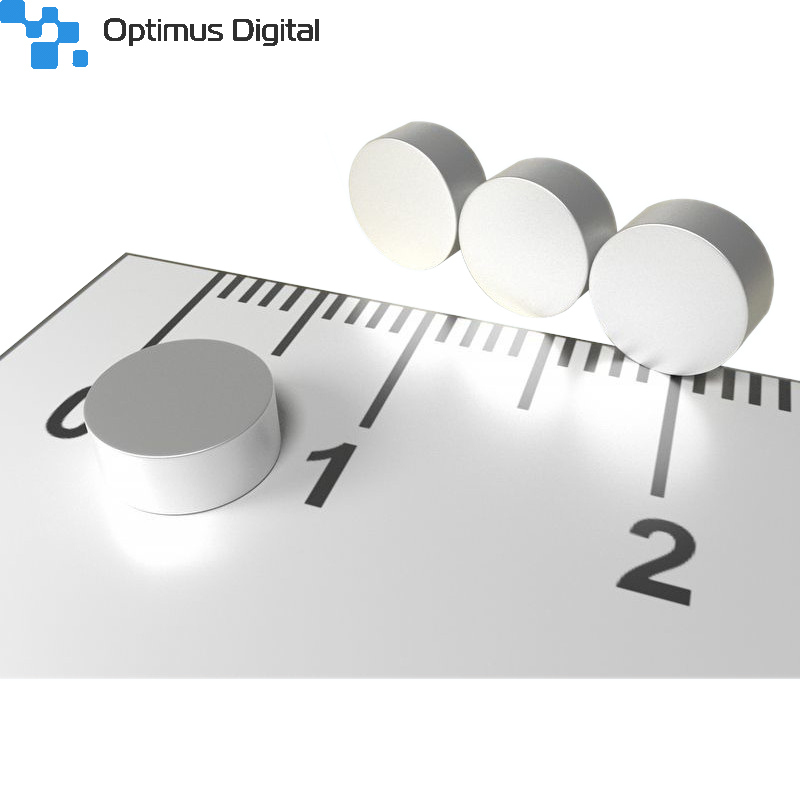

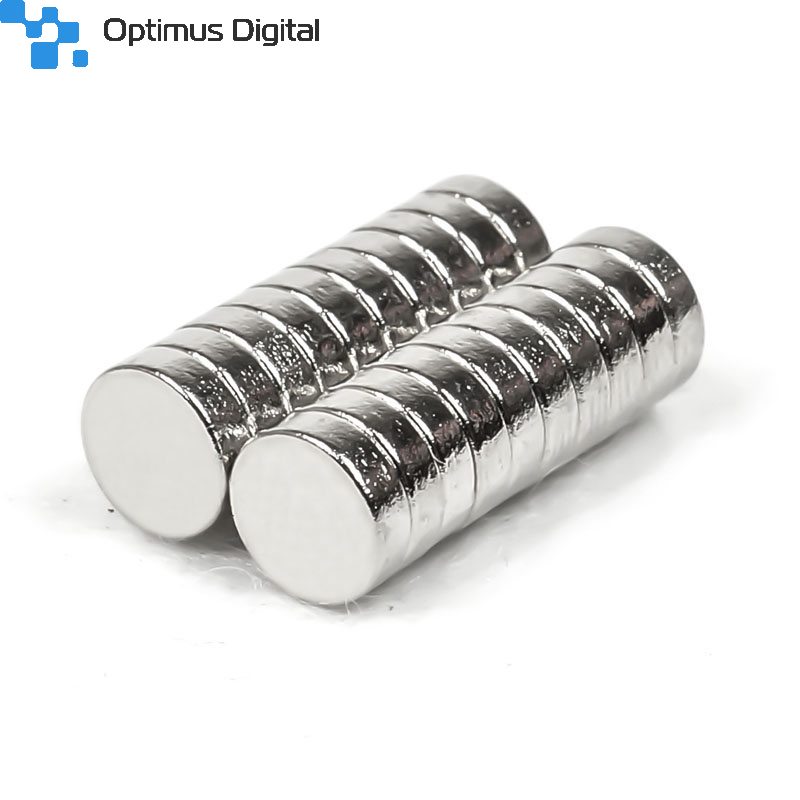

> >>>Neodymium Disc Magnet 6Ax2.5 Thick N38
Neodymium Disc Magnet 6Ax2,5 Thick N38 View larger
Previous Next

Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

Neodymium Disc Magnet 6Ax2.5 Thick N38

0104210000066203

New product

Neodymium Disc Magnet 6Ax2.5 Thick N38


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$0.36
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Magnet parameters:

• diameter: 6 mm (±0.1 mm)

• height: 2.5 mm (±0.1 mm)

• weight of the magnet: ~0.53 g

• material: Neodym NdFeB

• direction of magnetisation: along the diameter

• max. working temperature: 80oC.

• coating: Ni + Cu + Ni

• strength: ~0.35 kg

Magnetic properties of N38 material:

• remanence Br: 1.22-1.25 [T]; 12.2-12.5 [kGs]

• coercivity Hcb: ≥899 [kA/m]; ≥11.3[kOe]

• coercivity HcJ: ≥955 [kA/m]; ≥12 [kOe]

• energy density (BH) max: ≥287-310 [kJ/m3]; 36-39 [MGOe]

• magnetic induction on the surface of the magnet is: ~ 0.28 [T]
