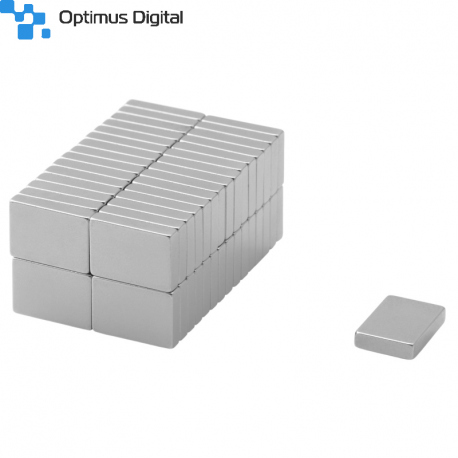

Neodymium Block Magnet 10x7x2 Thick N38

Magnet parameters:

• length: 10 mm (±0.1 mm)

• width: 7 mm (±0.1 mm)

• height: 2 mm (±0.1 mm)

• weight of the magnet: ~1.05 g

• material: Neodym NdFeB

• direction of magnetisation: axial, along the height

• max. working temperature: 80^oC.

• coating: Ni + Cu + Ni

• strength: ~1.2 kg

Magnetic properties of N38 material:

• remanence Br: 1.22-1.25 [T]; 12.2-12.5 [kGs]

• coercivity Hcb: ≥899 [kA/m]; ≥11.3 [kOe]

• coercivity HcJ: ≥955 [kA/m]; ≥12 [kOe]

• energy density (BH) max: ≥287-310 [kJ/m3]; 36-39 [MGOe]

• magnetic induction on the surface of the magnet is: ~0.214 [T]
