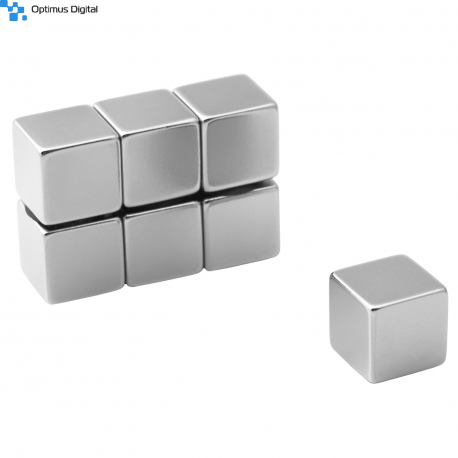

Neodymium Block Magnet 15x15x15 Thick N48

Magnet parameters:

• length: 15 mm (±0.1 mm)

• width: 15 mm (±0.1 mm)

• height: 15 mm (±0.1 mm)

• weight of the magnet: ~25.31 g

• material: Neodym NdFeB

• direction of magnetisation: axial, along the height

• max. working temperature: 80^oC.

• coating: Ni + Cu + Ni

• strength: ~10 kg

Magnetic properties of N48 material:

• remanence Br: 1.38-1.42 [T]; 13.8-14.2 [kGs]

• coercivity Hcb: ≥923 [kA/m]; ≥11.6 [kOe]

• coercivity HcJ: ≥955 [kA/m]; ≥12 [kOe]

• energy density (BH) max: ≥366-390 [kJ/m3]; 46-49 [MGOe]

• Magnetic induction on the surface of the magnet is: ~0.49 [T]
