Sale! EasyMech Anti Slip Motor Coupling 8 mm Internal Diameter View larger

Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

EasyMech Anti Slip Motor Coupling 8 mm Internal Diameter

9209

New product

If you are about to couple Omni, Mecanum or other Heavy Duty wheels with the motor then this is your perfect choice. The EasyMech has designed this Anti-Slip Motor Coupling mainly for one simple purpose, maximizing safe operation by avoiding any undesirable slipping between the motor shaft and the wheel.


See Description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$11.88
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

-$2.40

$14.28 tax incl.

Add to wishlist

More info

Description

If you are about to couple Omni, Mecanum or other Heavy Duty wheels with the motor then this is your perfect choice. The EasyMech has designed this Anti-Slip Motor Coupling mainly for one simple purpose, maximizing safe operation by avoiding any undesirable slipping between the motor shaft and the wheel.

This EasyMech Anti-Slip Motor Coupling Internal Dia-8mm connects a motor having a shaft diameter of 8mm to a wheel which has PCD(pitch circle diameter) of 47.5mm.

They are having a high-quality aluminum body which gives them good operational strength. These rigid couplings will keep backlash to a minimum since the coupling is one single piece. They are tested for the high power robotic application.

The screws that clamp the shafts will be tightened, but not too much. The main feature of this type of clamping coupling is they do not damage the shafts of the motor.

Compatible Wheels having PCD of 47.5mm:

All Omni wheels(except 100mm aluminum), Mecanum wheels, Modified HD wheels.


Features

  • Quality assured branded couplings.
  • Equips high-quality aluminum.
  • Avoids damage to the motor shaft.
  • Ensure safe operation of your robot.

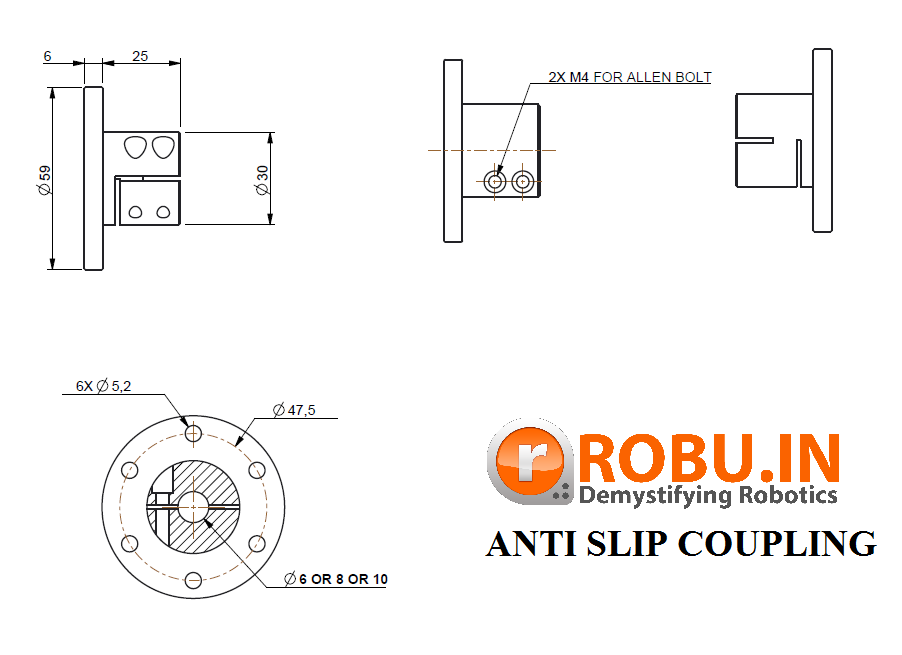

Specifications
Material Aluminium
Outer Diameter (OD)(mm) 59 mm
Inner Diameter (ID) (mm) 8
Pitch Circle Diameter(mm) 47.5
Motor Mounting Hole Dia. (mm) M5x6
Length (mm) 31
Weight(gm) 75

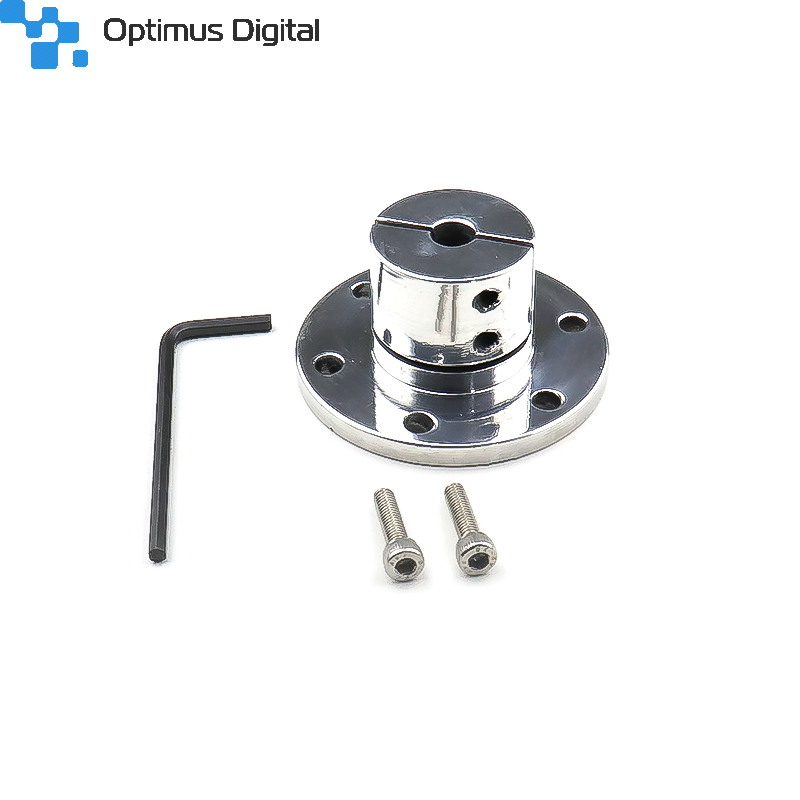

Package Includes

  • 1 x EasyMech Anti-Slip Motor Coupling.

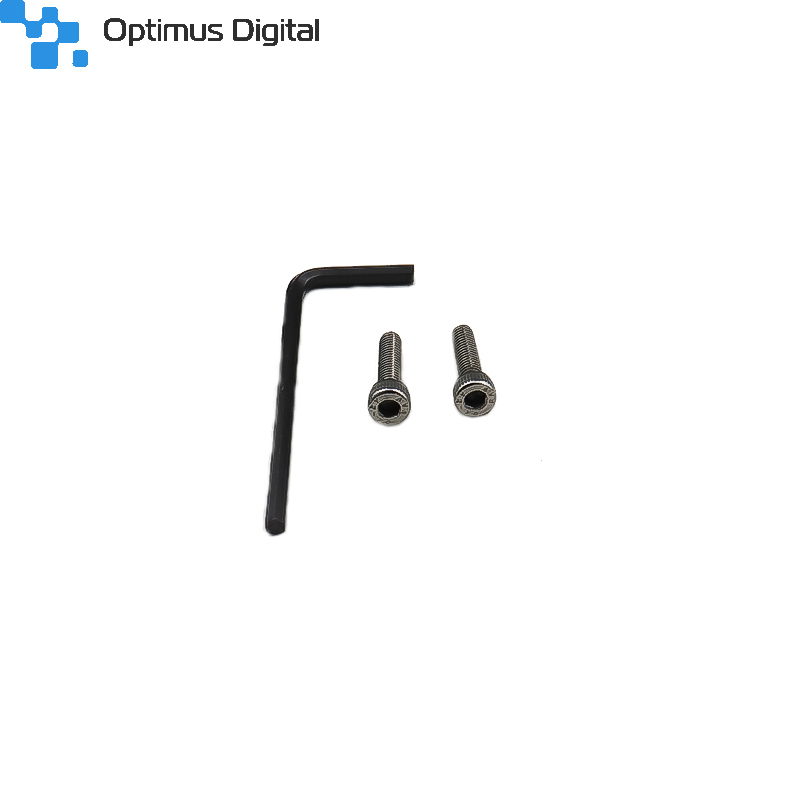

  • 1 x Medium Quality Allen Key 3mm.
  • 2 x SS Socket Head Cap Allen Bolt M4x16.


Don't delay, buy today.


Add to cart now!
