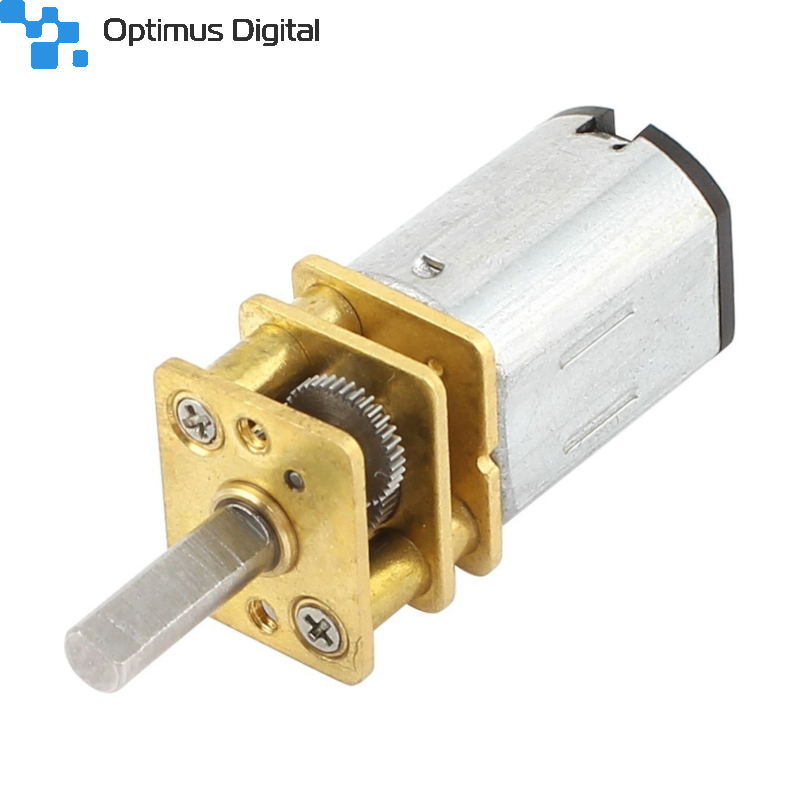

Micro Motor GA12-N20 cu Reductor 1:20 și Ax de 10 mm
0 bucata in stoc bucati in stoc
Acest produs nu mai este in stoc
Ultimele bucăți în stoc
Dată reaprovizionare:
Acest mic si usor, dar puternic motor cu reductor va poate fi de folos in construirea robotilor. Avand o varietate mare in ceea ce priveste raportul reductorului, va fi util in orice tip de aplicatie.
Axul acestui motor are lungimea de 10 mm.
Parametrii aferenti produsului curent sunt evidențiați in tabelul cu parametrii variantelor de motoare disponibile din același model.
Model: GA12-N20 | |||||||||||
Tensiune | Parametri în Gol | Parametri în Sarcină | Parametri în Blocare | Reductor | |||||||
Model | Acceptabilă | Nominală | Viteză | Curent | Viteză | Curent | Cuplu | Cuplu | Curent | Raport | Greutate |
V | V | rpm | mA | rpm | ma | kg·cm | kg·cm | A | 1:00 | g | |
12GAN20-010 | 1.5-5 | 3 | 1000 | 0.03 | 700 | 0.08 | 0.02 | 0.30 | 0.3 | 1:10 | 89.21 |
12GAN20-010 | 1.5-5 | 3 | 500 | 0.01 | 400 | 0.03 | 0.05 | 0.40 | 0.1 | 1:10 | 89.21 |
12GAN20-020 | 1.5-5 | 3 | 250 | 0.14 | 200 | 0.20 | 0.07 | 0.56 | 0.5 | 1:20 | 89.21 |
12GAN20-030 | 1.5-5 | 3 | 200 | 0.03 | 160 | 0.07 | 0.09 | 0.70 | 0.18 | 1:30 | 89.21 |
12GAN20-030 | 1.5-5 | 3 | 150 | 0.01 | 120 | 0.03 | 0.10 | 0.80 | 0.23 | 1:30 | 89.21 |
12GAN20-050 | 1.5-5 | 3 | 100 | 0.01 | 80 | 0.02 | 0.11 | 1.00 | 0.17 | 1:50 | 89.21 |
12GAN20-100 | 1.5-5 | 3 | 75 | 0.02 | 60 | 0.04 | 0.15 | 1.20 | 0.29 | 1:100 | 89.21 |
12GAN20-200 | 1.5-5 | 3 | 50 | 0.01 | 40 | 0.02 | 0.20 | 1.60 | 1.0 | 1:200 | 89.21 |
12GAN20-298 | 1.5-5 | 3 | 30 | 0.01 | 25 | 0.02 | 0.26 | 2.00 | 1.0 | 1:298 | 89.21 |
12GAN20-298 | 1.5-5 | 3 | 25 | 0.02 | 20 | 0.04 | 0.50 | 4.00 | 1.0 | 1:298 | 89.21 |
12GAN20-298 | 1.5-5 | 3 | 15 | 0.01 | 10 | 0.04 | 0.50 | 4.00 | 1.0 | 1:298 | 89.21 |
12GAN20-010 | 3-9 | 6 | 2000 | 0.04 | 1500 | 0.15 | 0.02 | 0.30 | 0.5 | 1:10 | 89.21 |
12GAN20-010 | 3-9 | 6 | 1000 | 0.01 | 800 | 0.03 | 0.06 | 0.40 | 0.16 | 1:10 | 89.21 |
12GAN20-020 | 3-9 | 6 | 500 | 0.16 | 400 | 0.23 | 0.15 | 1.00 | 0.56 | 1:20 | 89.21 |
12GAN20-030 | 3-9 | 6 | 400 | 0.04 | 340 | 0.07 | 0.17 | 1.40 | 0.2 | 1:30 | 89.21 |
12GAN20-030 | 3-9 | 6 | 300 | 0.03 | 240 | 0.04 | 0.20 | 1.60 | 0.2 | 1:30 | 89.21 |
12GAN20-050 | 3-9 | 6 | 200 | 0.03 | 160 | 0.06 | 0.30 | 1.80 | 0.23 | 1:50 | 89.21 |
12GAN20-100 | 3-9 | 6 | 150 | 0.03 | 120 | 0.05 | 0.35 | 2.40 | 0.25 | 1:100 | 89.21 |
12GAN20-200 | 3-9 | 6 | 100 | 0.01 | 80 | 0.03 | 0.40 | 3.20 | 1.0 | 1:200 | 89.21 |
12GAN20-298 | 3-9 | 6 | 60 | 0.03 | 50 | 0.05 | 0.60 | 3.20 | 1.0 | 1:298 | 89.21 |
12GAN20-298 | 3-9 | 6 | 50 | 0.02 | 40 | 0.05 | 1.50 | 10.00 | 1,0 | 1:298 | 89.21 |
12GAN20-298 | 3-9 | 6 | 30 | 0.02 | 25 | 0.04 | 1.50 | 10.00 | 1.0 | 1:298 | 89.21 |
12GAN20-010 | 6-12 | 12 | 4000 | 0.16 | 3000 | 0.34 | 0.04 | 0.60 | 0.6 | 1:10 | 89.21 |
12GAN20-010 | 6-12 | 12 | 2000 | 0.02 | 1600 | 0.06 | 0.12 | 1.00 | 0.35 | 1:10 | 89.21 |
12GAN20-020 | 6-12 | 12 | 1000 | 0.19 | 800 | 0.28 | 0.30 | 2.40 | 0.6 | 1:20 | 89.21 |
12GAN20-030 | 6-12 | 12 | 800 | 0.11 | 700 | 0.16 | 0.35 | 3.00 | 0.4 | 1:30 | 89.21 |
12GAN20-030 | 6-12 | 12 | 600 | 0.03 | 500 | 0.07 | 0.40 | 3.20 | 0.2 | 1:30 | 89.21 |
12GAN20-050 | 6-12 | 12 | 400 | 0.11 | 340 | 0.17 | 0.50 | 4.00 | 0.3 | 1:50 | 89.21 |
12GAN20-100 | 6-12 | 12 | 300 | 0.05 | 240 | 0.09 | 0.60 | 4.00 | 0.3 | 1:100 | 89.21 |
12GAN20-200 | 6-12 | 12 | 200 | 0.02 | 160 | 0.04 | 1.00 | 7.00 | 1.0 | 1:200 | 89.21 |
12GAN20-298 | 6-12 | 12 | 130 | 0.11 | 100 | 0.18 | 1.50 | 9.00 | 1.0 | 1:298 | 89.21 |
12GAN20-298 | 6-12 | 12 | 100 | 0.04 | 80 | 0.07 | 2.00 | 16.00 | 1.0 | 1:298 | 89.21 |
12GAN20-298 | 6-12 | 12 | 60 | 0.04 | 40 | 0.06 | 2.00 | 16.00 | 1.0 | 1:298 | 89.21 |
