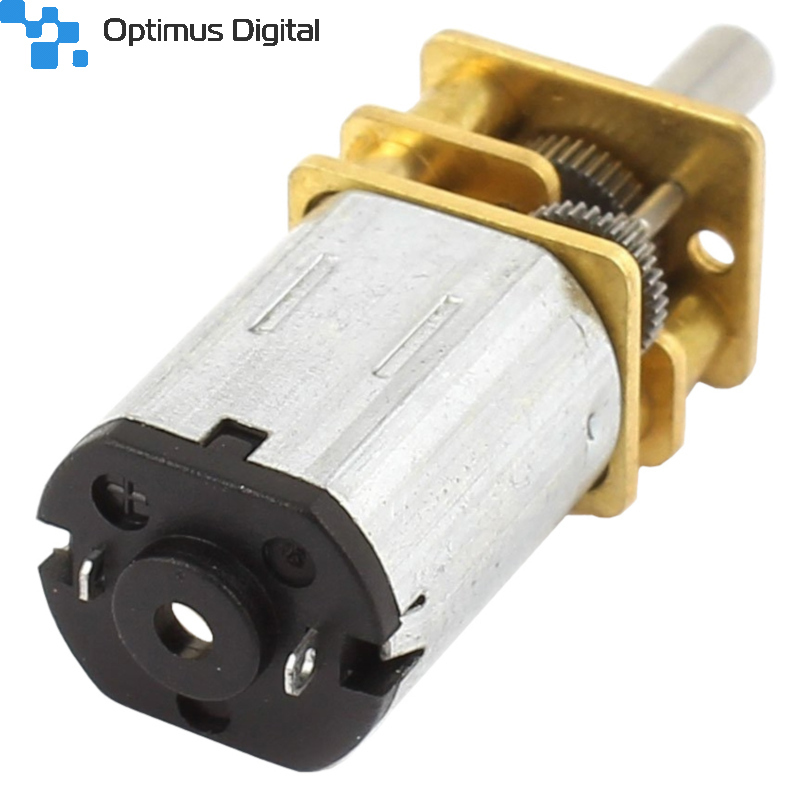

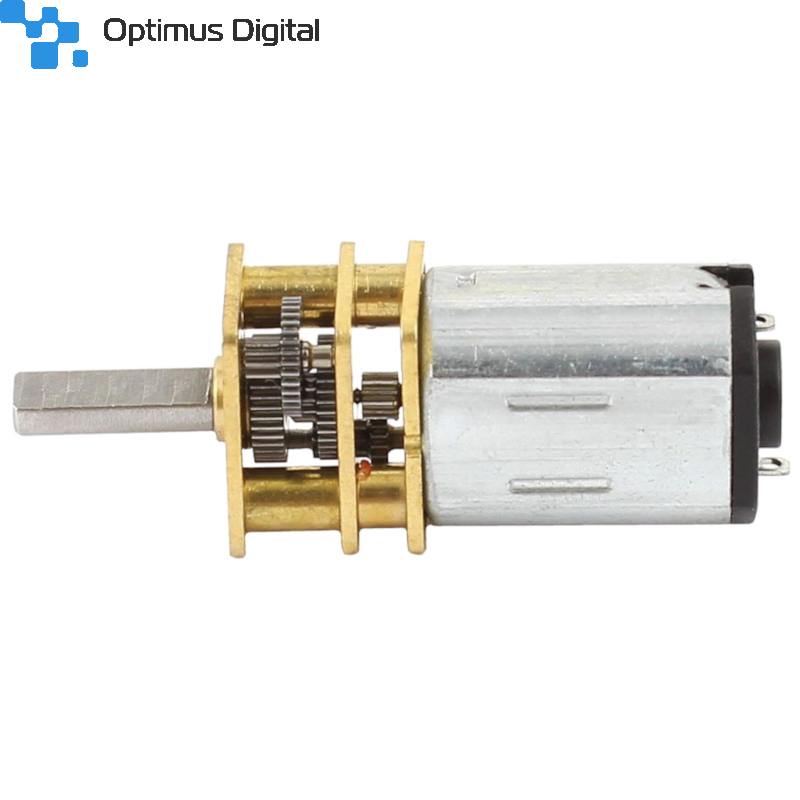

GA12-N20 Micro Gearmotor 12GAN20-50 with 10 mm Long Shaft
0104210000006018
New product
This small and easy, but powerful motor reducer can be useful in building robots.
See description for more details about the product.
Add to cart now!
This product is no longer in stock
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Description
This small and easy, but powerful motor reducer can be useful in building robots. Having a great variety in gear ratio, it will be useful in any type of application.

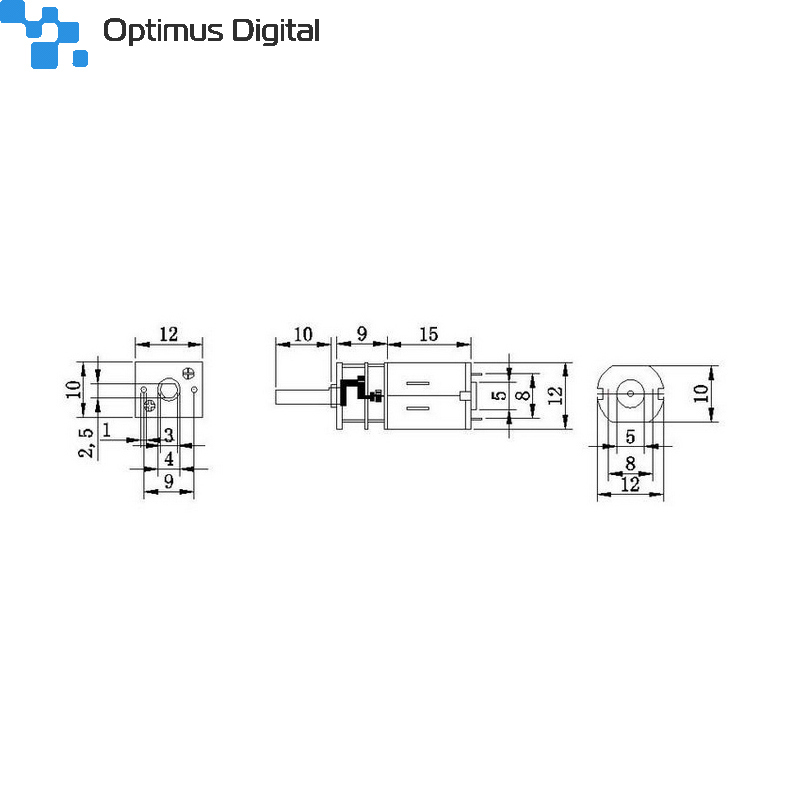

The axis of this engine is 10 mm long.
The parameters related to the current product are highlighted in the table with the parameters of the available engine variants of the same model.
| Model: GA12-N20 | |||||||||||
| tension | Parameters in Empty | Parameters in Task | Parameters in Lock | reducing | |||||||
| Model | acceptable | rated | Speed | Current | Speed | Current | Couple | Couple | Current | report | Weight |
| V | V | rpm | me | rpm | me | kg · cm | kg · cm | A | 1:00 | g | |
| 12GAN20-010 | 1.5-5 | 3 | 1000 | 0.03 | 700 | 0.08 | 0.02 | 0.30 | 0.3 | 1:10 | 89.21 |
| 12GAN20-010 | 1.5-5 | 3 | 500 | 0.01 | 400 | 0.03 | 0.05 | 0.40 | 0.1 | 1:10 | 89.21 |
| 12GAN20-020 | 1.5-5 | 3 | 250 | 0.14 | two hundred | 0.20 | 0.07 | 0.56 | 0.5 | 1:20 | 89.21 |
| 12GAN20-030 | 1.5-5 | 3 | two hundred | 0.03 | 160 | 0.07 | 0.09 | 0.70 | 0.18 | 1:30 | 89.21 |
| 12GAN20-030 | 1.5-5 | 3 | 150 | 0.01 | 120 | 0.03 | 0.10 | 0.80 | 0.23 | 1:30 | 89.21 |
| 12GAN20-050 | 1.5-5 | 3 | 100 | 0.01 | 80 | 0.02 | 0.11 | 1.00 | 0.17 | 1:50 | 89.21 |
