Micro Servo Motor Pololu FEETECH FS90

0104110000027306

New product

The FS90 analog servo from FEETECH is a great general-purpose micro servo at a great price. Servo horns and associated hardware are included. This servo can work with both 5 V and 3.3 V servo signals.

Key specs at 6 V: 0.10 sec/60°, 21 oz-in (1.5 kg-cm), 9.0 g.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$8.64
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Overview

This is a great general-purpose actuator for tiny mechanisms. The FS90 is a 9 g analog servo from FEETECH (formerly known as Fitec) that offers position control over an approximate 120° operating angle for servo pulses between 900 µs and 2100 µs. As with most servos, the pulse range can be expanded to achieve an expanded operating angle, but the limits of this are not specified by FEETECH. The servo has a 8" (200 mm) lead that is terminated with a standard JR-style connector, which is Futaba-compatible, and additional servo horns and mounting hardware are included.

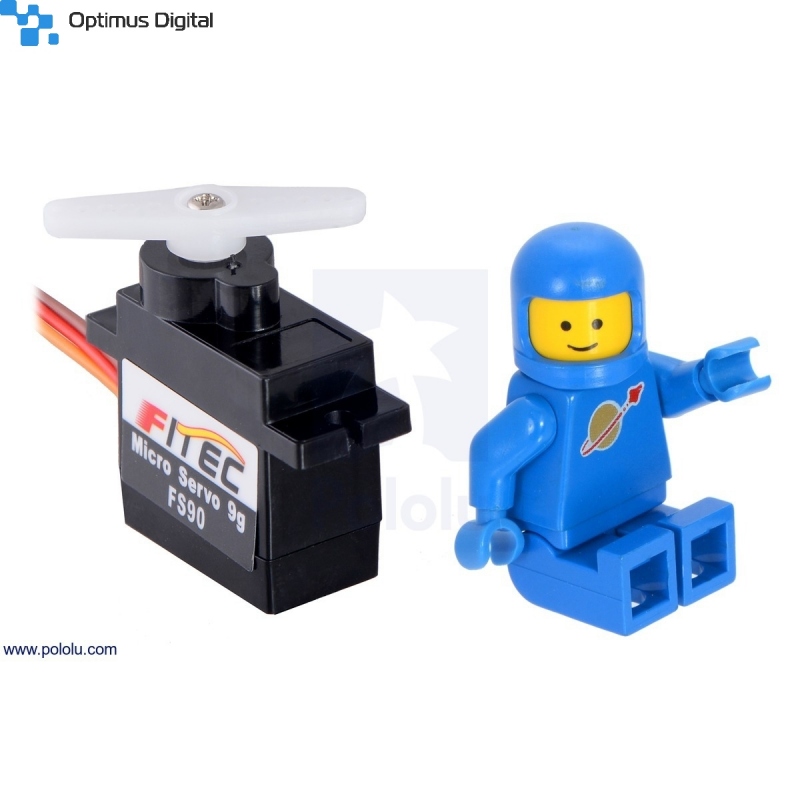

FEETECH FS90 Micro Servo with a LEGO Minifigure as a size reference.

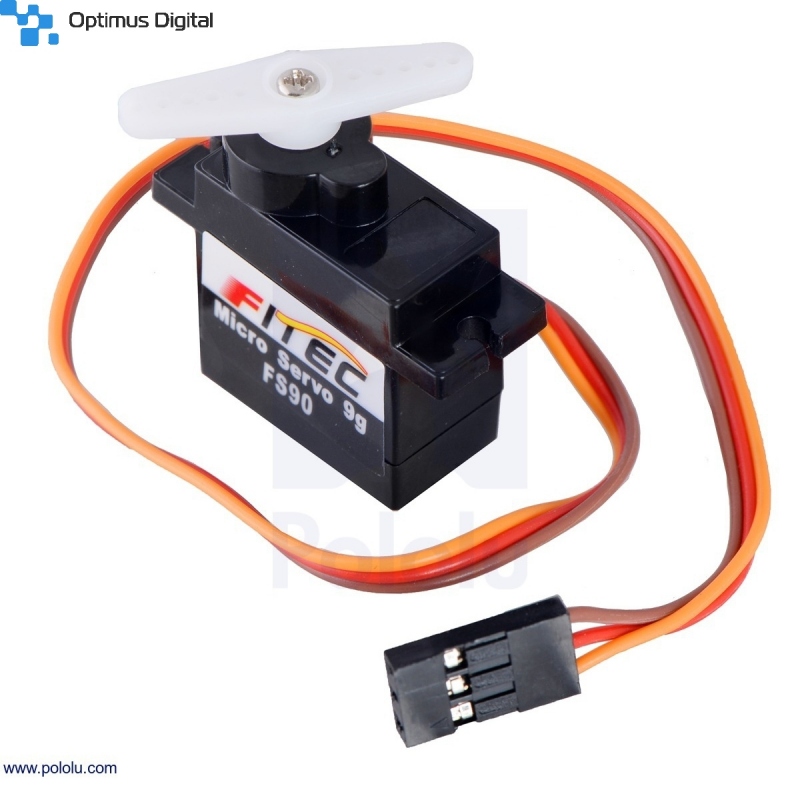

The servo cable is terminated with a Futaba-compatible JR-style connector.

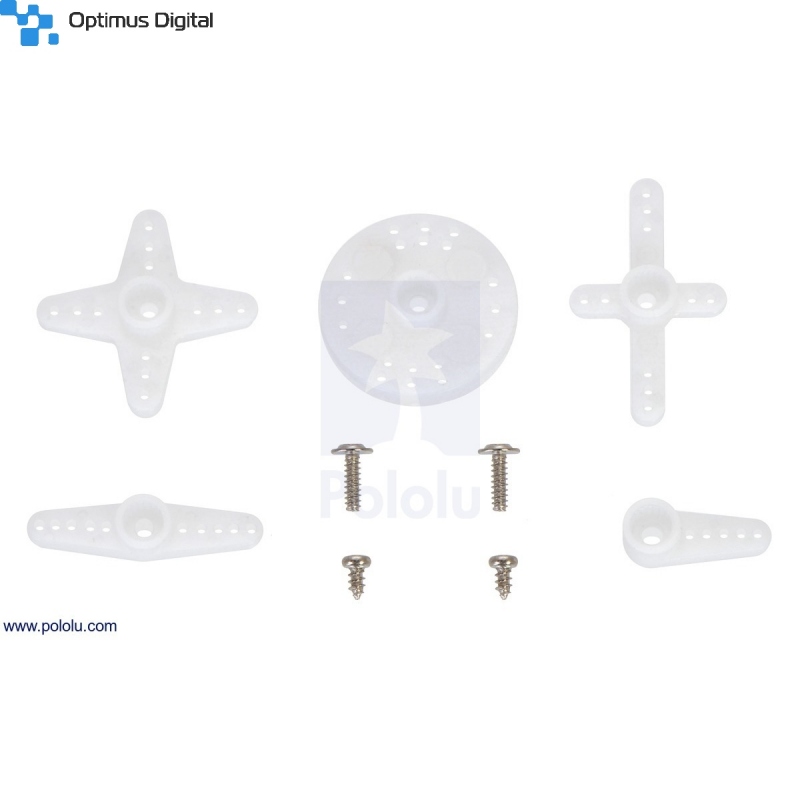

An example of hardware included with the FEETECH FS90 and FS90R micro servos. Actual hardware might vary.


You can find more information about this servo in its datasheet (69k pdf).


FS90 vs FS90R

Two versions of this servo are available. This product is the FS90, which offers closed-loop position control over a limited range. Alternatively, the FS90R is specifically designed to be a continuous-rotation micro servo that offers open-loop speed control. The FS90 and FS90R have identical dimensions and use the same motor, so the FS90 will also work with 60x8mm wheel for the FEETECH FS90R.


Specifications

Dimensions

Size: 23.2 x 12.5 x 22 mm
Weight: 9 g


General specifications

Digital?: N
No-load current @ 6V: 200 mA
Stall current @ 6V: 600 mA1
Speed @ 6V: 0.10 sec/60°
Stall torque @ 6V: 1.5 kg·cm
Speed @ 4.8V: 0.12 sec/60°
Stall torque @ 4.8V: 1.3 kg·cm
Hardware included?: Y
Lead length: 8 in


Notes:

1 This value came from our tests. It is not specified by the manufacturer and therefore could change without notice. Stalling should generally be avoided as it can damage the motor and gears.
