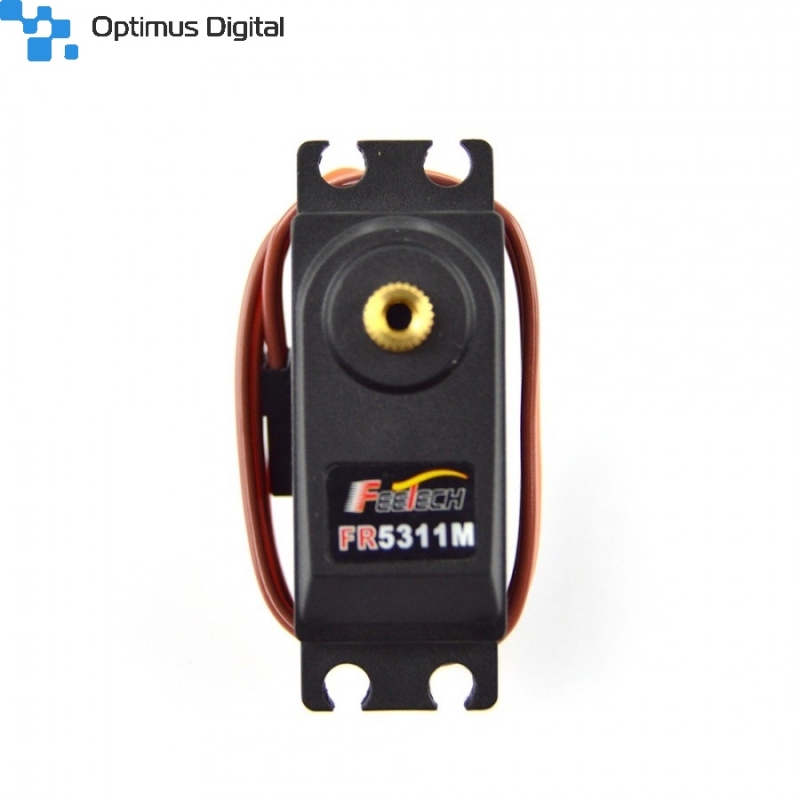

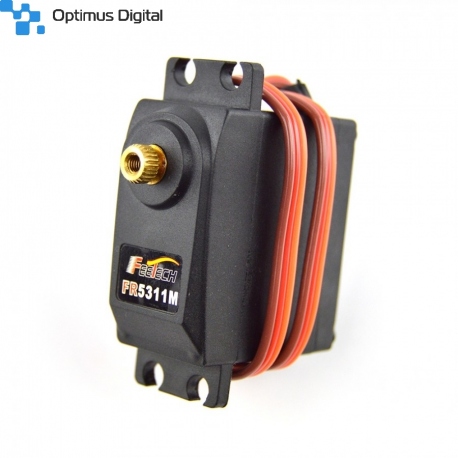

Two Working Mode Digital Programmable Metal Gears Servo FR5311M 360 Degree

Description

Two Working Mode Digital Programmable Metal Gears Servo FR5311M 360 Degree

Features

-Standard digital programmable Metal gears servo、2BB

-High quality core motor, no limits can 360 degree rotation

-Two working mode (servo mode and 360 degree continue rotation mode)

-Operating Voltage: 4.8V-6V

-Dead band width: 2usc

-Interface: (like JR)

-Wire length: 30cm

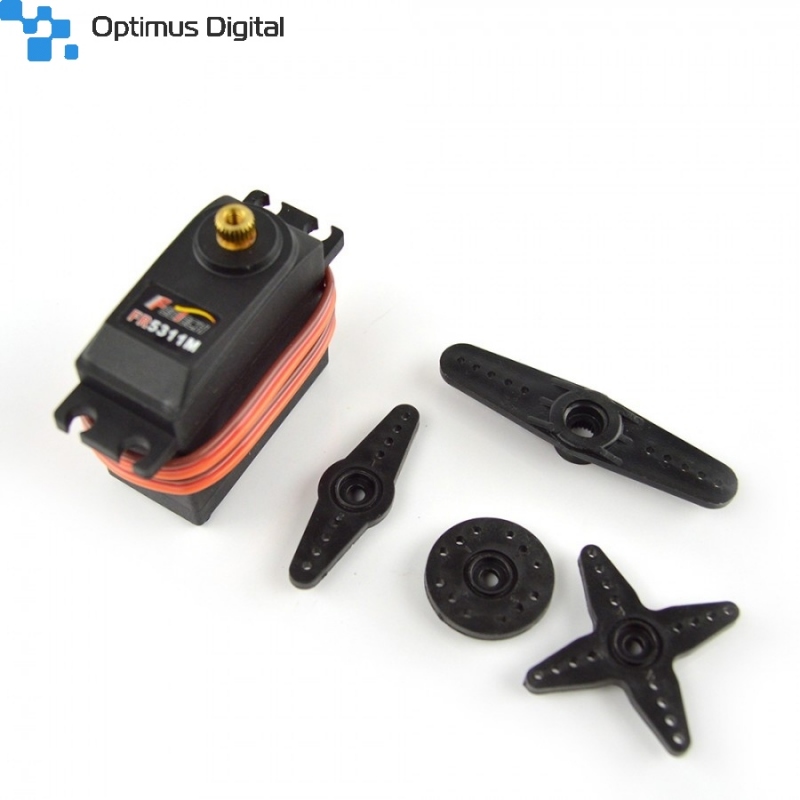

Full Packaged

-Servo×1PCS

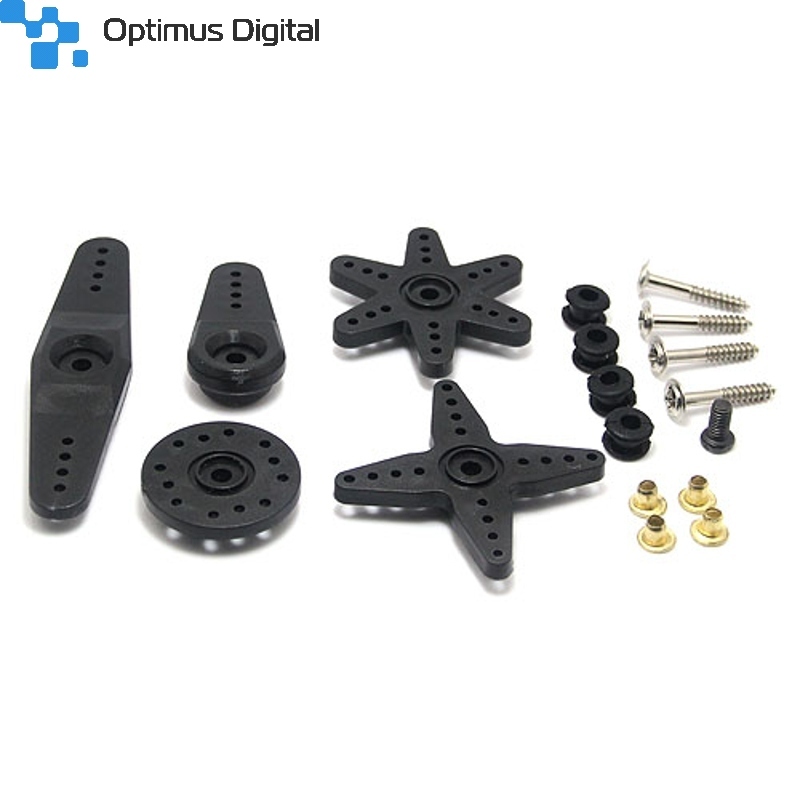

-Servo arm×1 bag

- Carton box

-GW: 86g

Specifications

• Dimensions: 40.2 x 20.0 x 38 mm
• Weight: 58 g
• Operating Speed: 0.15sec/60degree (4.8V) - 0.13sec/60degree (6V)
• Stall Torque: 10.1kg.cm/168.0 oz.in(4.8V) - 14.5kg.cm/201.4oz.in(6V)
• Operating Voltage: 4.8V~6V
• Control System: Digital Programmable
• Direction: CW
• Operating Angle: 280degree
• Required Pulse: 500~2500us
• Bearing Type: 2BB
• Gear Type: Metal
• Motor Type: Carbon
• Connector Wire Length: 30 cm
