New product
1602 LCD with Blue Backlight 3.3 V
See description for more details about the product.
Add to cart now!
105 Item Items
Warning: Last items in stock!
Availability date:

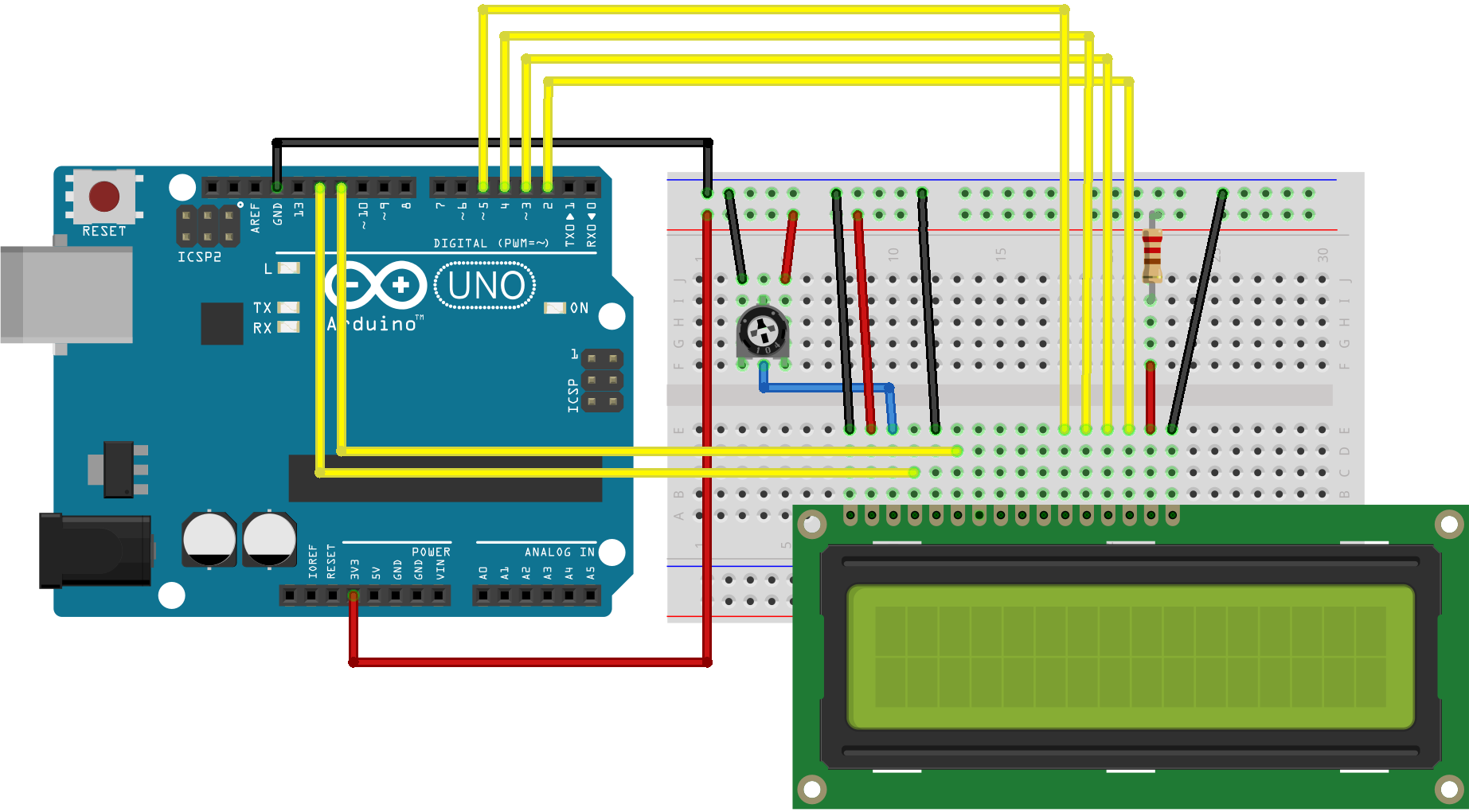

"1602 uses a standard 16-pin interface, where:"
Pin 1: VSS is the ground power
Pin 2: VDD is connected to 3.3 V positive power supply
Pin 3: V0 is the LCD contrast adjustment end. When the positive power is connected, the contrast is the weakest. When the grounding power is used, the contrast is the highest. When the contrast is too high, “ghosting” will occur. When using, you can adjust the contrast through a 10K potentiometer.
Pin 4: RS is the register selection. When the high level is selected, the data register is selected, and when the low level is selected, the instruction register is selected.
Pin 5: R/W is the read/write a signal line. When it is high, it performs a read operation, and when it is low, it performs a write operation. When RS and RW are low together, the instruction or display address can be written. When RS is low, RW can read the busy signal, and when RS is high, RW can be written to the data.
Pin 6: The E terminal is the enable terminal. When the E terminal changes from a high level to a low level, the liquid crystal module executes the command.
Pin 7 to 14: D0 to D7 are 8-bit bidirectional data lines.
Pin 15: Backlight power supply positive
Pin 16: backlight power supply negative
Recomand
Simplu si usor de utilizat:
https://youtu.be/IH4dWBFF_6A
