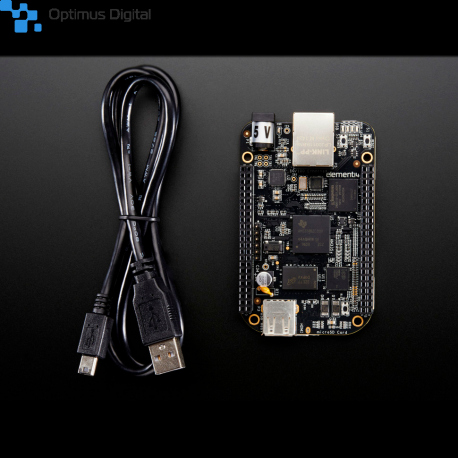

BeagleBone Black Rev C - 4GB - Pre-installed Debian

BeagleBone Black Rev C - 4GB - Pre-installed Debian

The BBB comes with Debian Linux w/the 3.8.13-bone kernel

• Processor: Sitara AM3358BZCZ100 1GHz, 2000 MIPS
• Graphics Engine: SGX530 3D, 20M Polygons/S
• SDRAM Memory: 512MB DDR3L 606MHZ
• Onboard Flash: 4GB, 8bit Embedded MMC
• PMIC: TPS65217C PMIC regulator and one additional LDO.
• Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
• Power Source: miniUSB USB or DC Jack, 5VDC External Via Expansion Header
• PCB: 86.44mm x 54.54mm / 3.4” x 2.15” 6 layers
• 88.98mm x 54.54mm x 15.41mm / 3.5" x 2.15" x 0.6"
• Indicators 1-Power, 2-Ethernet, 4-User Controllable LEDs
• HiSpeed USB 2.0 Client Port: Access to USB0, Client mode via miniUSB
• HiSpeed USB 2.0 Host Port Access to USB1, Type A Socket, 500mA LS/FS/HS
• Serial Port UART0 access via 6 pin 3.3V TTL Header. Header is populated
• Ethernet 10/100, RJ45
• SD/MMC Connector microSD , 3.3V
• User Input: Reset Button, Boot Button, Power Button
• Video Out: 16b HDMI, 1280x1024 (MAX), 1024x768,1280x720,1440x900 w/EDID Support
• Audio Via HDMI Interface, Stereo
• Expansion Connectors:
  • Power 5V, 3.3V , VDD_ADC(1.8V)
  • 3.3V I/O on all signals
  • McASP0, SPI1, I2C, GPIO(65), LCD, GPMC, MMC1, MMC2, 7 AIN(1.8V MAX), 4 Timers, 3 Serial Ports, CAN0, EHRPWM(0,2),XDMA Interrupt, Power button, Expansion Board ID (Up to 4 can be stacked)
• Weight 40.55g / 1.43oz

The BBB manual has lots of starting information and pointers for getting the most of your BeagleBone Black
