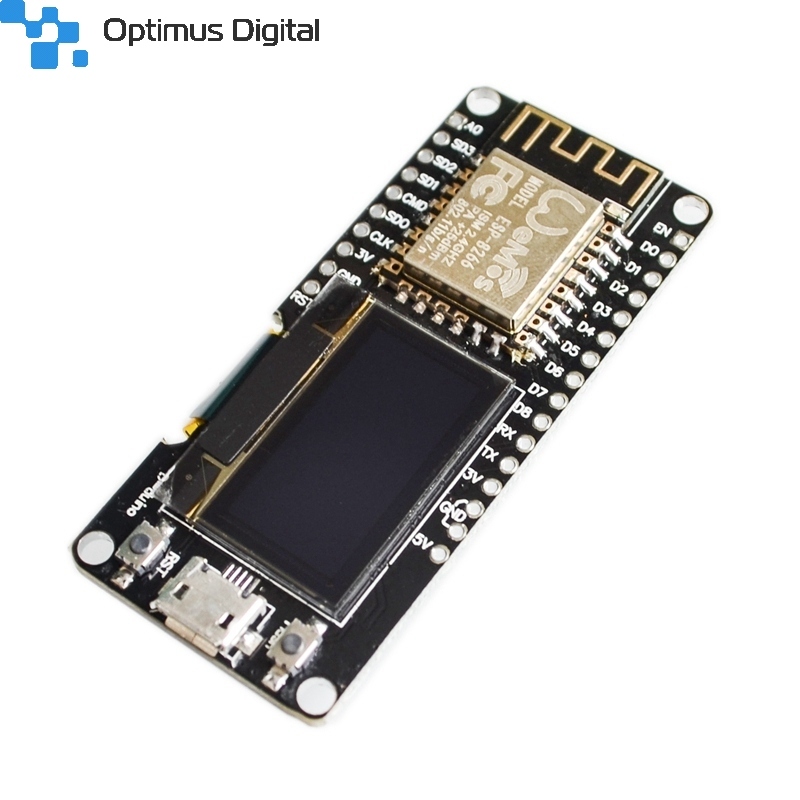

ESP8266 Development Board with OLED and WiFi

0104110000035813

New product

This development board is compatible with Arduino, it can be programmed using the Arduino IDE, has built-in WiFi and a 0.96" integrated OLED Display on which you can show some useful information.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

89,00 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info



Desciption and Specifications

Build your own projects using this board. It has the ESP8266 Microcontroller which has built-in WiFi and can be used for communication at a distance or even on the Internet. Also, it has an integrated 0.96" OLED Display that you can use to show some information about some sensors or custom ones.

  • 12 Digital I/O pins
  • 1 Analog Input pin
  • 0.96" OLED Display
  • MicroUSB port
  • Compatible with Arduino and NodeMCU
  • Programmable using Arduino IDE

At this address you can find a GitHub page with some useful information.


Don't delay. Buy today.


Add to cart now!

Reviews

Grade
06/20/2018

Fain

Placa merge foarte bine, se identifica ca board WeMos D1 R2 & Mini. Wifi se conecteaza aproape instant. Timp de raspundere la un server http e foarte rapid. OLED alb-negru, incape 5 linii de text cu font de 10. Vine deja un demo preinstalat. Atentie, pentru OLED ca sa mearga libraria mentionata in descriere trebuie sa schimbati linia:
SSD1306 display(0x3c, D3, D5) cu
SSD1306 display(0x3c, D1, D2).

  • 6 out of 6 people found this review useful.
Grade
06/20/2018

Fain

Placa se identifica ca board: WeMos D1 R2 & Mini. WiFi se conecteaza foarte repede, timp raspuns la un exemplu de http server e foarte bun. OLED alb-negru super ok, incapa 5 randuri de text cu font 10. Atentie OLED merge bine cu libraria mentionata la descriere daaar trebuie schimbata o linie! Deci in toate exemplele legate de OLED se initializarea se face cu
SSD1306 display(0x3c, D3, D5) si asta nu e corect (nu o sa vedeti nimic), corect se face:
SSD1306 display(0x3c, D1, D2);

  • 1 out of 1 people found this review useful.
