Maker Pi Pico Base

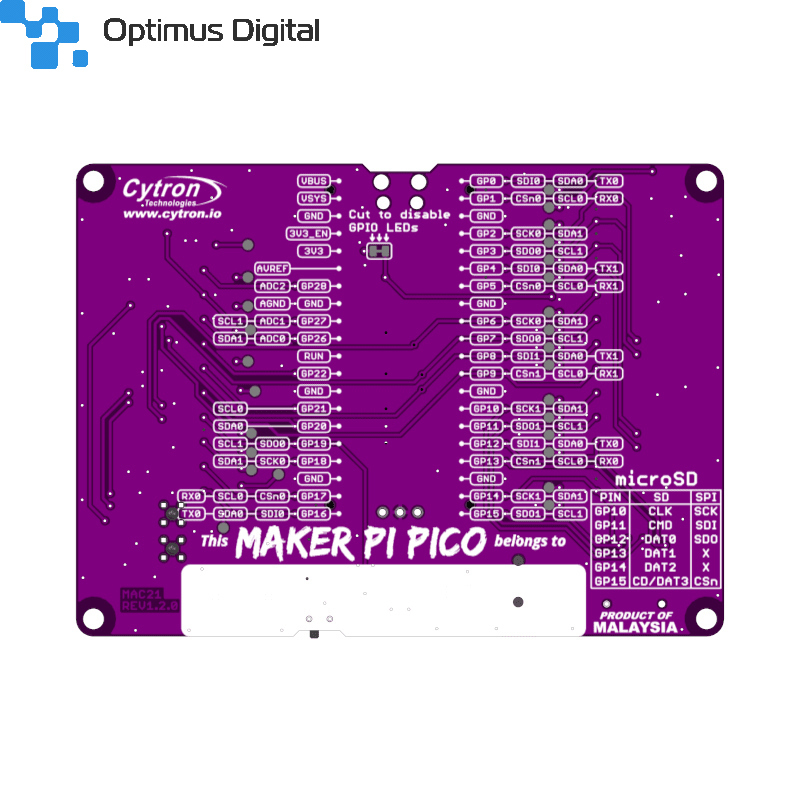

Maker Pi Pico Base incorporates the most wanted Reset button for your Raspberry Pi Pico and gives you access to all GPIO pins on two 20 ways pin-headers, with clear labels. Each GPIO is coupled with an LED indicator for convenient code testing and troubleshooting. The bottom layer of this board even comes with a comprehensive pinout diagram showing the function of each pin.

It is a compact yet feature-packed board designed to sit at the heart of your STEM & robotics projects. Just use the jumper wires and/or Grove cables to connect any sensor and output modules to expand its capability.

Features:

• Access to all Raspberry Pi Pico's pins on two 20 ways pin headers
• LED indicators on all GPIO pins
• 3x programmable push button (GP20-22)
• 1x RGB LED - NeoPixel  (GP28)
• 1x Piezo buzzer (GP18)
• 1x 3.5mm stereo audio jack (GP18-19)
• 1x Micro SD card slot (GP10-15)
• 1x ESP-01 socket (GP16-17)
• 6x Grove port

Package includes:

• 1 x Maker Pi Pico

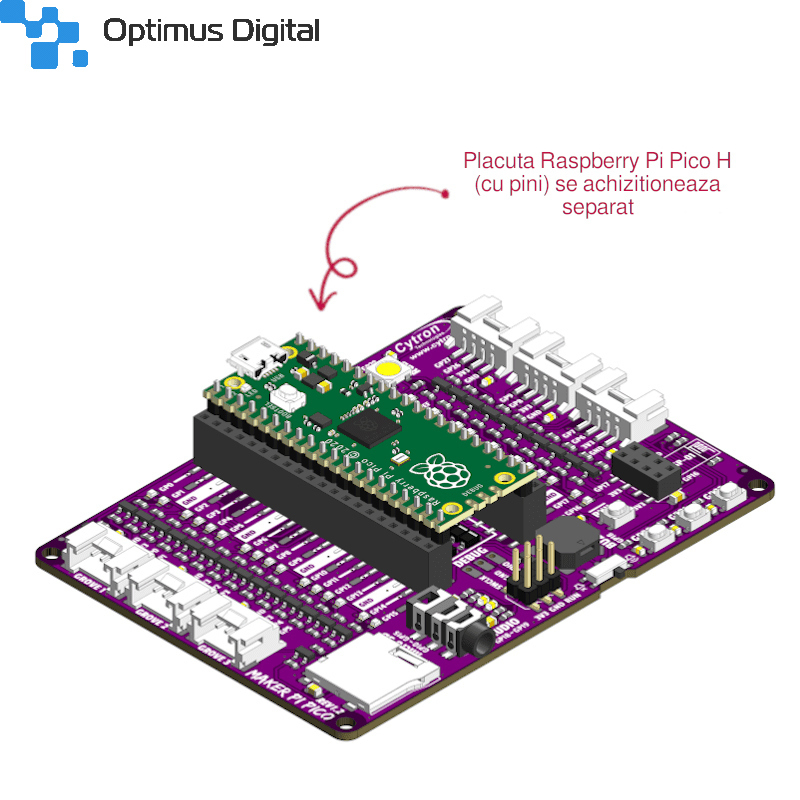

  (Raspberry Pi Pico is not included in the package, but necessary - can be bought separately)

To use Maker Pi Pico, it's necessary to buy Raspberry Pi Pico separately. There are 3 Raspberry Pi Pico versions you can buy separately:

1. Raspberry Pi Pico H - this version already has soldered pin headers so you don't need to solder anything else. You can simply connect it to Maker Pi Pico and get started.
2. Raspberry Pi Pico - this version doesn't have soldered pin headers. You have to also buy the pin headers and solder them on the Raspberry Pi Pico board before you can use it with Maker Pi Pico.
3. Raspberry Pi Pico W - this version doesn't have soldered pin headers. You have to also buy the pin headers and solder them on the Raspberry Pi Pico W board before you can use it with Maker Pi Pico.
