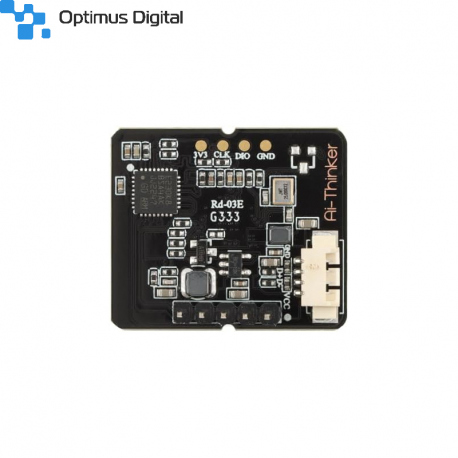

Rd-03E Radar Module

Specifications:

• DIP package, standard 2.54mm pin
• Radar support 24 GHZ ISM frequency band
• Precise indoor and outdoor human movement, micro-motion sensing and distance, gesturerecognition detection
• The radar antenna supports 1 receive and 1 transmit, antenna beam narrow, high resolution, frequency bandwidth, strong anti-interference
• Provides visual tools to support configuration of detection distance intervals and settingsensitivity by range gate
• The longest distance for sensing a moving human body is 6 m, and the longest distanceforsensing a slight human body is 3.5 m
• High precision ranging：30 cm~350 cm±5 cm；350cm~600 cm±5% Accurate distance measurement, detection range of human body sensor module ±20°inazimuth, ±45°in elevation
• Gesture recognition detection range: azimuth angle ±20°, elevation angle ±40° Ultra small module size：28*24mm
• Automatically load the default configuration, plug and play
• Support UART. Intelligent parameter adjustment of the radar can be realized throughtheserial port, which is convenient and fast
• 5V single power supply
• Wall mount

Typical application scenarios:

• Smart home appliances
• Intelligent business
• Smart Security
• Smart lighting
