US-026 Ultrasonic Distance Sensor (3 - 5.5 V)

Description

The US-026 ultrasonic ranging module can realize the non-contact ranging function of 2cm~6m, the working voltage is 3V-5.5V, the working current is 5.3mA, it supports GPIO communication mode, and the work is stable and reliable.

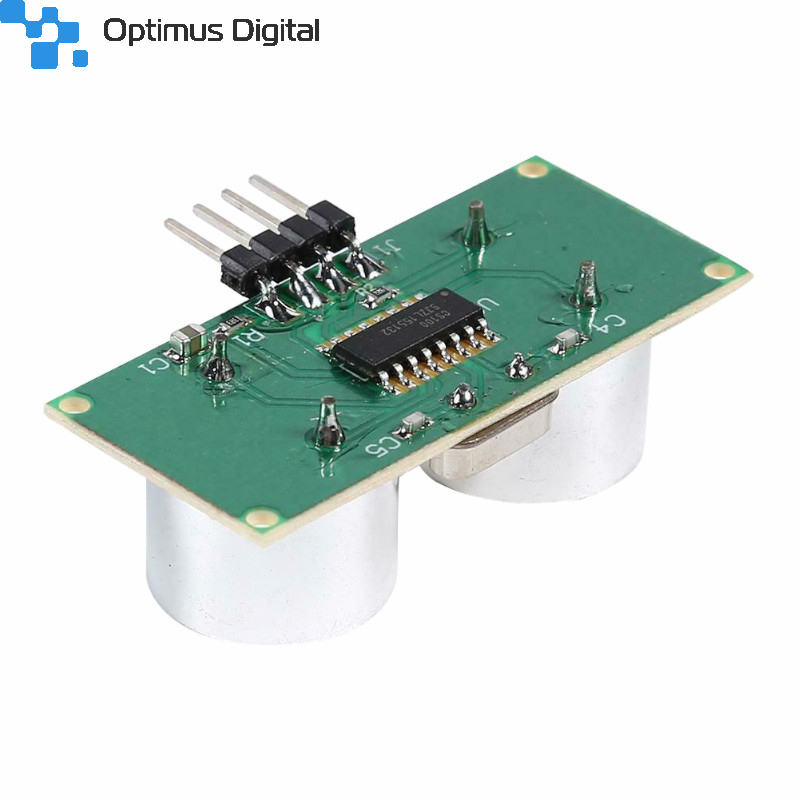

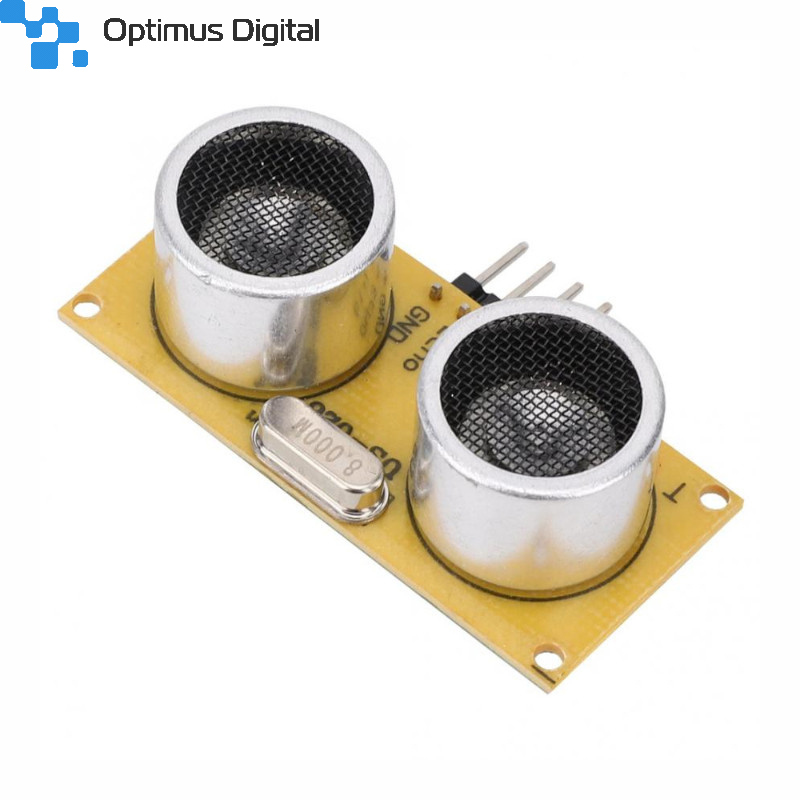

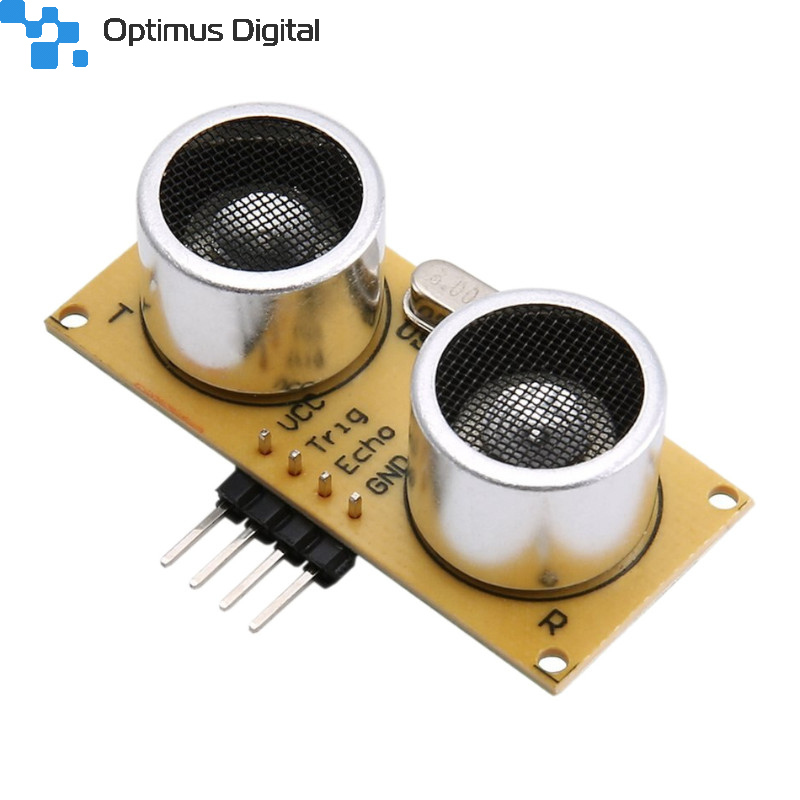

US-025 and US-026 have the same performance, the same size, and the same principle. The only difference is US-025 uses a double panel while US-026 uses a single panel. The 4Pin header of US-025 is soldered on the front side (probe side). US-026, on the other hand, is a single-sided board, the front side (probe side) has no pads, and the pads are soldered on the back side (chip side).

Specifications

• Operating Voltage: DC 3V-5.5V
• Working current: 5.3mA
• Operating temperature: -40^oC-85^oC
• Output method: GPIO
• Sensing angle: Less than 15 degrees
• Detection distance:2cm-600cm
• Detection accuracy: 0.1cm+1%
