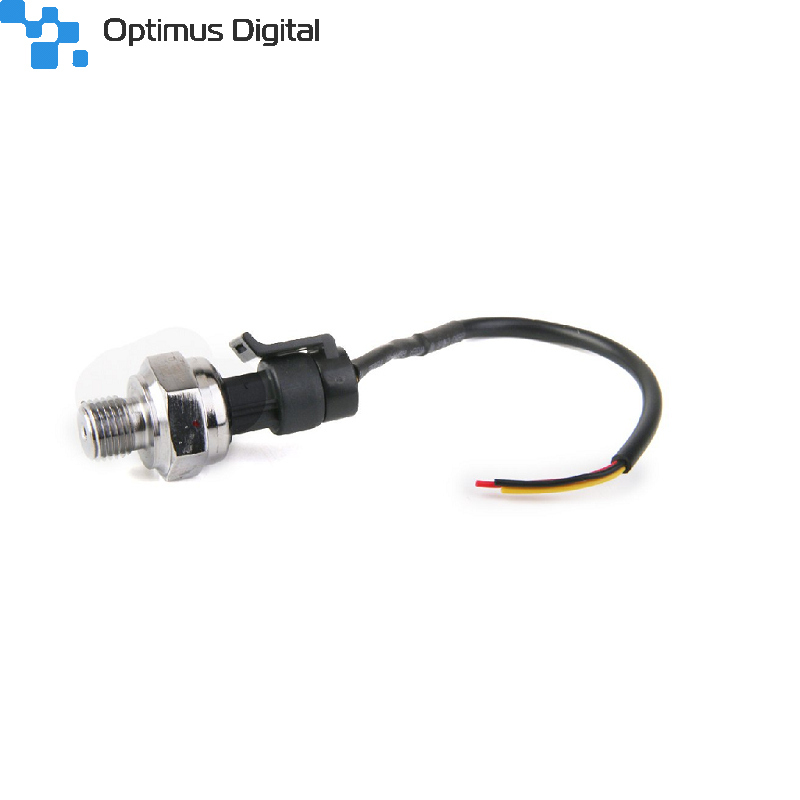

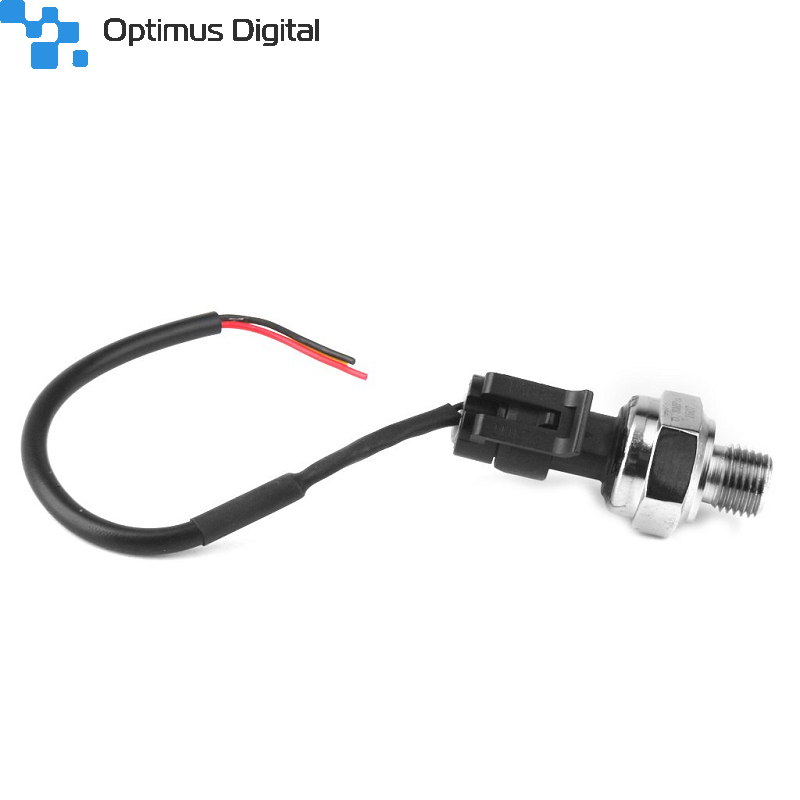

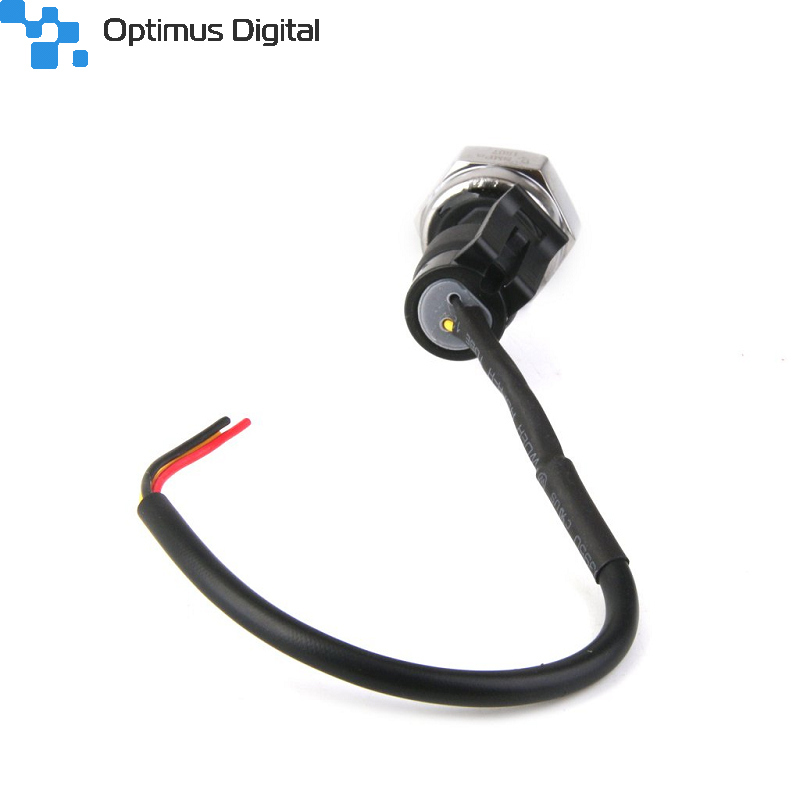

1.2MPa Stainless Steel Pressure Transducer Sensor

Description

The Pressure Transducer is made from High-Quality stainless steel material providing it with rigidity. The transducer comes with a standard thread size of G1/4 and can work in both air and water. The sensor gives a digital output in the range of 0.5V to 4.5V while operating at 5VDC. The sensor has stable performance characteristics with a long operation life.

Applications

1. Pressure Detection in Oil Tank, Gas Tank.

Features

1. Adopt Precision Compensation Technology and Sensitive Components, Stable and Reliable.
2. 0.1% FS Small Output Error, Including Nonlinear, Hysteresis Error, and Repeatability.
3. Light Weight and Small Volume, Easy to Install, and Operate.
4. Stainless Steel Body, it has Complete Surge Voltage Protection Function.

Specifications

• Sensor Type: Analog Pressure Sensor
• Material: Stainless Steel
• Thread Size: G 1/4"
• Pressure Range (MPa): 0 - 1.2
• Operating Voltage (VDC): 5
• Output Voltage (VDC): 0.5 ~ 4.5
• Accuracy: 1% FS
• Length (mm): 50
• Width (mm): 20
• Height (mm): 20
• Weight (gm): 70

Package Includes

1 x 1.2MPa Stainless Steel Pressure Transducer Sensor
