> >>HR202 Humidity Sensor Module

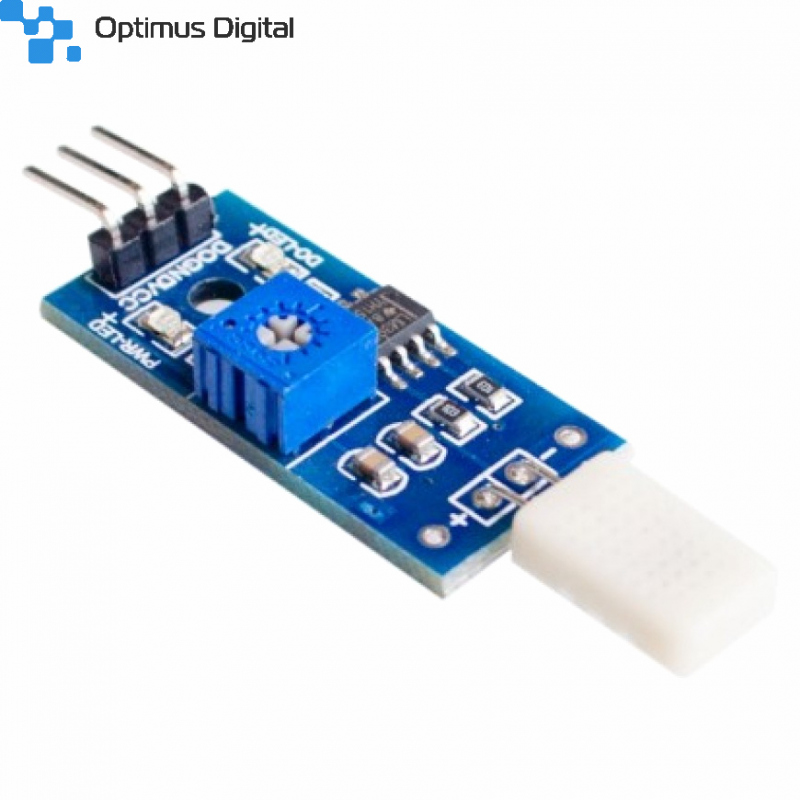

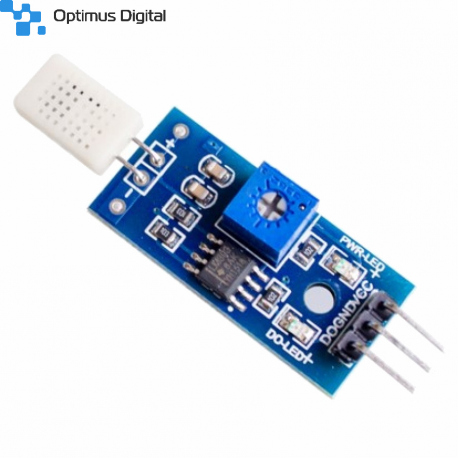

HR202 Humidity Sensor Module View larger
Previous Next

Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

HR202 Humidity Sensor Module

0104110000023728

New product

Moisture Sensor Module HR202 useful for projects where you need to measure humidity in certain enclosures.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$2.40
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Technical specifications

  • Power supply: 3.3V - 5V
  • Current consumed very little
  • Output digital
  • Comparator LM393
  • Threshold adjustable comparator threshold
  • Maximum output current comparator: 15mA
  • Measured humidity: 20 - 95% RH
  • Center Resistance Value: 31kOhm
  • Accuracy: 5% RH
  • Hysteresis: 1% RH
  • Recommended operating temperature: 0 - 60 degrees
  • Response time: <10s

Dimensions: 32 x 14 mm.

This product is a humidity sensor module HR202 very useful to measure humidity in a room with a very good accuracy, namely 5% RH. The sensor has a very low response time of up to 10 seconds, which makes it useful to collect real-time data.

The module contains two LEDs, one to indicate the presence of the power supply, and the other to indicate the logic output value.

With this product you can design innovative electronics projects using Arduino development pads. For example, with the help of other sensors you can build a smart greenhouse.


Don't delay. Buy today.


Add to cart now!

Reviews

Grade
03/02/2017

Datasheet

Salut, datasheet-ul il gasesti mai in josul paginii.

  • 1 out of 1 people found this review useful.
Grade
02/13/2017

Datasheet

A reusit cineva sa il conecteze la Arduino si sa faca o citire? Sau a gasit cineva vreo-un Datasheet pe internet?

  • 1 out of 1 people found this review useful.

Write your review!

Write a review

HR202 Humidity Sensor Module

HR202 Humidity Sensor Module

Moisture Sensor Module HR202 useful for projects where you need to measure humidity in certain enclosures.


See description for more details about the product.

Add to cart now!

Customers who bought this product also bought:

Download

Datasheet HR202

Download (109.95k)
