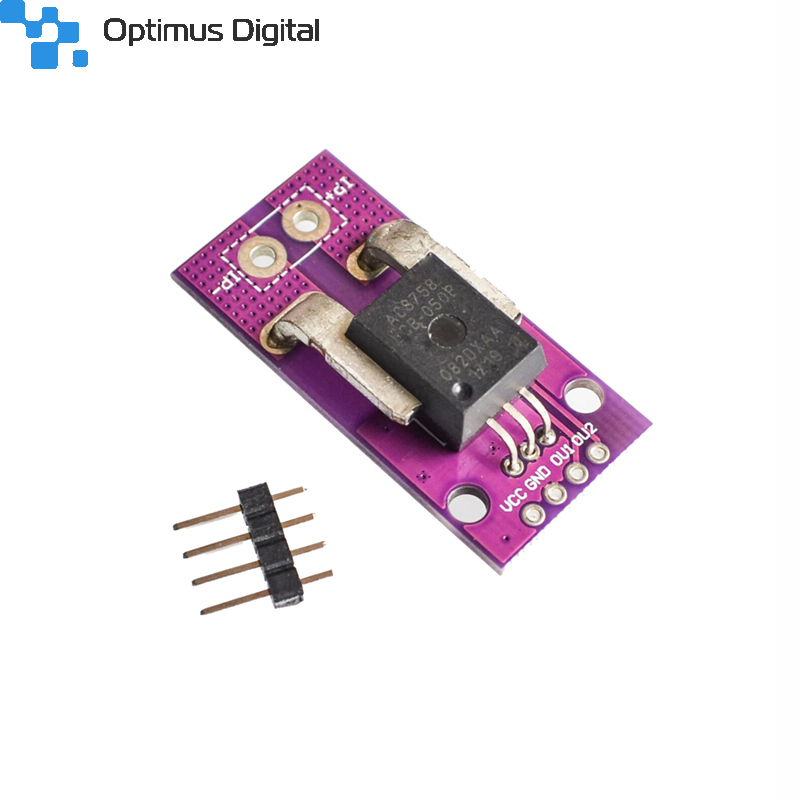

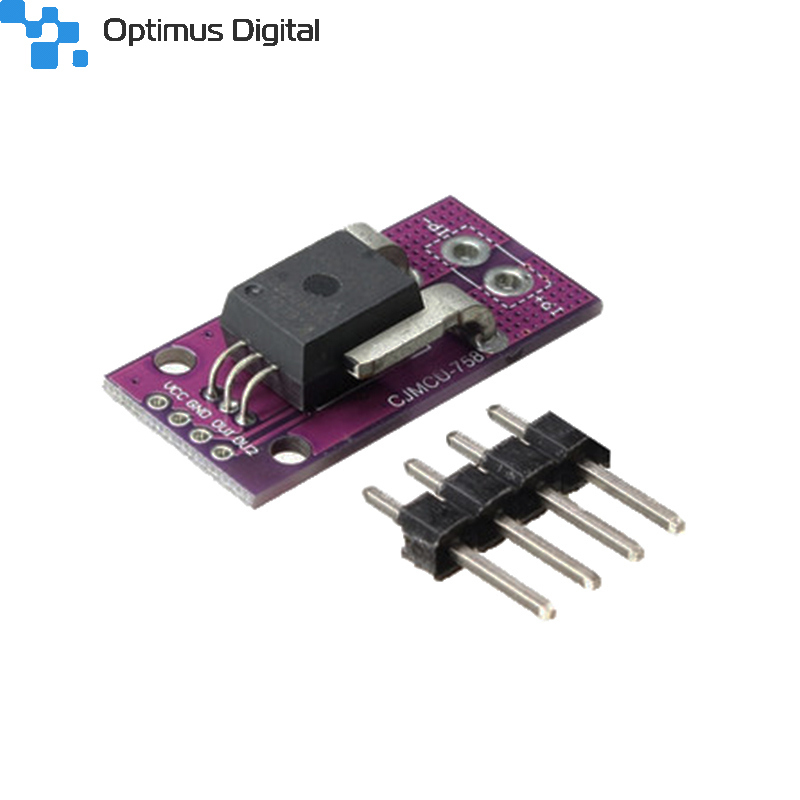

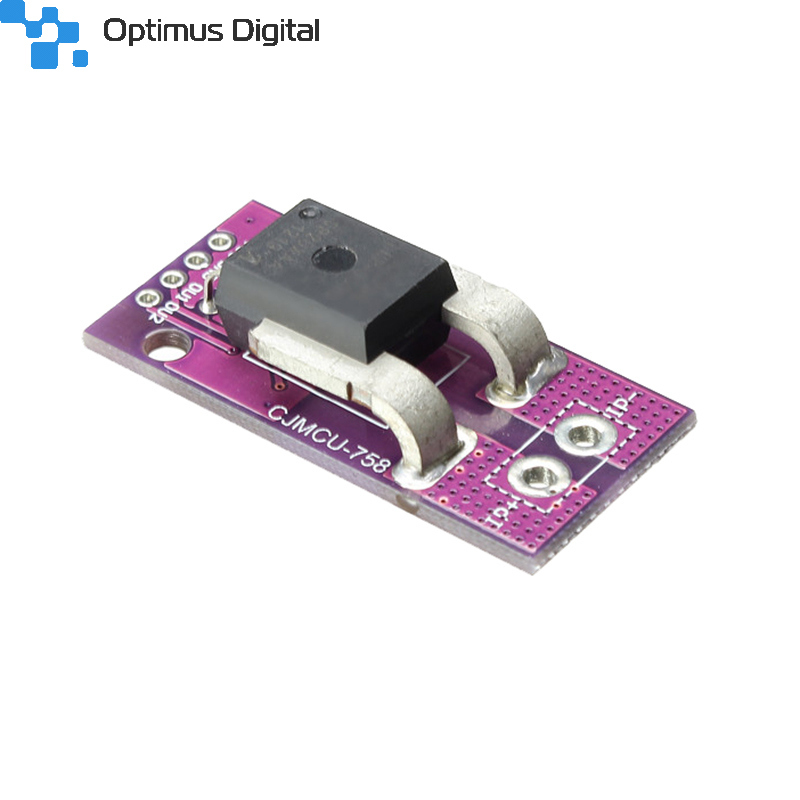

ACS758LCB-050B-PFF-T Current Sensor Module Based on Hall Effect

Features

• Industry-leading noise performance through proprietary amplifier and filter design techniques
• Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high voltage applications
• Total output error improvement through gain and offset trim over temperature
• Small package size, with easy mounting capability
• Monolithic Hall IC for high reliability
• Ultra-low power loss: 100 μΩ internal conductor resistance
• Galvanic isolation allows use in economical, high-side current sensing in high voltage systems
• AEC Q-100 qualified
• 3.0 to 5.5 V, single supply operation
• 120 kHz typical bandwidth
• 3 μs output rise time in response to step input current
• Output voltage proportional to AC or DC currents
• Factory-trimmed for accuracy
• Extremely stable output offset voltage
• Nearly zero magnetic hysteresis

Specifications

• Voltage: 3.3 V - 5 V
• Working temperature: -40^oC ~ 150^oC

Applications

• Motor control
• Load detection and management
• Power supply and DC-to-DC converter control
• Inverter control
• Overcurrent fault detection
