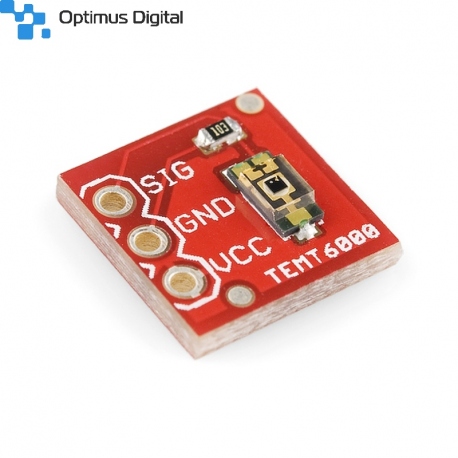

Modul cu Senzor de Lumină Ambientală TEMT6000

Technical specifications:

• supply voltage: 3.3V - 5V;
• only detects light from the visible spectrum (390-700 nm);
• collector - emitter voltage: 6V;
• emitter - collector voltage: 1.5V;
• current consumption: 20 mA;
• optimal operating temperature: -40 ° C to 100 ° C;
• sensor type: analog (returns a value directly proportional to light intensity);
• detection angle: 60 °;

Use:

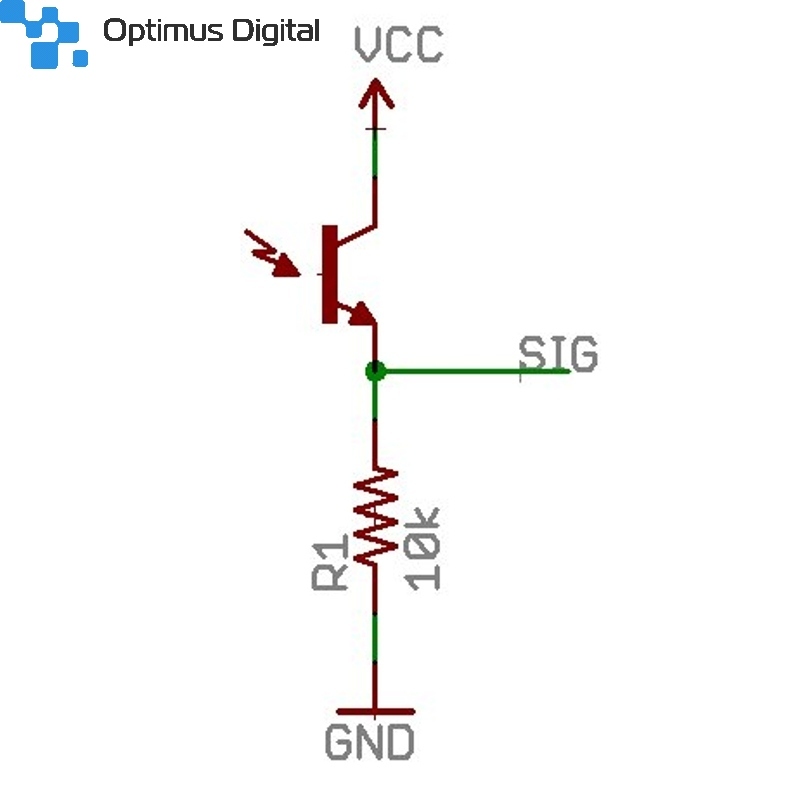

The TEMP6000 is ideally suited for integration into projects that need to adjust the brightness according to ambient light. This module is based on a phototransistor, a component commonly found in laptops, phones or smart TVs.

An example of a project where this sensor can be used is an office clock. The module takes up the intensity of ambient light and adjusts the brightness of the LCD screen to avoid discomfort at night.

Useful Links:

• example code

• Useful information about light

• manufacturer page
