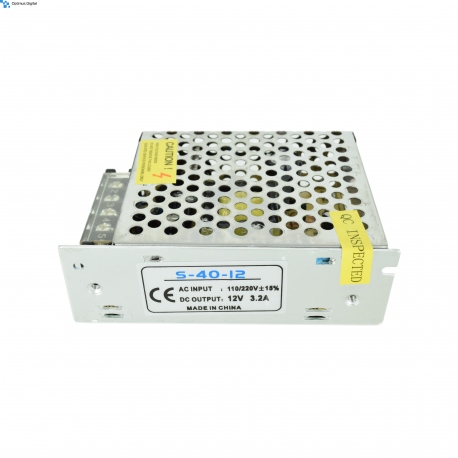

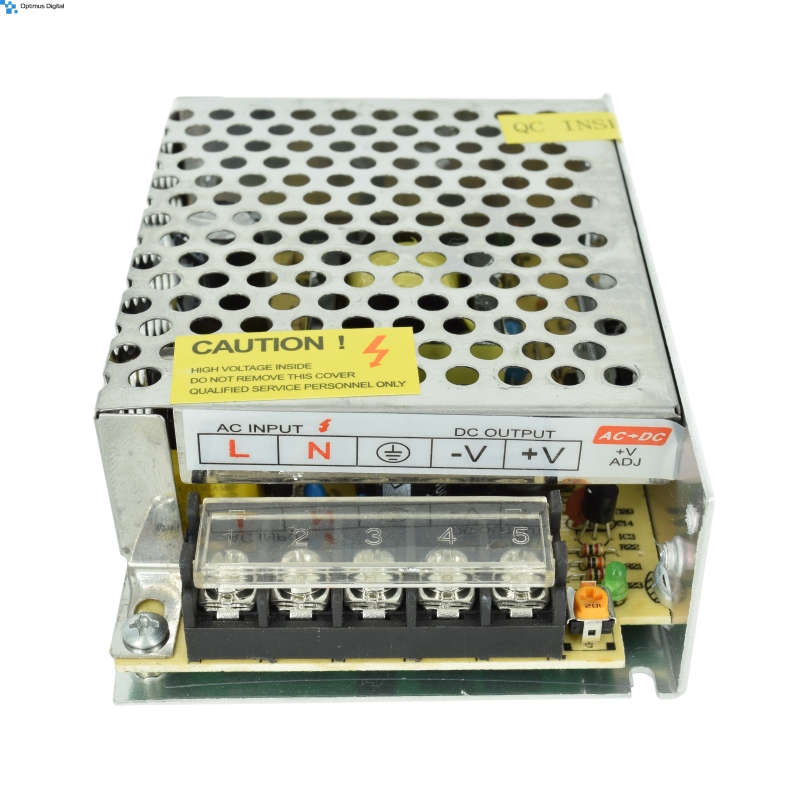

12 V 3 A (36 W) Switched Mode Power Supply

Overview

This switched mode power supply is widely used in electronic equipment in keeping voltage stability.

It is made of high quality metal material, durable, and very reliable which ensures that it will give you a good performance.

This switching power supply is can be installed easily and very easy to be turned on and off.

Specifications

• Input Voltage: 100 to 220 V AC
• Protection function short circuit/ overload/ over-voltage

• 100% full load aging test
• Input Voltage and Frequency Range: 100 V to 220 VAC
• Overload Protection: 105 % to 200 %(rated load), self-recovery
• Impact Current: 20 A @ 120 VAC (cold start)
• Output Adjustment Range: ± 10% (rated output voltage)
• Over-voltage Protection: 115% to 135% (rated output voltage)
• Short-circuit Protection: self-recovery
• Output start-up time : ≤2S @ 120VAC ≤1.0S@230VAC
• Output hold time: ≥10mS @ 120VAC, ≥20mS @ 230VAC
• Dielectric strength:  Input - Output: AC1500V, 1min
  • Input - Chassis: AC1500V, 1min
  • Output - Chassis: DC500V, 1min
• Working environment: -10 ^oC to 50 ^oC; 20% to 90% RH (no condensation)
• Shell Material: Metal case / Aluminum base
• Widely used in Industrial automation, LED display, communications, etc.

Features

• Built-in EMI filter, anti-jamming performance
• Design soft start circuit, AC inrush current limit
• Low working temperature, long service life
• Insulation performance, high electric strength
• Full load high temperature burn-in 100% aging test
• Wide input voltage range, in line with global standards
• Small size, light weight, beautiful appearance
• With short circuit, overload, over-voltage protection
