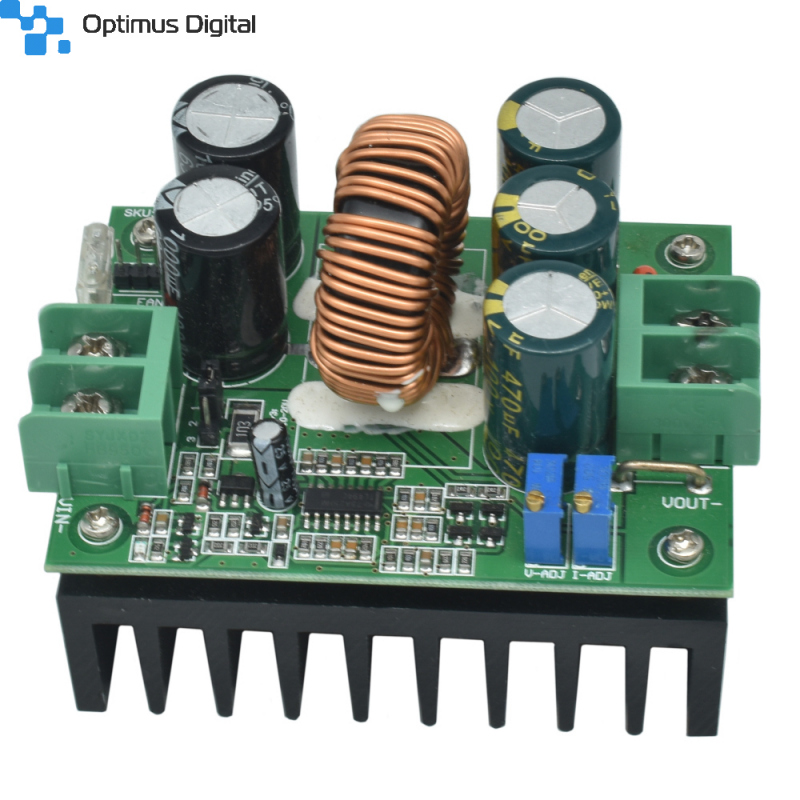

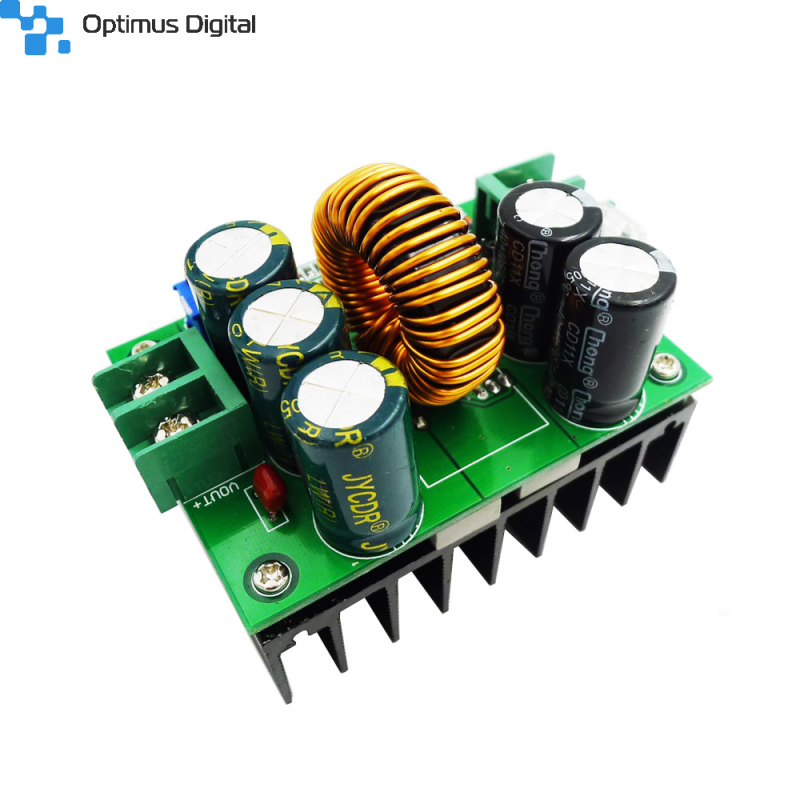

1200 W DC-DC Boost Module

Overview

This is a DC-DC boost module 1200 W for projects that require a higher voltage. This module is capable of increasing the voltage from 12 V to 80 V.

Specifications

• 1200 W boost mode
• How non-isolated step-up
• Input voltage: 8 V to 60 V
• Input current: 20 A
• Static Current: 15 mA
• Output voltage: 12 V to 80 V adjustable
• Output current: 20 A to 18 A
• Output Power: 20 A * Input voltage (12 V * 20 A = 240 W, 24 V * 20 A = 480 W)
• Operating temperature: -40 ^oC to + 85 ^oC
• Frequency: 150 kHz
• Conversion efficiency: 95%
• Over-voltage protection, short circuit, reverse polarity
• Grip: 4 screws 3mm
• Dimensions: 85 x 63 x 64 mm
