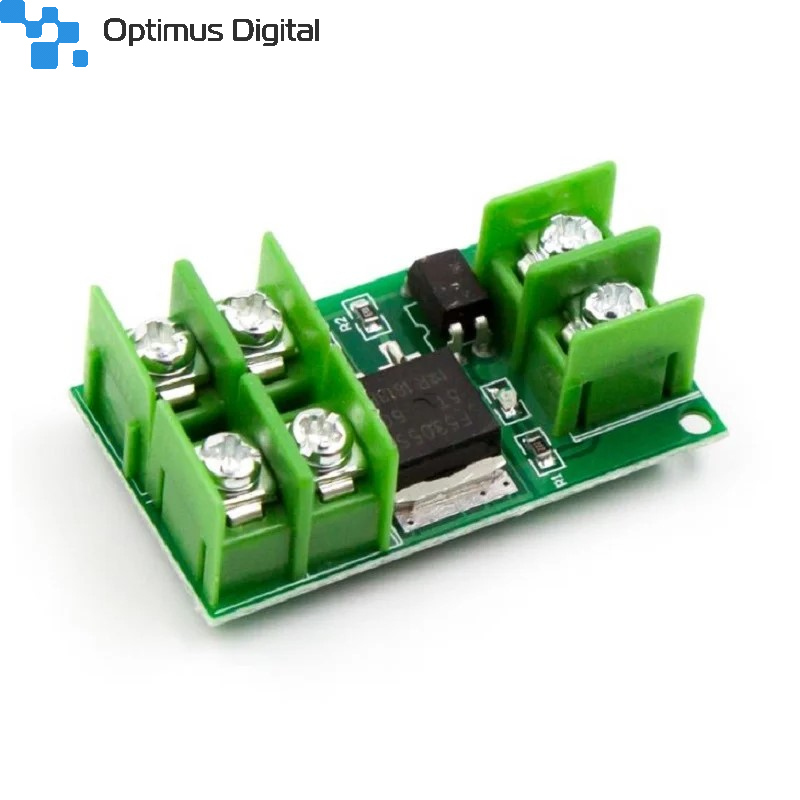

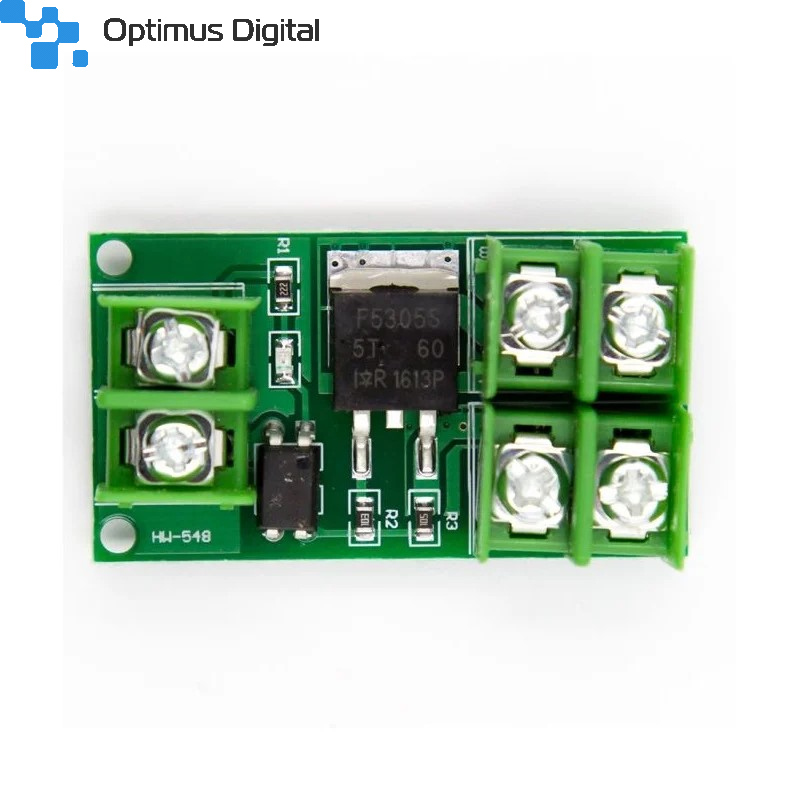

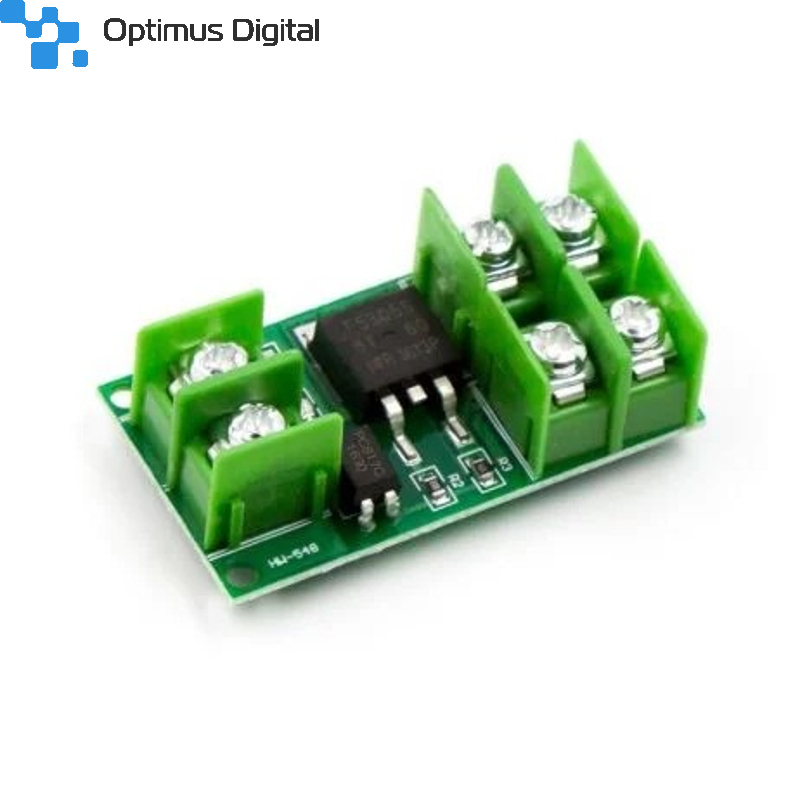

MOSFET Electronic Switch DC Controlling Board

Description

The F5305S Power Mosfet Module is based on the FET model of the new original F5305S. We can input PWM signal for motor control Speed, lightness, etc.

Features:

1. In the FET module, the input and output are completely isolated from each other.
2. Signal trigger terminal: digital high and low level. Can be connected to the microcontroller IO port, PLC interface, DC power supply, etc.
3. The output can control high-power equipment, motors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.
4. Using the original F5305S power FET, you can input PWM, control motor speed, the brightness of the lamp, etc.
5. Trigger signal: digital high/weak signal, can be connected to IO microcontroller, plc interface, DC power supply, and so on.
6. Output data can control powerful devices: motor, light bulb, light and strips, DC motor, small pumps, solenoid valve.

Specifications

• Input Voltage (V): 3 ~ 20
• Input Current: 5mA
• Output Voltage(V): 5 ~ 35
• Max. Output Current (A): 5
• Length (mm): 46
• Width (mm): 25
• Height (mm): 18
• Weight (gm): 12

Package Includes:

1 x MOSFET Electronic Switch DC Controlling Broad.
