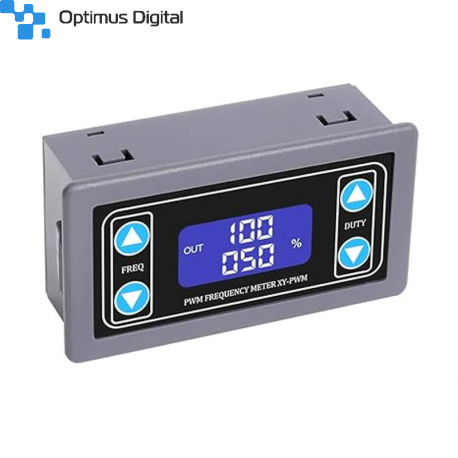

Digital PWM Generator with Display

Description

This is a PWM generator, which is housed in a protective shell. It can generate a PWM frequency from 1Hz to 150KHz.
This device can be used where an accurate and reliable source of PWM is required.

Connection Diagram

Features:

1. Bright LCD Display
2. Supports UART
3. Adjustable Frequency Output
4. High Accuracy Detection
5. Supporting Power-OFF Memory Function
6. Supports Duty Cycle Adjustment

Specifications

• Model: XY-PWM
• Microcontroller IC: N76E003AT20
• Operating Voltage (VDC): 3.3 ~ 30
• Frequency Range: 1Hz~150KHz
• Frequency Accuracy: 2%
• Signal Load Capacity: output current can be around 5~30ma
• Output Amplitude: PWM amplitude is equal to supply voltage
• Operating Temperature (°C): -20 to 70
• Length (mm): 79
• Width (mm): 43
• Height (mm): 27

Package Includes:

1 x Digital PWM Generator with Display
