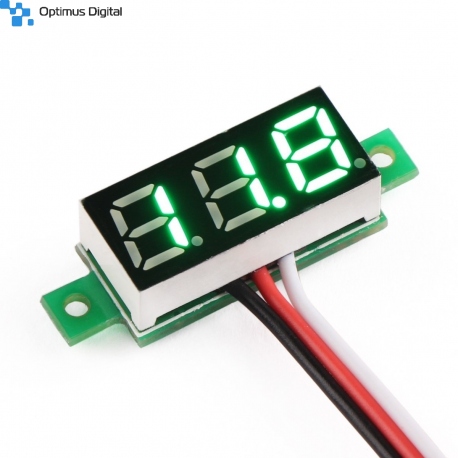

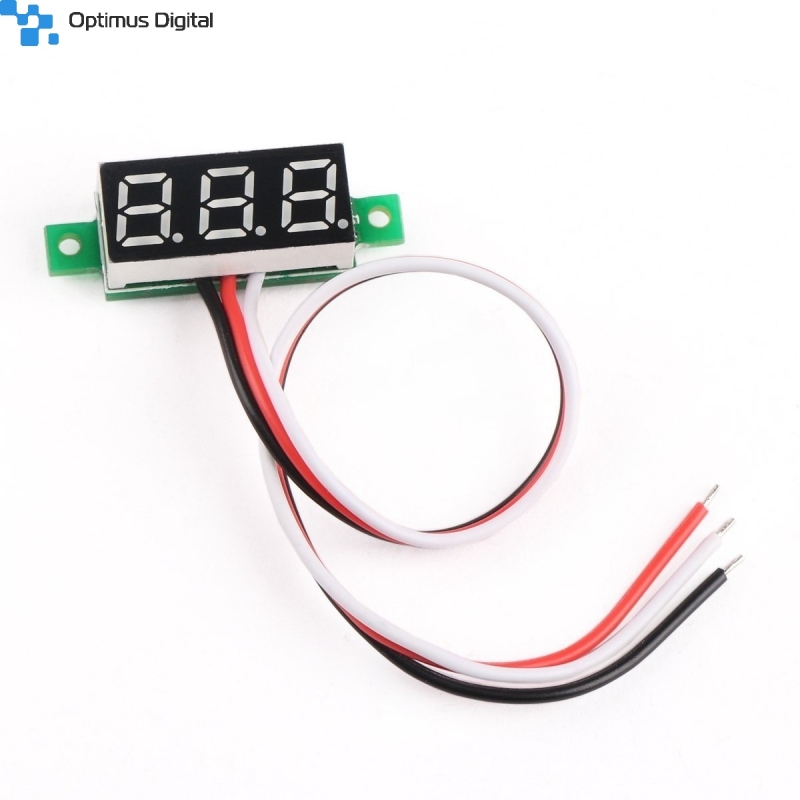

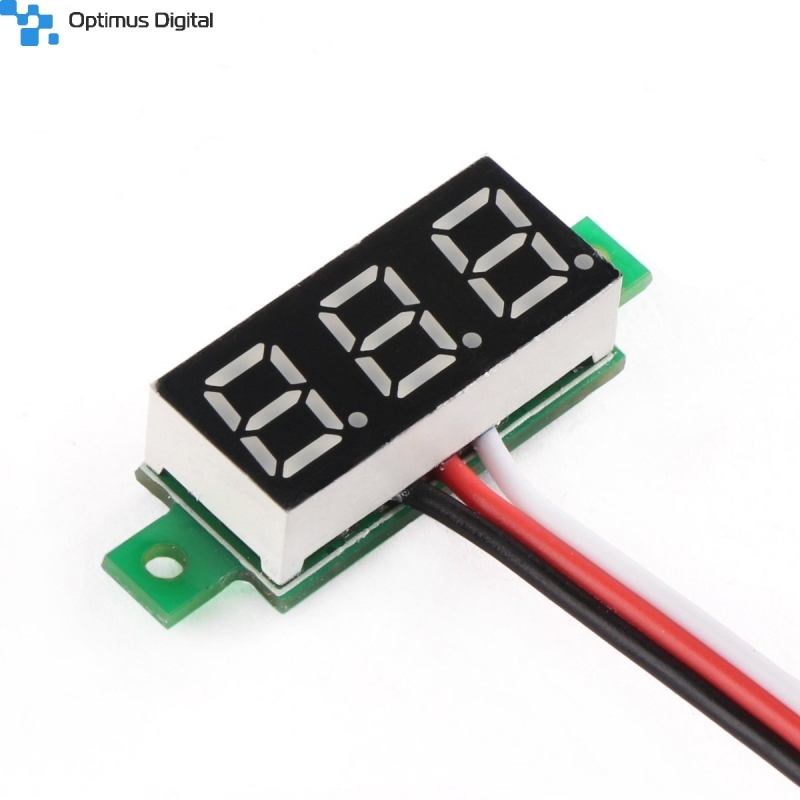

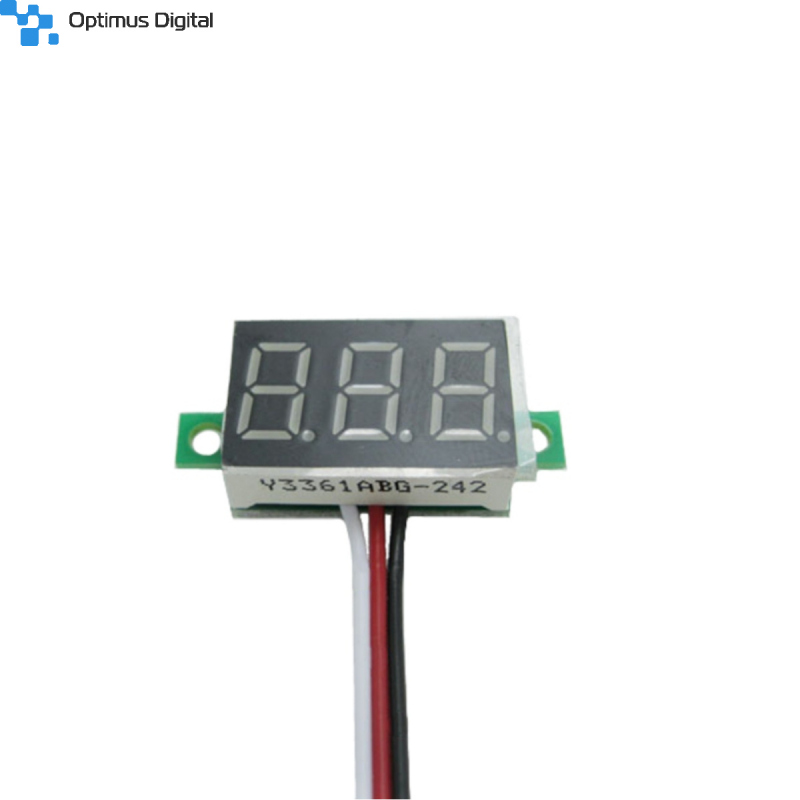

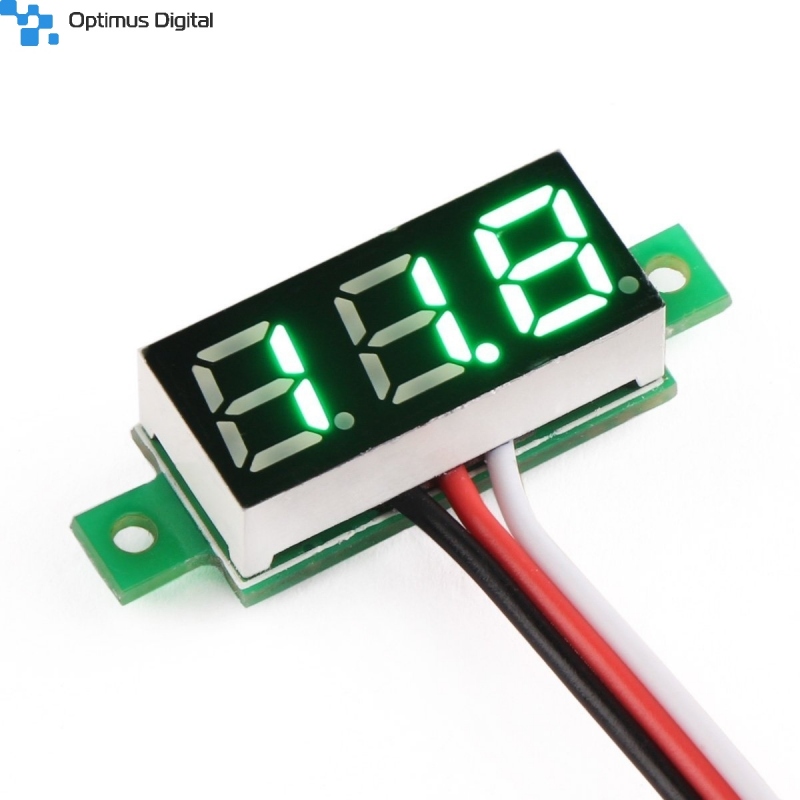

4.5 - 30 V Green Panel Voltmetre

0104110000025401

New product

This is a 0 - 30 V green panel voltmeter showing very good accuracy and can be easily mounted.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$2.64
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Overview

This product is a small voltmeter that can be mounted by two screws. It has a very small error (1%) and has a resolution of 0.1 V. It has maximum measured voltage of 30 V and is sufficient for most common applications.

This voltmeter is useful in building your own power source that consists of a power transformer and a power-down switching voltage.


Specifications

  • Measured Voltage: 0 to 30 V
  • Measured Voltage Resolution: 0.1 V
  • Voltage: 4.7 V to 30 V
  • Current consumption: 18 mA
  • Error: ±1%
  • Refresh rate: 300 ms
  • LED Display 0.36 "
  • Impedance: more than 100 K
  • Display color: green
  • Dimensions: 23 x 15 x 10 mm
  • Connections: Black - GND; Red - VCC supply; White - measured voltage
